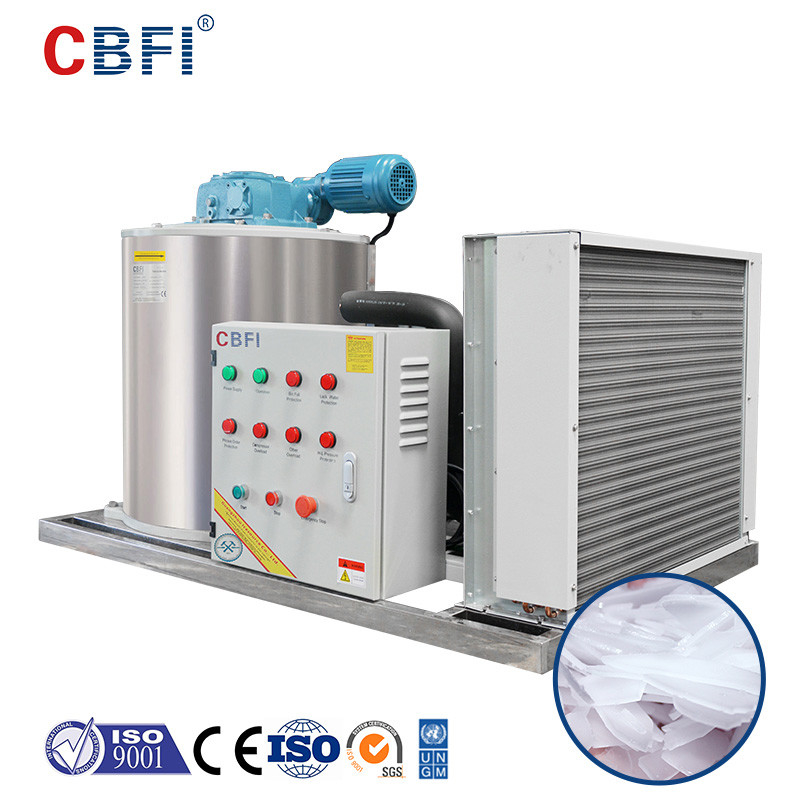

2 Tons Per Day Ice Flake Maker R404A Auto Control System

 CBFI BF2000 2 Tons Per Day Ice Flake Maker Used R404A

2 tons 24 hrs flake ice machine BF2000 is making flake ice 84 kg every hour, it is 185 lbs. The machine is making ice continuously. So it is recommended to equip an ice bin for it. Our machine has auto control system which is able to stop the machine when the ice bin is full.

 Main Features

●  Daily Capacity: 2 ton 24 hrs

●  Machine power supply: 3 phase industrial power supply

●  Due to the shape, flake ice has a large contact area with the cold collection, and the cooling effect is wonderful.

●  The flake ice has no sharp angles, which will not damage the surface of the cold collection and are very convenient for storage and tra nsportation.

● The ice maker is designed and manufactured according to the standard of the pressure vessel, and the equipment is firm, safe and reliable.

●  Optimized refrigeration system design, stable operation and low failure rate.

●  Ice temperature is very low to -8 degree

●  The thickness of the flake ice is 1mm-2mm, and it can be used directly without crushing.

 Detailed Images

 Product Configurations

Adapted integrated design to make the transportation easier and occupies less area to save your space.

Integrated control

We use Korean LG / LS to make the controlling integrated and more intelligent, you nee no long lecture use the machine.

High quality geared motor

The use of international famous brand geared motors, stable operation and good quality. It can effectively extend the life of the evaporator.



Product Parameters

Model	Ice Making Capacity	Capacity of Refrigeration	Machine Dimension	Weight of Machine
No.	Ton / 24 h	kw	L*W*H(mm)	KG
BF 1000	1	8.85	1300*960*1200	210
BF 2000	2	17.84	1500*1200*1350	360
BF 3000	3	24.15	1800*1250*1400	1000
BF 5000	5	35.1	2100*1250*1500	1100
BF 6000	6	45.85	2500*2040*2200	1100
BF 8000	8	52.7	2100*1250*1500	1300
BF 10000	10	76.1	2300*1750*1740	1500
BF 15000	15	110.9	3200*2100*2000	3200
BF 20000	20	151	3400*2200*2560	4200
BF 30000	30	180	3800*2300*2560	5000
BF 35000	35	214.2	4500*2300*2800	6000
BF 40000	40	226.1	7800*2100*3000	7500
BF 50000	50	268.1	5000*2300*3000	10000
BF 60000	60	278.4	5500*2300*3200	12000
Specifications For Flake Ice Machine
Working Conditions		Power Supply	380 V/ 50 Hz /3P, 220V/ 60Hz/3P , 460V/60Hz/3P
		Refrigerant	R22/R404A
		Cooling Way	Water Cooling/Air cooling / Evaporative Cooling
		Max. Ambient Temp.	+45℃
		Supply Water Temp.	+23℃ to 18℃
		Condenser Temp.	+40℃
		Noise	55 DB

The main reason for the good quality of the ice machine produced by our company is that the compressor, condenser, expansion valve, PLC controller and other important parts are imported. The equipment has good performance and strong anti-interference ability. The external environment has an impact on the output and ice. The quality of the product has little effect.A variety of models can meet the needs of customers at different levels.



About us



Our Services and FAQ

Our service
☺ Installing by the user:

We will tested and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.

☺ Installing by our engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready.
Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual
installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.

FAQ

1. Who are we?
We are based in Guangdong, China, start from 2010,sell to Domestic Market(19.00%),

Southeast Asia(16.00%),Africa(15.00%),Mid East(14.00%),South Asia(12.00%),South America(10.00%),
Eastern Asia(6.00%),Eastern Europe(4.00%),Oceania(4.00%). There are total about 101-200 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What can you buy from us?
Ice Block Machine,Ice Cube Machine,Ice Tube Machine,Ice Flake Machine,Cold Room

4. Why should you buy from us not from other suppliers?
We Guangzhou Icesource Refrigeration Equipment CO., LTD Specializes in innovating, designing, manufacturing various commercial and industrial ice machines and cold room with more than 10 years experience. Our Engineer department keep pursuing the newest technology.

5. What services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Cash;
Language Spoken:English,Chinese,Spanish



6. Are you add refrigerant in the ice machine?
Yes, our equipment is filled with refrigerant, and it can be used as long as it is connected to electricity and water.

7. Do you test the ice machine in your factory?
Yes, Our equipment will be tested twice before being put into use: factory inspection and operation test after installation at
the buyer's destination to ensure that we provide the best service to customers.In addition, our company can provide a complet set of solutions for the actual needs of customers. Creating value and fulfilling customers is our principle.

8. All your ice machine is based on 380V 50HZ power requirement? Do you have the right power requirement for aboard? Such as 440V 60HZ or 220V three phase that suitable for America?
Our ice machine and power, voltage can suitable for your country, please make the power requirement be clear in your order.
