Product Details:
|
| Block Ice Weight: | 5 Kg,10kg, 15kg, 20kg, 25kg, 50kg, 100kg, | Compressor: | / Copeland / Hanbell |
|---|---|---|---|
| Refrigerant: | R22 Or R404a | Power Supply: | 380V/50HZ/3P;220V/60HZ/3P... |
| Capacity: | 500 Kg To 100000 Kg | Ice Can Material: | Stainless Steel 304 Material |
| Warranty: | 1 Year | ||
| High Light: | Salt Water Ice Block Machine,R22 Ice Block Machine |
||
CBFI BBI200 20Tons Per Day Salt Water Ice Block Machine
20 ton block ice machine is always used to build a containerized block ice plant. The advantages are acceptable price, low power consumption and convenient to move.
Product Features
● Daily production: 20 tons per day.
● CE approved product
● Coil pipe evaporator is our invention patent, it has a better evaporating effect with longer lifespan.
● High power water agitator is used to replace the common water pump. The block ice machine is energy saving. Ice making power consumption had declined from 110kW·h to 74kW·h/ton.
● Agitator makes the brine flowing faster, so that shorten the ice frozen time and improve the refrigeration effect of the whole machine. And agitator is much harder to be broken than water pump.
● Ice making tank adopts 80mm thickness polyurethane insulation material. It has good effect in heat insulation.
| BBI200 Block Ice Machine Parameters | ||
| Name | Unit | Parameter |
|
Bitzer Compressor Parameter |
Model | 4GE-23 |
| Cooling Capacity(kW) | 33.9 | |
| Power(kW) | 14.05 | |
|
Condenser |
Model | WN-20 |
| Heat Exchange(kW) | 74.2 | |
| Condensing Temperature | Degree Celsius(℃) | 38 |
| Evaporating Temperature | Degree Celsius(℃) | -18 |
| Ambient Temperature | Degree Celsius(℃) | 32 |
| Water Temperature | Degree Celsius(℃) | 20 |
| Refrigerant | Ammonia R717 | |
| Voltage | V/P/HZ | 380/3/50 |
| Agitator | Power(kW) | 2.2 |
|
Cooling Tower |
Model | LX-30 |
| Power(kW) | 0.55 | |
|
Cooling Pump |
Model | GD65-19 |
| Power | 2.2 | |
| SS304 Ice Mold Dimension | L*W*H(mm) | Customized |
| Machine Dimension | L*W*H(mm) | Customized |
| Remarks |
Crane is not included. |
|
1. Cooling.
2. Food preservation.
3. Distance transportation.
4. Fresh keeping for aquatic products.
5. Ice factory of the ports and docks.
6. Special areas of cooling.

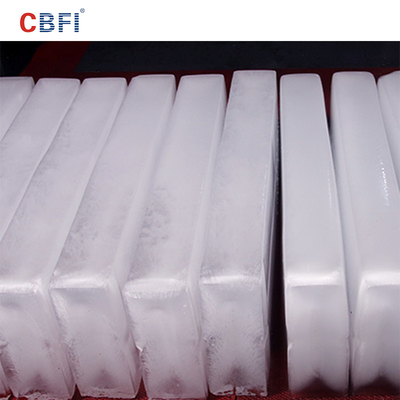

1. The size can be 5kg,10kg,25kg,50kg... or customized size.
2. Stainless Steel 304 materials making block ice clean.
3. Special groove decompress design increases service life.
3. Large touch area with brine leads to better heat exchange effect.
4. Hydraulic pipe bending technology make sure that the possibility of leakage possibility is tiny.
Why chooose CBFI Block Ice Maker Making Machine ?
1. More "fool" typed installation, less space needed and convenient to move.
2. Energy saving, ice making power consumption had declined from 110kW·h to 74kW·h/ton block ice.
3. Adopting coil pipe evaparator, no need worrying about ice forming inside the evaporator to break down it.
4. Using agitator with better heat exchange effect, no need worrying about the high cost for repairing the water pump.
Installation:
1). Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2). Installing by our engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready.
Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.
