Product Details:
|
| Capacity: | 1-50 Ton | Cooling Way: | Water Cooling/Air Cooling |
|---|---|---|---|
| Ice Diameter: | 22mm,28mm,35mm | Ice Length: | 30~55mm |
| Refrigerant: | R404a/R22 | Ice Making Cycle: | 16~22 Min |
| PLC: | Germany Siemens | Solenoid Valve: | Castel From Italy |
| High Light: | 50 Ton Edible Ice Tube Machine,Water Cooling Ice Tube Machine |
||

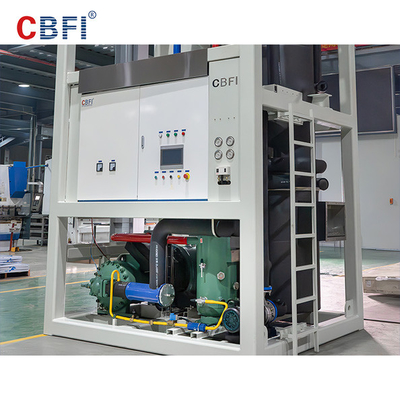

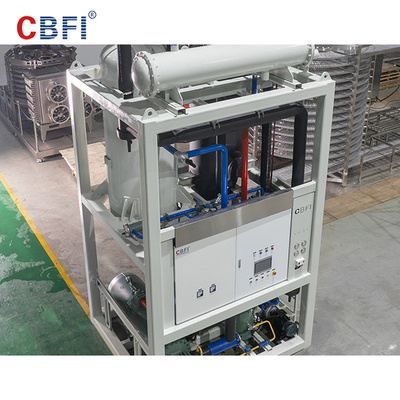

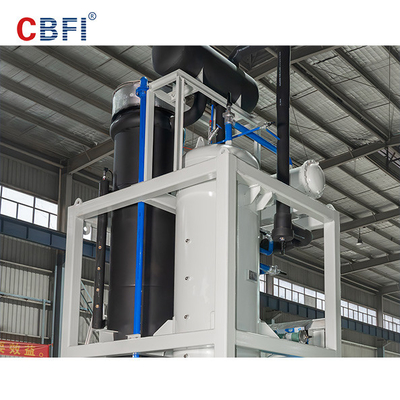

Best Service 1-50 Ton Edible Tube Ice Machine For Ice Making Plant
Introduction
Our company specializes in producing high-quality ice machines that are designed to meet the demanding needs of businesses in the food and hospitality industry. Our ice machines are built to provide consistently high-quality ice that is crystal clear, pure, and of an even thickness. We use a unique water system design that ensures that the ice produced by our machines is of the highest quality possible. Additionally, we've designed our machines to have a unique defrosting system that not only makes the process faster but also safer and more efficient. In this article, we'll explain in detail how our ice machines work and why they are the perfect choice for anyone who needs high-quality ice.
Water System Design
The water system design of our ice machines is what sets them apart from other machines on the market. We use a special water system design that ensures that the water used to make ice is of the highest quality possible. Our system uses a series of filters and purifiers to remove impurities and contaminants from the water. Our machines produce ice that is crystal clear, pure, and of an even thickness. The water system design is one of the key reasons why our ice machines are so highly regarded in the industry.
Defrost System Design
Our ice machines are also designed with a unique defrost system that makes the process of defrosting faster and more efficient. Traditional ice makers use a system that involves heating the evaporator, which can be dangerous and can cause damage to the machine. Our defrost system uses a hot gas that is circulated through the evaporator, which speeds up the defrost process while also minimizing the risk of damage to the machine. The result is a faster, safer, and more efficient defrosting process that helps to minimize downtime and ensure that the machine is always performing at its best.
Stainless Steel Auger Transport and Ice Storage System
Our ice machines also come with a stainless steel auger transport and ice storage system. This system is designed to make it easy to store and transport ice, making it perfect for businesses that need to move large quantities of ice quickly and efficiently. The system is designed to be manual or automatic, depending on the needs of the user. The stainless steel auger transport and ice storage system are an essential component of our ice machines, making them the perfect choice for businesses that need high-quality ice and a reliable way to transport it.
Product Parameters
|
Model
|
Daily output
(T/ 24 h)
|
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
|
TV10
|
1
|
4.1
|
0.25
|
1.1
|
1100*900*1780
|
900
|
|
|
TV20
|
2
|
7.44
|
0.25
|
1.5
|
1250*1000*1950
|
1200
|
|
|
TV30
|
3
|
10
|
0.55
|
1.5
|
1300*1100*2200
|
1500
|
|
|
TV50
|
5
|
19.9
|
0.55
|
2.5
|
1600*1400*2250
|
1800
|
|
|
Model
|
Daily output
(T/24 h) |
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
|
Main Host
|
Brine Tank
|
||||||
|
TV 100
|
10
|
27.9
|
1.5
|
4
|
1900*1600*1850
|
1200*1200*3390
|
3500
|
|
TV 100+
|
10
|
39.8
|
1.5
|
4
|
2400*1700*2000
|
1200*1200*3390
|
3700
|
|
TV 150
|
15
|
46.4
|
1.5
|
5
|
2700*2000*2200
|
1500*1200*4250
|
4250
|
|
TV 200
|
20
|
55.7
|
2.2
|
7.5
|
2800*2200*2500
|
1500*1200*4700
|
6500
|
|
TV 300
|
30
|
83.6
|
2.2
|
7.5
|
3100*2200*2500
|
1800*1500*5700
|
7200
|
|
TV 400
|
40
|
111.4
|
2.2
|
11
|
3900*2250*2500
|
2000*1500*6800
|
8300
|
|
TV 500
|
50
|
139.3
|
3.75
|
15
|
4500*2250*2500
|
2200*1800*7200
|
9500
|
|
1. Compressor brand: Bitzer /Franscold ; Refrigerant: R 22/ R 404 A; Cooling Method: water cooling / air cooling.
2. Power supply:voltage 380V/3P/50Hz(for non-standard voltage, unit configuration needs to be calculated separately ).
3. Operating conditions: T (water supply):20℃ , T (ambient): 32℃, T(condensing):40℃, T (evaporating):-12℃. 4. (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) 5. (The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there any technical change. ) |
|||||||
Conclusion
Our ice machines are the perfect choice for businesses that need high-quality ice that is crystal clear, pure, and of an even thickness. Our water system design ensures that the water used to make ice is of the highest quality possible, while our defrost system design makes the process of defrosting faster and more efficient. Additionally, our machines come with a stainless steel auger transport and ice storage system that makes it easy to store and transport ice quickly and efficiently. If you're in the market for an ice machine that is reliable, efficient, and produces high-quality ice, look no further than our company.
