Product Details:
|
| Compressor: | Germany / Germany Bock/ America Copeland | Expansion Valve: | Denmark Danfoss |
|---|---|---|---|
| Solenoid Valve: | Italy Castel | Electrical Components: | LG |
| Refrigerant: | R22/R404a | Ice Shape: | Tube Ice/ Shell Ice |
| Ice Diameter: | 22mm; 28mm; 35mm | Cooling System: | Air Cooled, And Water Cooled |
| High Light: | Commercial Tube Ice Making Machine,80 Tons Tube Ice Making Machine,Water Cooled Ice Tube Machine |
||

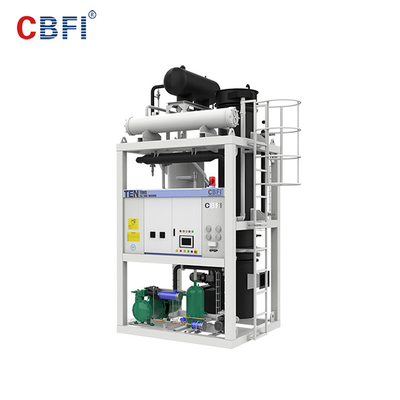

1 3 5 10 15 20 30 60 80 Tons Commercial Tube Ice Making Machine Water Cooled
CBFI® Tube Ice Machine R&D History and Certificates
1. Started tube ice machine production in 2011.
2. In 2015, 20 tons Freon tube ice machine was successfully developed
3. In 2019, Large Ammonia Tube Ice Machine
CBFI has CE certificate for tube ice machine, and three inventional patents including tube ice making machine itself, a tube ice cutter, and a new kind of tube ice cutter.
Tube Ice Machine Features
2. Daily Capacity : 350kg-80Tons

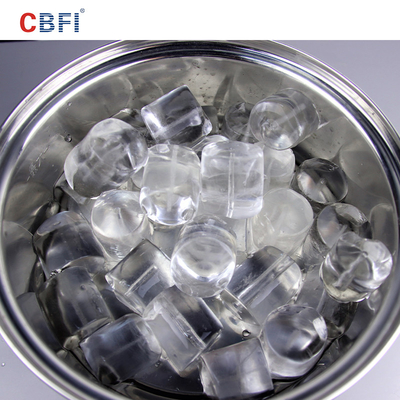

3. Tube Ice: Hollow or Solid. Ice tube is thick and crystal clear, and it takes a long time to melt or store.
4. The outer diameter of the ice tube is φ22mm, φ28mm, φ35mm, etc. and the length is between 25~45mm, and the inner diameter can be adjusted during the ice forming process usually between φ5~10mm.
Product Details
Under the action of three kinds of controller in the appeal, the evaporator offers the heat after ice-forming, so the ice falls down freely, at the same time, the ice is tangent to the ice cutter, it becomes the tubular shape ice, this is tube ice.
Product Parameters
|
Model
|
Daily output
(T/ 24 h)
|
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
|
TV10
|
1
|
4.1
|
0.25
|
1.1
|
1100*900*1780
|
900
|
|
|
TV20
|
2
|
7.44
|
0.25
|
1.5
|
1250*1000*1950
|
1200
|
|
|
TV30
|
3
|
10
|
0.55
|
1.5
|
1300*1100*2200
|
1500
|
|
|
TV50
|
5
|
19.9
|
0.55
|
2.5
|
1600*1400*2250
|
1800
|
|
|
Model
|
Daily output
(T/24 h) |
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
|
Main Host
|
Brine Tank
|
||||||
|
TV 100
|
10
|
27.9
|
1.5
|
4
|
1900*1600*1850
|
1200*1200*3390
|
3500
|
|
TV 100+
|
10
|
39.8
|
1.5
|
4
|
2400*1700*2000
|
1200*1200*3390
|
3700
|
|
TV 150
|
15
|
46.4
|
1.5
|
5
|
2700*2000*2200
|
1500*1200*4250
|
4250
|
|
TV 200
|
20
|
55.7
|
2.2
|
7.5
|
2800*2200*2500
|
1500*1200*4700
|
6500
|
|
TV 300
|
30
|
83.6
|
2.2
|
7.5
|
3100*2200*2500
|
1800*1500*5700
|
7200
|
|
TV 400
|
40
|
111.4
|
2.2
|
11
|
3900*2250*2500
|
2000*1500*6800
|
8300
|
|
TV 500
|
50
|
139.3
|
3.75
|
15
|
4500*2250*2500
|
2200*1800*7200
|
9500
|
|
1. Compressor brand: Bitzer /Franscold ; Refrigerant: R 22/ R 404 A; Cooling Method: water cooling / air cooling.
2. Power supply:voltage 380V/3P/50Hz(for non-standard voltage, unit configuration needs to be calculated separately ).
3. Operating conditions: T (water supply):20℃ , T (ambient): 32℃, T(condensing):40℃, T (evaporating):-12℃. 4. (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) 5. (The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there any technical change. ) |
|||||||
Why Choose Us?
Superior R&D team
1. latest technology on the refrigeration system which reduce the electricity consumption
2. special design on the ice defrosting
3. CBFI's unique tube ice machine evaporator process
4. special design for the ice cutter.
Mature pre-sales and after-sales service
1. It can make different size tube ice.
2. Localized after-sales service in some countries.
3. Provide Installation or After-sales Service Global Wide.
Successful Project
CBFI Edible Tube lce Machine, has exported to many countries and regions and got good reputation fromcustomers in domestic and abroad !
