Product Details:
|
| Ice Shape: | Ice Block | Block Ice Machine Type: | Automatic Block Ice Maker Machine |
|---|---|---|---|
| Solenoid Valve: | International Famous Brands | Automatic Block Ice Machine Capacity: | 1-30tons Per Day |
| Block Ice: | More Clean And Sanitary | Material: | Stainless Steel 304 |
| Specification: | Large Medium Small | Refrigerant: | R404A/R507A |
| High Light: | Commercial Block Ice Machine,Seafood Block Ice Machine |
||

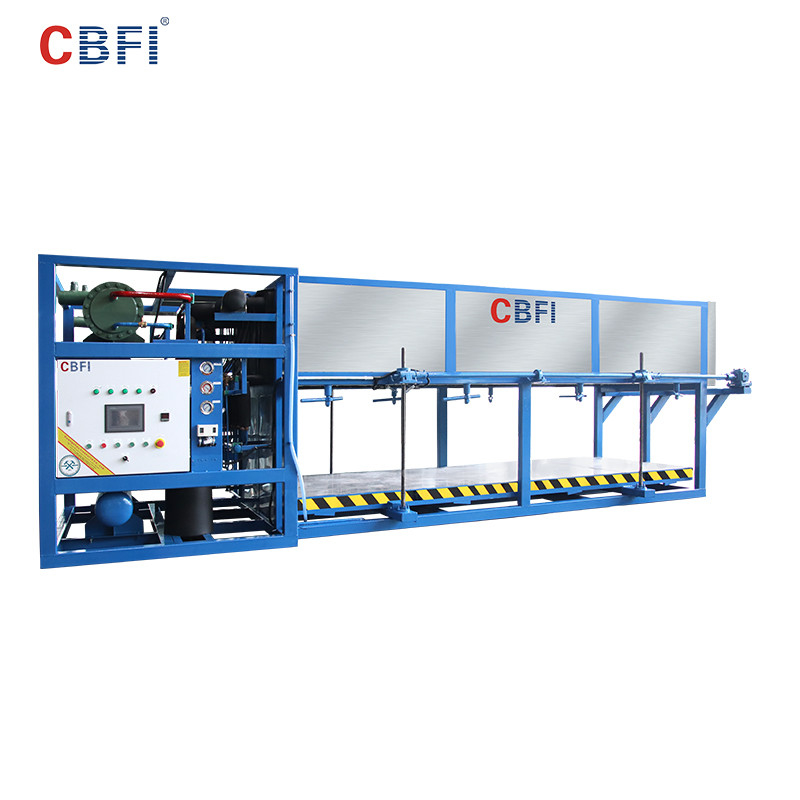

Seafood Fishery Automatic Big Commercial Approved Block Ice Machine
Ice brick machine is one of the ice making machines, which can be divided into direct cooling ice brick machine and salt water ice brick machine. The ice cubes produced are the largest in size among ice products, with small contact area with the outside world, and are not easy to melt. It can be crushed into various forms of ice according to different requirements. It is suitable for ice carving, ice storage and sea transportation, sea fishing, etc. After crushing, it can be used in all places where ice is used. However, after being crushed, the ice will partially melt and the ice volume will be lost. Ice can be divided into transparent ice and milky white ice.
Advantages of direct cooling ice block machine:
1. The operation cost is saved. The ice maker in the brine tank needs to replace the brine regularly, and the ice mold is prone to corrosion after being soaked in brine for a long time. Therefore, the operation cost of the direct cooling ice machine is lower.
2. Save labor costs. There is no aerial crane for the direct cooling ice brick machine, so no special operation is required. From adding water to discharging ice, it is automatic, so one person can operate the whole set of equipment!
3. More space is saved. Direct cooling ice brick machine does not need aerial crane or salt water tank. There is no need for a large workshop site.
4. The ice is clean and sanitary. The direct cooling ice brick machine makes ice directly without contact with salt water. Therefore, compared with the salt water pool ice brick machine, the direct cooling ice brick machine produces ice cubes that meet the food standard, and the ice cubes have a wider application range, which can bring a wider market to the ice factory.
5. Power saving. The principle of the direct cooling ice machine is that the refrigerant directly exchanges heat with the water in the mold to directly absorb the heat of the water in the mold. Compared with traditional salt water ice machine, salt water is not needed! Therefore, the direct cooling ice maker saves more power than the salt water tank ice maker.
6. The installation and transportation are more convenient. The direct cooling bar ice machine does not need to build a salt pond and install auxiliary equipment such as aerial cranes. The installation cycle is short and the construction is simple.
Direct Cooling Block Ice Machine Parameters
|
Direct Cooling Block Ice Machine Parameters
|
|||||||
|
No.
|
Cooling Capacity
(kw) |
Power
(kw) |
Lift Motor
(kw) |
Weight of Ice (kg)
|
Ice Size
|
Machine Size
|
|
|
L*W*H (mm)
|
L*W*H (mm)
|
||||||
|
ABI 10
|
12.02
|
4.22
|
2.2
|
5
|
120*100*500
|
2600*1100*2000
|
|
|
10
|
240*100*500
|
2600*1100*2000
|
|||||
|
ABI 20
|
22.9
|
7.7
|
3
|
5
|
120*100*500
|
2700*1510*2000
|
|
|
10
|
240*100*500
|
2700*1510*2000
|
|||||
|
ABI 30
|
30.9
|
10.33
|
4
|
10
|
240*100*500
|
3100*1650*2000
|
|
|
15
|
280*120*500
|
3400*1725*2000
|
|||||
|
ABI 50
|
61.8
|
20.5
|
5.5
|
20
|
260*120*730
|
4350*2310*2250
|
|
|
20
|
320*120*730
|
4500*2165*2250
|
|||||
|
No.
|
Cooling Capacity
(kw) |
Power
(kw) |
Lift Motor
(kw) |
Weight of ice (kg)
|
Ice Size
|
Machine Size
|
|
|
L*W*H (mm)
|
Compressor unit L*W*H (mm)
|
Evaporator L*w*H (mm)
|
|||||
|
ABI 100
|
95.8
|
32.22
|
7.5
|
25
|
320*120*730
|
6450*2600*2250 (one-piece)
|
|
|
11
|
30
|
310*150*730
|
2400*1700*2000
|
4900*2110*2250
|
|||
|
ABI 150
|
142.4
|
47.8
|
11
|
30
|
310*150*730
|
2950*2000*2250
|
5550*2460*2250
|
|
40
|
410*150*730
|
2950*2000*2250
|
5550*2460*2250
|
||||
|
ABI 200
|
185.4
|
61.5
|
15
|
40
|
410*150*730
|
3025*2200*2250
|
6800*2460*2600
|
|
50
|
350*180*950
|
3025*2200*2250
|
3800*2560*2600
|
||||
|
ABI 300
|
249.9
|
85.5
|
22.5
|
40
|
410*150*730
|
3325*2200*2500
|
6800*2460*2250*3
|
|
50
|
350*180*950
|
3325*2200*2500
|
6800*2460*2250*3
|
||||
|
1.Operating conditions: ambient temperature 32℃, water supply temperature 20℃. Due to the continuous updating of product technology, if the data is changed, it will be reflected in the quotation plan. The above data is for reference only, which is subject to actual conditions.
2.The above information is according to water cooled condenser spec. Size of machine is without cooling tower, cooling tower usually install in the outside.
3.Operating condition: water temperature: 23 Cent degree, evaporate temperature:-12 Cent degree, condensing temperature 40 Cent degree, reference valve under 50 Hz power supply. Real production of machine will have a little change according to change of water temperature and ambient temperature.
|
|||||||
Direct cooling block ice machine Application fields:
Ice factories in ports and wharves, food processing, aquatic product preservation and cooling, long-distance transportation, aquatic products and food preservation, cooling and cooling in special fields, ice sculpture ornamental use, food ice field, etc. The size can be customized according to demand.
