Product Details:
|
| Capacity: | 2Tons/Day | Machine Power Supply: | 3 Phase Industrial Power Supply |
|---|---|---|---|
| Controlling System: | PLC | Ice Shape: | Ice Block |
| Ice Size: | 20kg:260*120*730mm/25kg:320*120*730mm | Refrigerant: | R507 Or R404a |
| Cooling Way: | Water / Air Cooled Condenser | Power Supply: | 220/380/440V/~50/60Hz~3P |
| High Light: | Small Capacity Ice Block Making Machine,2 Tons Ice Block Making Machine |
||

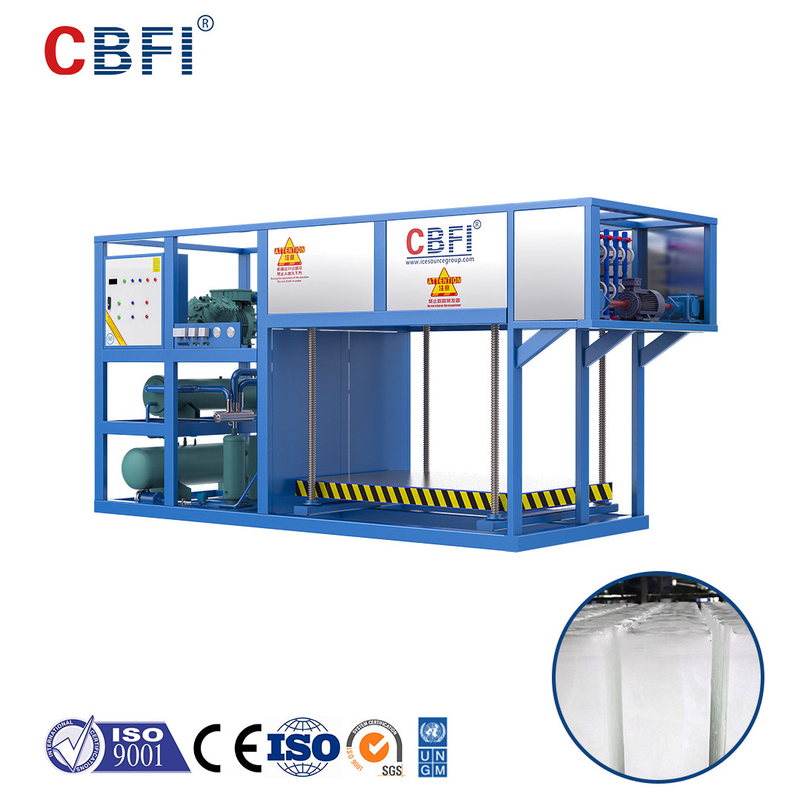

Small Capacity Directly Cooling System Ice Block Making Machine 2Tons/Day
The direct cooling block ice machine adopts the ice-making principle that the refrigerant directly enters the evaporator and water for heat exchange. It directly evaporates and makes ice without a central heat transfer medium, which avoids the energy loss caused by the use of refrigerant for heat exchange. You bring excellent work efficiency. Greatly increased heat transfer power. The thermal conductivity of aluminum is 3.2 times that of steel, the weight is only 1/3 of steel, and it will not rust. After repeated tests, it saves more than 30% energy than traditional ice machines; and because no intermediate cooling medium such as salt water is needed, the ice making process is pollution-free. Under the premise that the water supply reaches drinking water, the ice cubes can meet the edible standard requirements, breaking through the large-scale ice machine. Block machine inedible puzzle.
Direct cooling ice block ice machine main features
1. Daily production capacity: 2 tons and 24 hours
2. Machine power supply: three-phase industrial power supply
3. PLC control system, very easy to use.
4. Automatic operation, save your labor
5. Compact design to save on your area needs.
6. Direct cold block ice machine is simple to operate, convenient transportation, low cost. Because it is directly cooled, the ice cube is hygienic, clean and edible. Compared to other types of products, no saline use and no ice contamination issues.
7. The direct cold block ice machine uses fresh water to make ice, and the water is directly frozen into ice. No other items need to be added, just water and electricity to make ice.
Choose a good direct cooling block ice machine

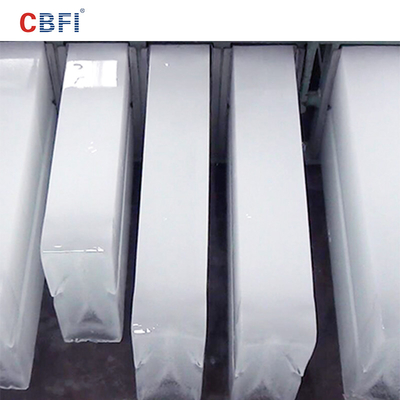

1. Selection of ice cubes: choose the same size as the ice cubes sold locally.
2. Machine configuration: Mainly equipped with compressors, condensers, refrigeration accessories, electronic control components, although the price of general well-known brand accessories is a little higher, but hundreds of thousands of equipment should not be saved or not. It is easy to use and stable. reason.
3. Evaporator: Aluminum plate evaporators are generally produced by the manufacturers themselves. As long as you know more about the production process, heat preservation, lifting system, and structure, you can choose what you are satisfied with.
4. Function: the functional package of the equipment, the degree of automation of the equipment, because most of the direct cooling block ice machines of most brands are actually manual in many places, so the automatic one must be better, the humanization of the control system, and the convenience of operation, we It is possible to understand in depth.
Direct Cooling Block Ice Machine Parameters
|
Direct Cooling Block Ice Machine Parameters
|
|||||||
|
No.
|
Cooling Capacity
(kw)
|
Power
(kw)
|
Lift
Motor
(kw)
|
Weight
of Ice (kg)
|
Ice Size
|
Machine Size
|
|
|
L*W*H (mm)
|
L*W*H (mm)
|
||||||
|
ABI 10
|
12.02
|
4.22
|
2.2
|
5
|
120*100*500
|
2600*1100*2000
|
|
|
240*100*500
|
2600*1100*2000
|
||||||
|
ABI 20
|
22.9
|
7.7
|
3
|
5
|
120*100*500
|
2700*1510*2000
|
|
|
10
|
240*100*500
|
2700*1510*2000
|
|||||
|
ABI 30
|
30.9
|
10.33
|
4
|
10
|
240*100*500
|
3100*1650*2000
|
|
|
15
|
280*120*500
|
3400*1725*2000
|
|||||
|
ABI 50
|
61.8
|
20.5
|
5.5
|
20
|
260*120*730
|
4350*2310*2250
|
|
|
25
|
320*120*730
|
4500*2165*2250
|
|||||
|
No.
|
Cooling Capacity
(kw) |
Power
(kw) |
Lift
Motor
(kw)
|
Weight
of ice (kg)
|
Ice Size
|
Machine Size
|
|
|
L*W*H (mm)
|
Compressor unit L*W*H (mm)
|
Evaporator L*w*H (mm)
|
|||||
|
ABI 100
|
95.8
|
32.22
|
7.5
|
25
|
320*120*730
|
6450*2600*2250 (one-piece)
|
|
|
11
|
30
|
310*150*730
|
2400*1700*2000
|
4900*2110*2250
|
|||
|
ABI 150
|
142.4
|
47.8
|
11
|
30
|
310*150*730
|
2950*2000*2250
|
5550*2460*2250
|
|
40
|
410*150*730
|
2950*2000*2250
|
6800*2460*2600
|
||||
|
ABI 200
|
185.4
|
61.5
|
15
|
40
|
410*150*730
|
3025*2200*2250
|
6800*2460*2600
|
|
50
|
350*180*950
|
3025*2200*2250
|
6800*2460*2250*3
|
||||
|
ABI 300
|
249.9
|
85.5
|
22.5
|
40
|
410*150*730
|
3325*2200*2500
|
6800*2460*2250*3
|
|
50
|
350*180*950
|
3325*2200*2500
|
6800*2460*2250*3
|
||||
|
1. Operating conditions: ambient temperature 32℃, water supply temperature 20℃. Due to the continuous updating of product technology, if the data is changed, it will be reflected in the quotation plan. The above data is for reference only, which is subject to actual conditions.
2. The above information is according to water cooled condenser spec. Size of machine is without cooling tower, cooling tower usually install in the outside.
3. Operating condition: water temperature: 23 Cent degree, evaporate temperature:-12 Cent degree, condensing temperature 40 Cent degree, reference valve under 50 Hz power supply. Real production of machine will have a little change according to change of water temperature and ambient temperature.
|
|||||||
Block ice machine application
Port and wharf ice factory, aquatic products preservation, cooling, long-distance transportation, fishery, food preservation, special area cooling, ice carving.
