Product Details:
|
| Product Name: | Double Spiral Quick Freezer | Structure: | Double Spiral |
|---|---|---|---|
| Defrost Method: | Water Defrost | Cooling Method: | Freon |
| Product Material: | 304 Stainless Steel | Production Capacity: | 200kg/h~ 10000kg/h |
| Spiral Cage Diameter: | 1200mm~4550mm | Conveyor Width: | 400~1372mm (16~54 Inches) |
| High Light: | Industrial Double Spiral Freezer,Quick Double Spiral Freezer |
||

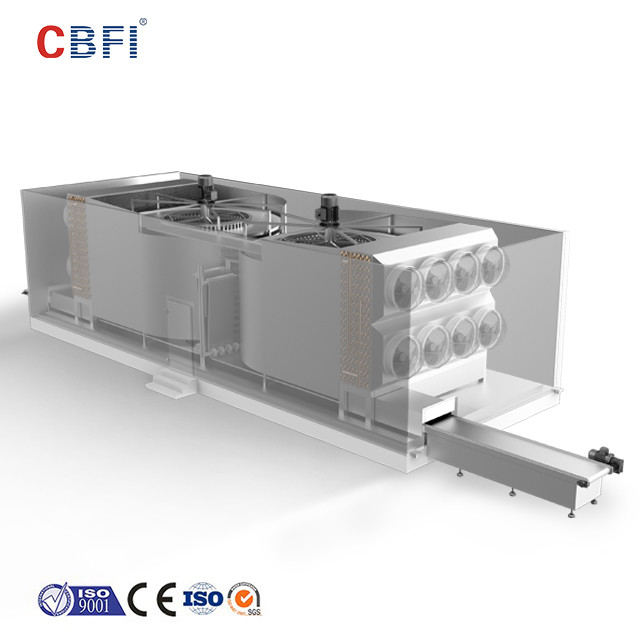

Economical Spiral Freezer/Industrial Seafood Shrimp Fish Iqf Spiral Tunnel Quick Freezer
Quick freezing, the pre-processed food is placed in a low-temperature quick-freezing device, quickly frozen, and the core temperature of the food is reduced from -1 °C to -5 °C within 30 minutes through the maximum ice crystal formation zone, and the ice crystal diameter formed is less than 100 μm. The core temperature of the quick-frozen food must reach -18°C or less.
Product details
Refrigerant supply method
Provide hygienic evaporator, using advanced liquid supply method, heat exchange efficiency is more than 20% higher than traditional forms
Annular duct design
Symmetrical, smooth annular air duct design enhances heat transfer effect.

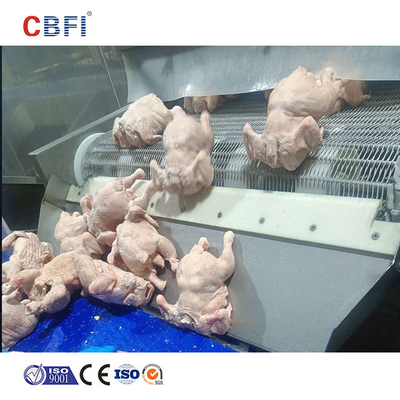

Stainless steel mesh belt
It can be equipped with freezer professional stainless steel mesh belt, plastic mesh belt and other conveyor devices.
Stable and reliable quality
The warehouse body adopts the library plate manufactured by the fully imported library plate production line, and the quality is stable and reliable.
Intelligent control system
Equipped with intelligent control system, equipped with automatic detection and alarm light device, convenient for operation and maintenance.
Features
1. High-strength mesh belt made of imported special equipment, SUS304 food-grade stainless steel, conveyor belt with flange on both sides.
2. The loose library body greatly facilitates cleaning, maintenance and overhaul.
3. The internal components fully meet the hygienic requirements for export food (HACCP) processing.
4. Long-life design, assembled internal structure (different from welded structure), easy to maintain and maintain.
5. Reliable transmission control made of all stainless steel materials, advanced technology of European BBY company.
6. The symmetrical and smooth annular air duct design inside the equipment, the inlet and outlet do not run cold.
7. High efficiency evaporator (efficiency is 25% higher than ordinary evaporator), super large fins with air turbulence structure, produced by the latest stamping process.
8. The stainless steel material of the library floor is made of an integral 3mm thick bottom surface, which will never leak without any risk of freezing and cracking the bottom plate.
9. The main electrical control components are produced by the French Schneider Electric Company.
10. Equipped with European standard waterproof stainless steel control cabinet.
11. The secondary conveyor tension reducer adopts SEW brand products, which has high efficiency and long life.
12. With hundreds of production experience of this type of equipment, very familiar with the requirements for freezing various products.
Program technical parameters
| Structure type | Double Spiral | Cage diameter |
φ3000 |
Helical layers | 15*2 | In and out time | 20~100min |
| Belt width | 910mm | Effective network width | 840mm | Total length of mesh belt | 498m | Currency height | 100mm |
| Installed capacity | 72kw | Cooling capacity | 370kw | Chamber temperature | -35℃ | Library board thickness | 120mm |
| Defrost method | Water melting frost | Refrigeration | -42℃/+35℃ | ||||
| Library size | 16300*6300*3800mm | In and out rack | Feeding frame 1600mm, discharging frame 1000mm | ||||
