Product Details:
|
| Capacity Daily: | 5 Tons | Cooling Way: | Evaporative Cooling |
|---|---|---|---|
| Power Supply Form: | 220/380/440V/~50/60Hz~3P | Key Selling Points: | Automatic |
| Refrigerant: | R507 Or R404a | Cooling Method: | Water / Air Cooled Condenser |
| Ice Size: | 30kg:310*150*730mm / 40kg:410*150*730mm | Core Components: | Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gear |
| High Light: | 5 Tons Ice Block Making Machine,Evaporative Cooling Ice Block Making Machine |
||

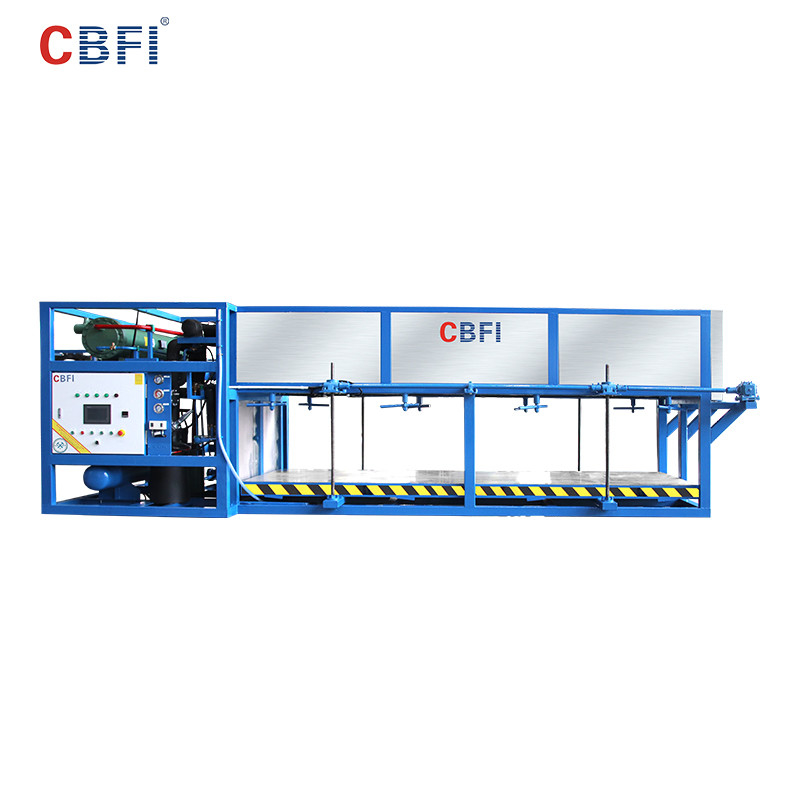

Heavy duty 5 Tons Industrial Direct Cooling Ice Block Making Maker Machine for Sale Philippines Myanmar Indonesia
Direct cooling ice block machine is a kind of ice block making equipment. ltsevaporator is made from high efficient thermally conductive aluminum alloy,which exchanges heat with refrigerant directly and efficiently, with low freezingtemperature, high speed of ice making and low speed of ice melting. The ma-chine has high degree of automation, supplying water automatically, makingice automatically, and deicing automatically without any manual operation.What's more, it operates safely and is eco-friendly with no need for anybrine or changing of ice mold which has long service time.And the ice is cleanand healthy, reaching edible standard. In addition, it covers little space owingto its modular design and is easy to install and operate for it can make iceonce being connected to water source and electricity.
Equipment Parameter
| Direct Evaporating Type Ice Block Machine Parameters | |||||||
| Model | Cooling Capacity /KW | Power /KW | Lift Motor /KW | Weight of Ice /KG | Ice Size (L*W*H)/MM | Machine Size | |
| ABI10 | 12.02 | 4.22 | 2.2 | 5 | 120*100*500 | 2600*1100*2000 | |
| 10 | 240*100*500 | 2600*1100*2000 | |||||
| ABI20 | 22.9 | 7.7 | 3 | 5 | 120*100*500 | 2700*1510*2000 | |
| 10 | 240*100*500 | 2700*1510*2000 | |||||
| ABI30 | 30.9 | 10.33 | 4 | 10 | 240*100*500 | 3100*1650*2000 | |
| 15 | 280*120*500 | 3400*1725*2000 | |||||
| ABI50 | 61.8 | 20.5 | 5.5 | 20 | 260*120-730 | 4350*2310*2250 | |
| 25 | 320-120*730 | 4500*2165-2250 | |||||
| Model | Cooling Capacity /KW | Power /KW | Lift Motor /KW | Weight of Ice /KG | Ice Size (L*W*H)/MM | Machine Size (L*W*H)/MM | |
| Compressor unit | Evaporator | ||||||
| ABI100 | 95.8 | 32.22 | 7.5 | 25 | 320*120*730 | 6450*2600*2250 (One-piece) | |
| 11 | 30 | 310*1SO-73O | 2400*1700*2000 | 4900*2110-2250 | |||
| ABI150 | 142.4 | 47.8 | 11 | 30 | 310*150*730 | 2950*2000*2250 | 5550*2460*2250 |
| 40 | 410*150-730 | 2950*2000*2250 | 5550*2460*2250 | ||||
| ABI200 | 185.4 | 61.5 | 15 | 40 | 410*150*730 | 3025*2200*2250 | 6800*2460*2600 |
| 50 | 350*180*950 | 3025*2200*2250 | 6800*2560*2600 | ||||
| ABI300 | 249.9 | 85.S | 22.5 | 40 | 410*150-730 | 3325*2200*2500 | 6800*2460*2250*3 |
| 50 | 350*180*950 | 3325*2200*2500 | 6800*2560*2600*3 | ||||
|
1. Operating conditions: ambient temperature 32 °C. water supply temperature 20 °C. Due to the continuous updating of product technology, if the data is changed, it will be reflected in the quotation plan. The above data is for reference only, which is subject to actual conditions. 2. (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) 3. (The final interpretation of the above metioned parameters is in Icesource, there will be no further notice, if there is any technical change.) |
|||||||
Block Ice Machine Advantage
1. Low loss and high output, fast ice making, beyond imagination, saving time, effort, worry and money
2. Branded compressor, making ice one step faster/improving work efficiency.
3. Fast deicing Ice spring direct cooling block ice machine adopts fast deicing technology, the ice cubes are detached from the reality faster, the ice cubes melt less, and the actual output of ice is higher.
4. On-demand customization, customized ice cube size, ice production capacity, and machine configuration are all available, and can be designed and manufactured according to customer requirements.
5. Fully automatic control system, adopts PLC automatic control, has the functions of limit protection of lifting platform, automatic water addition, automatic deicing, automatic switch on and off, automatic fault alarm and other functions, as well as high and low pressure protection of compressor, oil shortage protection, relative Sequence protection, compressor module protection, motor overload protection and other conventional functions.
6. There are many types of products. Bingquan direct cooling block ice machines can be divided into small tonnage of 1/2/3/5 tons and large tonnage of 10/15/20/30 tons. There is always one that meets your needs.
