Product Details:
|
| Daily Capacity: | 2 Tons | Ice Shape: | Flake Ice |
|---|---|---|---|
| Ice Storage Capacity: | Customized | Application: | Industrial Or Commercial |
| Ice Maker: | Food Grade Material | Cooling Way: | Water Cooling/ Air Cooling/ Evaporative Cooling |
| Refrigerant: | R507 / R404a | PLC: | Germany Siemens |
| High Light: | Fully Automatic Portable Flake Ice Machine,2 Tons Flake Ice Machine |
||

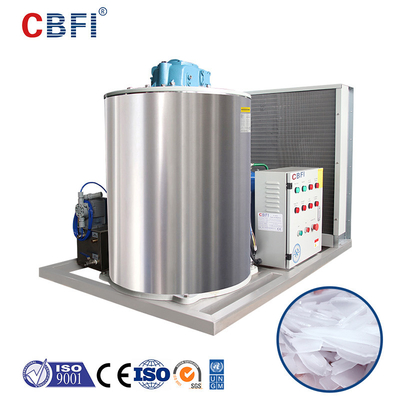

2 Tons Fully Automatic Portable Flake Ice Machine For Fishery Small Industry Machines
Product Description
BF Series Flake Ice Maker Machine produces flake ice -- the top choice among many industries. BF Series Flake Ice Maker Machine has two types: fresh water type and seawater type. The daily capacity can be applied from 500kg to 60tons in 24 hours. Customers can choose different types according to their sites and water supply quality.
Fishery, food fresh keeping in supermarket, store, food market, poultry processing, food processing, chemical processing, concreting project, hospital & medical care
Ice thickness: 1mm to 2mm
Daily capacity: 1 ton,2 tons,3tons,5 tons …60 tons.
Flake ice machine type: use fresh water / sea water , use on land / use on vessel.
Evaporator material: fresh water type: internal carbon steel, external 304 stainless steel, sea water: both internal and external are 316 stainless steel.
Ice output: making ice continually.
Basic Parameter
|
Model
|
Ice Making Capacity
|
Capacity of Refrigeration
|
Machine Dimension
|
Weight of Machine
|
|
No.
|
Ton / 24 h
|
kw
|
L*W*H(mm)
|
KG
|
|
BF 1000
|
1
|
8.85
|
1300*960*1200
|
210
|
|
BF 2000
|
2
|
17.84
|
1500*1200*1350
|
360
|
|
BF 3000
|
3
|
24.15
|
1800*1250*1400
|
1000
|
|
BF 5000
|
5
|
35.1
|
2100*1250*1500
|
1100
|
|
BF 6000
|
6
|
45.85
|
2500*2040*2200
|
1100
|
|
BF 8000
|
8
|
52.7
|
2100*1250*1500
|
1300
|
|
BF 10000
|
10
|
76.1
|
2300*1750*1740
|
1500
|
|
BF 15000
|
15
|
110.9
|
3200*2100*2000
|
3200
|
|
BF 20000
|
20
|
151
|
3400*2200*2560
|
4200
|
|
BF 30000
|
30
|
180
|
3800*2300*2560
|
5000
|
|
BF 35000
|
35
|
214.2
|
4500*2300*2800
|
6000
|
|
BF 40000
|
40
|
226.1
|
7800*2100*3000
|
7500
|
|
BF 50000
|
50
|
268.1
|
5000*2300*3000
|
10000
|
|
BF 60000
|
60
|
278.4
|
5500*2300*3200
|
12000
|
|
Specifications For Flake Ice Machine
|
||||
|
Working Conditions
|
Power Supply
|
380 V/ 50 Hz /3P, 220V/ 60Hz/3P , 460V/60Hz/3P
|
||
|
Refrigerant
|
R507/R404A
|
|||
|
Cooling Way
|
Water Cooling/Air cooling / Evaporative Cooling
|
|||
|
Max. Ambient Temp.
|
+45℃
|
|||
|
Supply Water Temp.
|
+23℃ to 18℃
|
|||
|
Condenser Temp.
|
+40℃
|
|||
|
Noise
|
55 DB
|
|||
Related Products
Ice bin: for small capacity(Less than 3 tons) flake ice machine to store flake ice temporary
Cold room: for storing ice and keep the ice in high quality(for capacity from 3 to 25 tons machine)
Successful Case
