Product Details:
|
| Type: | Spiral Freezer | Cooling Capacity: | 370kW |
|---|---|---|---|
| Structure: | Double Spiral | Cooling Condition: | -42℃/+35℃ |
| In And Out Time: | 20~100min | Voltage: | 380v,3ph, 50hz |
| Storage Temperature: | -35℃ | Defrost Method: | Water Defrost |
| High Light: | Iqf Double Spiral Freezer,Double Spiral Freezer Sea Food Making |
||

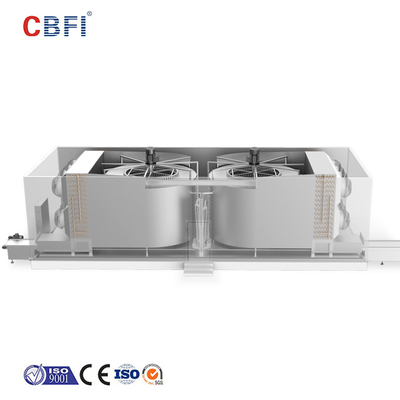

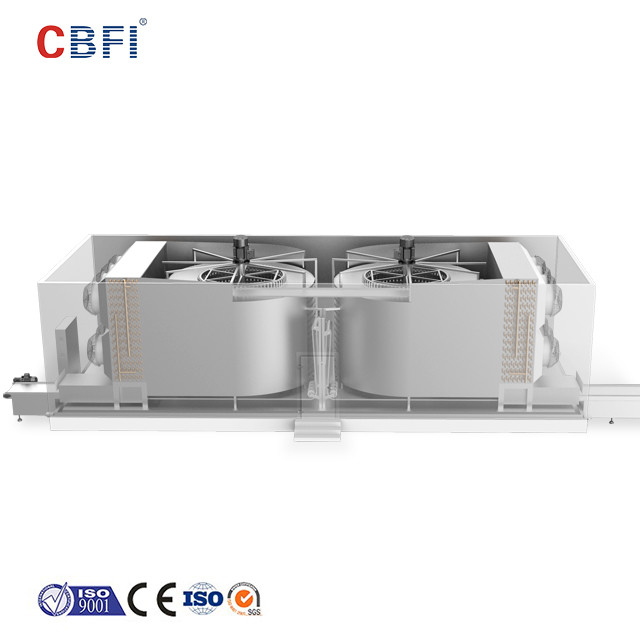

Huge Capacity Sea Food Making And Processing Double Spiral Iqf Freezer Freezing Machine
The low-tension spiral cooling tower device is suitable for free cooling scenarios in the exposed air contact state, and is common in frozen products that need to be cooled naturally from higher temperatures to room temperature, such as freshly baked bread, hot pastries and egg tarts, burgers, fried foods and other frozen products.
The spiral cooling tower device is divided into two types of structure: single type and double type, of which the single type structure includes two types: low inlet high output and high input and low output; The double-type structure is generally a low-in-low-out type.
The above three types are convenient for the overall layout of the production process of the front and rear sets of the customer's workshop, and meet the multi-faceted needs of customers.
The products are widely used
Noodles, fruits and vegetables, fresh meat, fish and shrimp, cold chain logistics, medicine
Demand customization
1. All equipment is designed according to different frozen products and customer requirements
2. Production capacity from 200kg/h~ 10000kg/h
3. The diameter of the spiral turn cage is optional from 1200mm~4550mm.
4. Belt width from 400~1372mm (16~54 inches) is optional
5. The inlet and outlet position and direction are selected according to customer requirements and site restrictions
6. The library body can be fully welded
7. The infeed and outfeed conveyor can be selected according to customer requirements
8. Optional CIP automatic cleaning system to clean the inside of the freezer and reduce downtime
9. Optional ADF air defrosting system for continuous defrosting, so that quick freezer can work continuously
Product real photo display

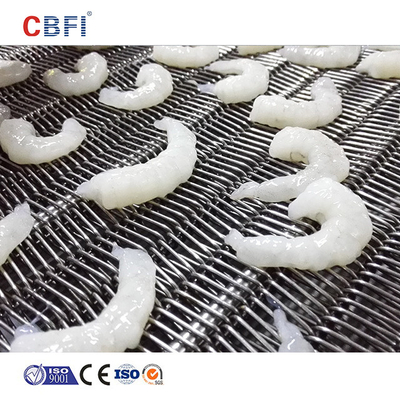

1. Conveyor mesh belt, special equipment manufacturing, high-strength stainless steel spring wire production, the strength fully meets the American Ashworth standard, the mesh belt is durable
2. Mesh belt drive, using European advanced synchronous drive technology
3. Circulating fan, high efficiency and energy saving, low noise, fully sealed low temperature moisture-proof and waterproof motor, stable operation
Product Configurations
|
Structure type
|
Double Spiral
|
Cage diameter
|
φ3000
|
Helical layers
|
15*2
|
In and out time
|
20~100min
|
|
Belt width
|
910mm
|
Effective network width
|
840mm
|
Total length of mesh belt
|
498m
|
Currency height
|
100mm
|
|
Installed capacity
|
72kw
|
Cooling capacity
|
370kw
|
Chamber temperature
|
-35℃
|
Library board thickness
|
120mm
|
|
Defrost method
|
Water melting frost
|
Refrigeration
|
-42℃/+35℃
|
||||
|
Library size
|
16300*6300*3800mm
|
In and out rack
|
Feeding frame 1600mm, discharging frame 1000mm
|
||||
