Product Details:
|
| Capacity: | 10 Tons Capacity In 24hours | Condition: | New |
|---|---|---|---|
| Refrigerant: | R507/R404A | Control System: | PLC Program Control |
| Model: | CV10000 | Ice Shape: | Solid With Square Shape Ice |
| Machine Size: | Medium | Cooling Way: | Air/Water-cooled |
| High Light: | 10 Tons Ice Cube Making Machine,Automatic Edible Ice Cube Making Machine |
||

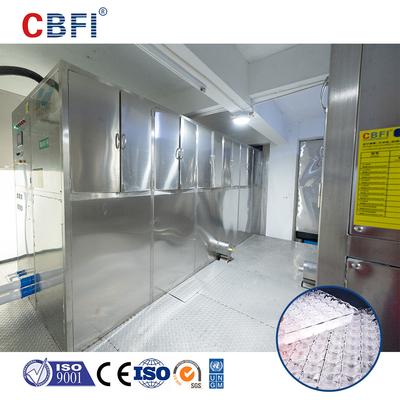

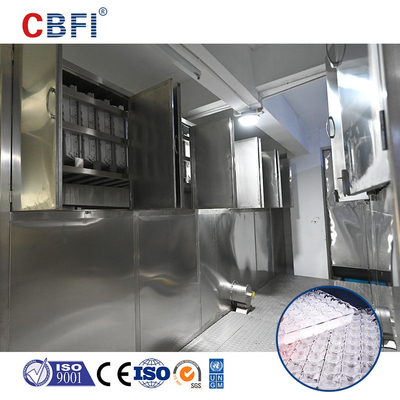

For Banquet Halls 10 Tons Industrial Ice Cube Making Machine Automatic Edible Ice Machine
The CBFI 10-ton square ice machine is a fully automatic edible ice production machine that boasts a high production capacity and advanced refrigeration design system. With its small footprint and environment adaptable system, it is a top-notch option for commercial and industrial applications.
The CBFI 10-ton square ice machine utilizes cutting-edge technology to ensure efficient and fast ice production. Its primary feature is the automatic ice-making control system, which enables the machine to operate without human intervention, providing reliable and consistent performance.
A major advantage of this machine is the high production capacity, making it ideal for commercial and industrial applications. The ice-making capacity can reach up to 10,000 kilograms per day, which is sufficient for large businesses that require ample amounts of ice for their daily operations.
The CBFI 10-ton square ice machine is built with a state-of-the-art refrigeration system that guarantees excellent performance, even in harsh environmental conditions. The machine has a self-adjusting system that adapts to the surrounding temperature and adjusts the cooling system accordingly. This feature ensures that the ice-making process is not impacted by changes in weather conditions.
Additionally, the machine's compact design ensures that it does not take up too much space in the business area, thus ensuring that it can fit into small spaces conveniently. This is a great advantage for businesses that do not have a lot of space but require large amounts of ice.
In conclusion, the CBFI 10-ton square ice machine is a high-quality product that offers a variety of benefits. Its fully automated ice-making control system, high production capacity, advanced refrigeration design system, and small footprint make it a top choice for commercial and industrial businesses in need of large quantities of ice. This machine is a smart investment that can boost the productivity and efficiency of businesses while ensuring that they meet their customer's ice demands.
Product Parameters
|
Large capacity cube ice machine for hotels & restaurants paremeters
|
|||||||
|
Model Parameters
|
CV 1000
|
CV 2000
|
CV 3000
|
CV 5000
|
CV 10000
|
CV 20000
|
|
|
Daily output (T/24 h)
|
1
|
2
|
3
|
5
|
10
|
20
|
|
|
Compressor Power
|
4.34 kw
|
7.88 kw
|
10.58 kw
|
21 kw
|
42 kw
|
73.5 kw
|
|
|
Fan Power of Cooling Tower
|
0.18 kw
|
0.37 kw
|
0.56 kw
|
0.75 kw
|
1.5 kw
|
2.2 kw
|
|
|
Cooling Pump Power
|
1.1 kw
|
1.5 kw
|
1.5 kw
|
2.2 kw
|
4 kw
|
5.5 kw
|
|
|
|
L (mm)
|
1800
|
1630
|
1980
|
2890
|
5730
|
7100
|
|
W (mm)
|
1000
|
1600
|
1630
|
1780
|
1780
|
2250
|
|
|
H (mm)
|
1700
|
1706
|
1860
|
1860
|
2130
|
2300
|
|
|
Unit N.W. (kg)
|
800
|
1000
|
1200
|
1600
|
3000
|
5000
|
|
|
1. Size of cube ice: 22*22*22 mm ; 29*29*22 mm ; 38*38*22 mm.
2. Compressor brand: Bizter / Frascold; refrigerant: R507/ R404A;Cooling Method: Water Cooling / Air Cooling.
3. Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately). 4. Operating Conditions: T(water supply):20 ℃, T(ambient):32 ℃, T(condensing): 40 ℃, T(evaporating):-10 ℃. 5. Note: The actual ice production varies due to the influence of the water supply temperature and ambient temperature. 6. The final interpretation of the above mentioned parameter is in Icesource, there will be further notice, if there any technical change. |
|||||||
