Product Details:
|
| Refrigerant: | R507/R404a | Power: | Customized |
|---|---|---|---|
| Ice Shape: | Block Ice | Key Selling Points: | Automatic |
| Ice Block Weight: | 2.5kg/5kg/10kg/15kg/20kg | Material: | Stainless Steel |
| Evaporator Type: | Coil Pipe Type | Expansion Valve: | Danmark - Danfoss Brand |
| High Light: | R404a Ice Block Making Machine,304 SS Ice Block Making Machine |
||

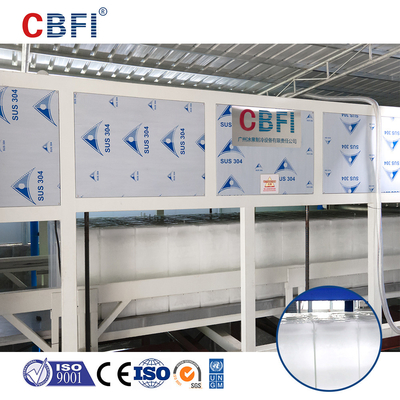

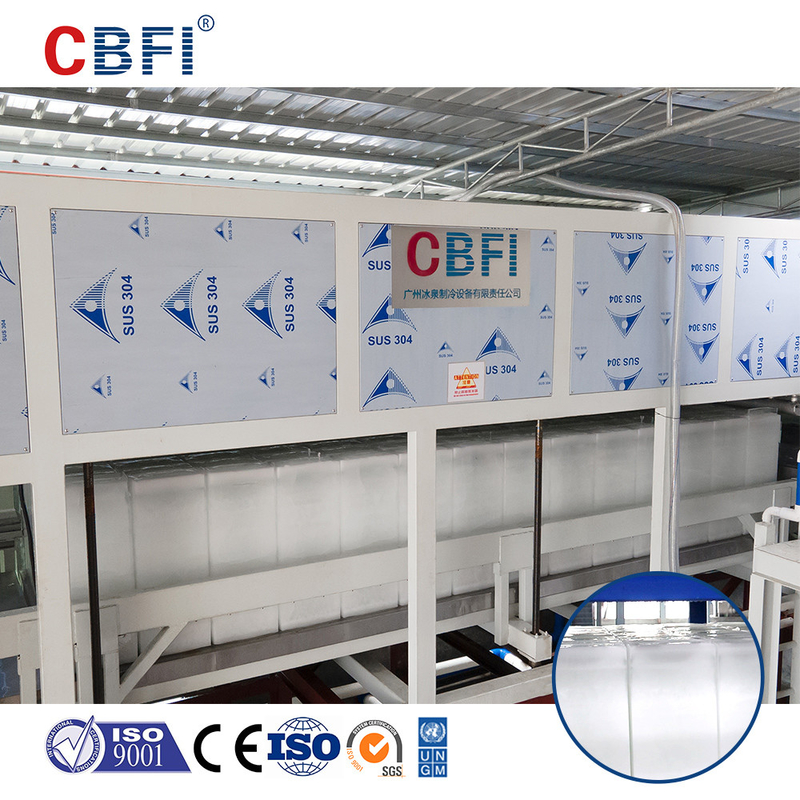

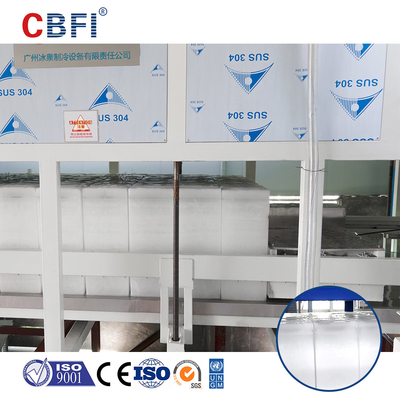

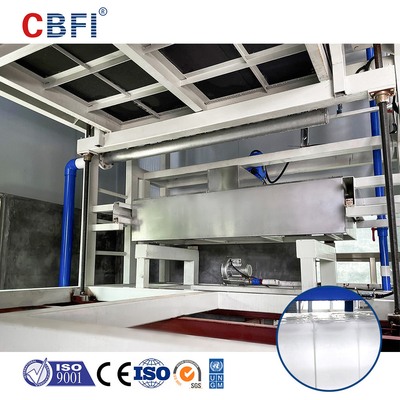

304 Stainless Steel Industrial Direct Cooling Ice Block Making Machine, Block Ice Machine With Big Capacity
Introduction to CBFI Direct Cooling Block Ice Machine
CBFI Direct Cooling Block Ice Machine is a specialized ice-making machine that produces high-quality and durable ice blocks. This type of ice machine is widely used in a variety of industries, including fisheries, food processing, chemical manufacturing, and construction.
The CBFI Direct Cooling Block Ice Machine is known for its unique features that make it a popular choice for many business owners. These features include its ability to produce large ice blocks, its strong cold storage capabilities, its ability to withstand melting, its low cost, and its ease of operation.
Large Ice Blocks
One of the most significant advantages of the CBFI Direct Cooling Block Ice Machine is its ability to produce large ice blocks. This feature makes it an ideal choice for industries that require a constant supply of ice, such as fisheries and food processing. The machine can produce ice blocks of various sizes, ranging from 25 kg to 100 kg, depending on the business owner's needs.
Strong Cold Storage Capabilities
The CBFI Direct Cooling Block Ice Machine is designed to ensure that ice blocks remain frozen for an extended period. The machine's powerful cooling system ensures that the ice block's temperature remains at a constant -10℃ to -15℃, which is ideal for storing and transporting ice blocks.
Ability to Withstand Melting
Another feature that sets the CBFI Direct Cooling Block Ice Machine apart from other ice-making machines is its ability to withstand melting. The ice blocks produced by the machine are made using a direct cooling method that ensures that the ice blocks remain frozen for a more extended period, even in hot temperatures.
Low Cost
Operating an ice-making machine can be costly, which is why the CBFI Direct Cooling Block Ice Machine is a popular choice for business owners. The machine's low cost makes it an affordable option for small businesses that require a constant supply of ice.
Ease of Operation
The CBFI Direct Cooling Block Ice Machine is designed to be easy to operate. It comes with a user-friendly control panel that enables business owners to monitor the machine's performance and make adjustments as needed. The machine's maintenance is also straightforward, making it easy for business owners to keep it in good working condition.
Conclusion
The CBFI Direct Cooling Block Ice Machine is a robust and reliable ice-making machine that is ideal for various industries. Its unique features, including its ability to produce large ice blocks, strong cold storage capabilities, ability to withstand melting, low cost, and ease of operation, make it a popular choice for many business owners. When looking for a reliable ice machine, CBFI Direct Cooling Block Ice Machine is an excellent option to consider.
Product At A Glance
|
Direct Cooling Block Ice Machine Parameters
|
|||||||
|
No.
|
Cooling Capacity
(kw) |
Power
(kw) |
Lift Motor
(kw) |
Weight of Ice (kg)
|
Ice Size
|
Machine Size
|
|
|
L*W*H (mm)
|
L*W*H (mm)
|
||||||
|
ABI 10
|
12.02
|
4.22
|
2.2
|
5
|
120*100*500
|
2600*1100*2000
|
|
|
10
|
240*100*500
|
2600*1100*2000
|
|||||
|
ABI 20
|
22.9
|
7.7
|
3
|
5
|
120*100*500
|
2700*1510*2000
|
|
|
10
|
240*100*500
|
2700*1510*2000
|
|||||
|
ABI 30
|
30.9
|
10.33
|
4
|
10
|
240*100*500
|
3100*1650*2000
|
|
|
15
|
280*120*500
|
3400*1725*2000
|
|||||
|
ABI 50
|
61.8
|
20.5
|
5.5
|
20
|
260*120*730
|
4350*2310*2250
|
|
|
20
|
320*120*730
|
4500*2165*2250
|
|||||
|
No.
|
Cooling Capacity
(kw) |
Power
(kw) |
Lift Motor
(kw) |
Weight of ice (kg)
|
Ice Size
|
Machine Size
|
|
|
L*W*H (mm)
|
Compressor unit L*W*H (mm)
|
Evaporator L*w*H (mm)
|
|||||
|
ABI 100
|
95.8
|
32.22
|
7.5
|
25
|
320*120*730
|
6450*2600*2250 (one-piece)
|
|
|
11
|
30
|
310*150*730
|
2400*1700*2000
|
4900*2110*2250
|
|||
|
ABI 150
|
142.4
|
47.8
|
11
|
30
|
310*150*730
|
2950*2000*2250
|
5550*2460*2250
|
|
40
|
410*150*730
|
2950*2000*2250
|
5550*2460*2250
|
||||
|
ABI 200
|
185.4
|
61.5
|
15
|
40
|
410*150*730
|
3025*2200*2250
|
6800*2460*2600
|
|
50
|
350*180*950
|
3025*2200*2250
|
3800*2560*2600
|
||||
|
ABI 300
|
249.9
|
85.5
|
22.5
|
40
|
410*150*730
|
3325*2200*2500
|
6800*2460*2250*3
|
|
50
|
350*180*950
|
3325*2200*2500
|
6800*2460*2250*3
|
||||
|
1. Operating conditions: ambient temperature 32℃, water supply temperature 20℃. Due to the continuous updating of product technology, if the data is changed, it will be reflected in the quotation plan. The above data is for reference only, which is subject to actual conditions.
2. The above information is according to water cooled condenser spec. Size of machine is without cooling tower, cooling tower usually install in the outside.
3. Operating condition: water temperature: 23 Cent degree, evaporate temperature:-12 Cent degree, condensing temperature 40 Cent degree, reference valve under 50 Hz power supply. Real production of machine will have a little change according to change of water temperature and ambient temperature.
|
|||||||
