Product Details:
|
| Capacity: | 10 Tons | Ice Shape: | ICE BLOCK |
|---|---|---|---|
| Ice Storage Capacity: | Customized | Refrigerant: | R507, R404a, R517 |
| Ice Moulds: | Stainelss Steel 304 & Galvanized Sheet | Crane System: | Help Unload Ice And Fill Water |
| Coil Evaporator: | Steel 3mm Thickness | Cooling Way: | Water Cooling, Air Cooling, Evaporative Cooling |
| High Light: | R517 Ice Block Machine,10 Ton Ice Block Machine |
||

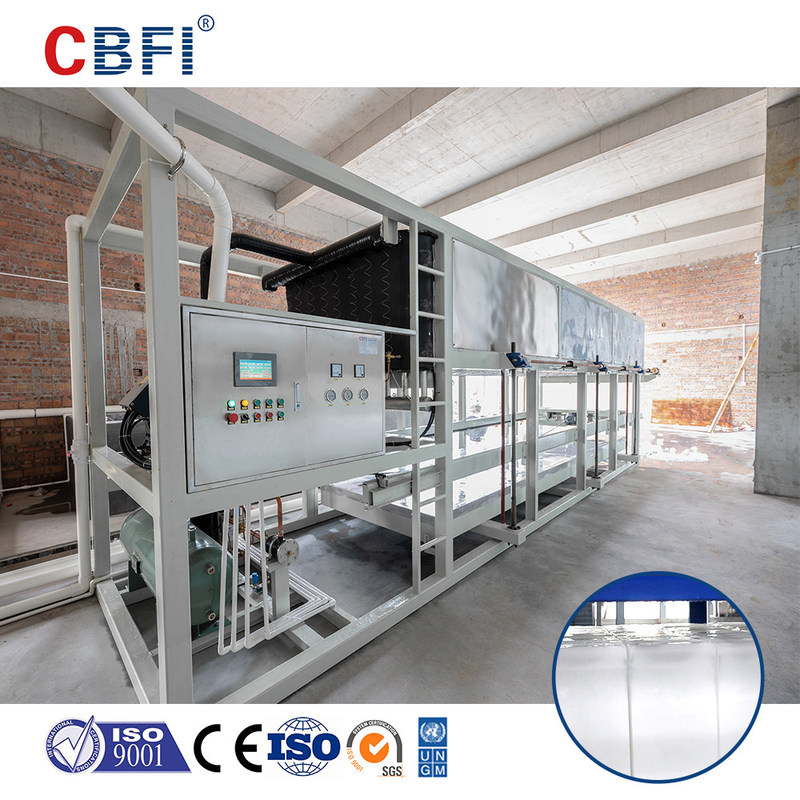

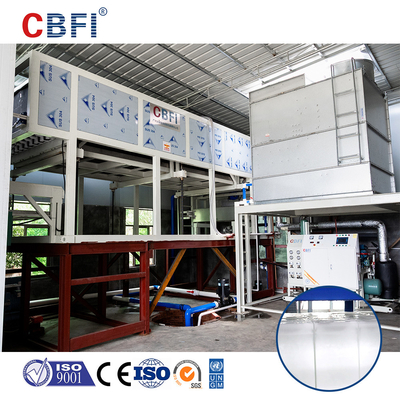

Big Capacity Direct Cooling Block Ice Machine Output From 10 Tons
Introduction to CBFI's ABI Series Direct Cooling Block Ice Machine
CBFI's ABI series is a line of direct cooling block ice machines developed in-house by the company. The line features a number of cutting-edge technologies and innovations aimed at providing customers with the most efficient and high-performing block ice making solution on the market.
One of the key features of the ABI series is its use of direct cooling technology. This allows for a more efficient and consistent ice making process, resulting in higher ice output and better quality ice than many other products on the market. By keeping the ice in direct contact with the refrigerant, the ABI series is able to freeze water more quickly and efficiently than other ice making machines.
In addition to its high performance capabilities, the ABI line is also designed with ease of use and maintenance in mind. The machines are simple to operate and require minimal maintenance, making them an ideal choice for busy food service and hospitality environments. With minimal downtime required for maintenance and servicing, the ABI series is able to provide customers with a reliable and efficient ice making solution that minimizes disruptions to their operations.
Another notable feature of the ABI series is its environmental friendliness. The machines are designed to be energy-efficient, using less power and reducing the impact on the environment. Additionally, the ice produced by the ABI line is free from impurities and pollutants, making it safe and suitable for consumption.
Overall, CBFI's ABI series is a testament to the company's commitment to providing its customers with the most innovative and efficient ice making solutions. With its high performance capabilities, user-friendly design, and environmentally conscious features, the ABI line is the ideal choice for businesses looking to produce high-quality ice in a reliable and efficient manner.
Product parameters
|
Direct Cooling Block Ice Machine Parameters
|
|||||||
|
No.
|
Cooling Capacity
(kw) |
Power
(kw) |
Lift Motor
(kw) |
Weight of Ice (kg)
|
Ice Size
|
Machine Size
|
|
|
L*W*H (mm)
|
L*W*H (mm)
|
||||||
|
ABI 10
|
12.02
|
4.22
|
2.2
|
5
|
120*100*500
|
2600*1100*2000
|
|
|
10
|
240*100*500
|
2600*1100*2000
|
|||||
|
ABI 20
|
22.9
|
7.7
|
3
|
5
|
120*100*500
|
2700*1510*2000
|
|
|
10
|
240*100*500
|
2700*1510*2000
|
|||||
|
ABI 30
|
30.9
|
10.33
|
4
|
10
|
240*100*500
|
3100*1650*2000
|
|
|
15
|
280*120*500
|
3400*1725*2000
|
|||||
|
ABI 50
|
61.8
|
20.5
|
5.5
|
20
|
260*120*730
|
4350*2310*2250
|
|
|
20
|
320*120*730
|
4500*2165*2250
|
|||||
|
No.
|
Cooling Capacity
(kw) |
Power
(kw) |
Lift Motor
(kw) |
Weight of ice (kg)
|
Ice Size
|
Machine Size
|
|
|
L*W*H (mm)
|
Compressor unit L*W*H (mm)
|
Evaporator L*w*H (mm)
|
|||||
|
ABI 100
|
95.8
|
32.22
|
7.5
|
25
|
320*120*730
|
6450*2600*2250 (one-piece)
|
|
|
11
|
30
|
310*150*730
|
2400*1700*2000
|
4900*2110*2250
|
|||
|
ABI 150
|
142.4
|
47.8
|
11
|
30
|
310*150*730
|
2950*2000*2250
|
5550*2460*2250
|
|
40
|
410*150*730
|
2950*2000*2250
|
5550*2460*2250
|
||||
|
ABI 200
|
185.4
|
61.5
|
15
|
40
|
410*150*730
|
3025*2200*2250
|
6800*2460*2600
|
|
50
|
350*180*950
|
3025*2200*2250
|
3800*2560*2600
|
||||
|
ABI 300
|
249.9
|
85.5
|
22.5
|
40
|
410*150*730
|
3325*2200*2500
|
6800*2460*2250*3
|
|
50
|
350*180*950
|
3325*2200*2500
|
6800*2460*2250*3
|
||||
|
1. Operating conditions: ambient temperature 32℃, water supply temperature 20℃. Due to the continuous updating of product technology, if the data is changed, it will be reflected in the quotation plan. The above data is for reference only, which is subject to actual conditions.
2. The above information is according to water cooled condenser spec. Size of machine is without cooling tower, cooling tower usually install in the outside.
3. Operating condition: water temperature: 23 Cent degree, evaporate temperature:-12 Cent degree, condensing temperature 40 Cent degree, reference valve under 50 Hz power supply. Real production of machine will have a little change according to change of water temperature and ambient temperature.
|
|||||||
