Product Details:
|
| Controller: | PLC | Warranty: | 1 Year |
|---|---|---|---|
| Capacity: | 3-200ton/day | Evaporator: | Stainless Steel |
| Certificate: | CE/ISO | Condenser: | Air-cooled/Water-cooled |
| Refrigerant: | R507/R404A | Product Name: | Direct Cooling Ice Block Machine |
| High Light: | Direct Cooling Ice Block Making Machine,Energy Efficient Ice Block Making Machine |
||

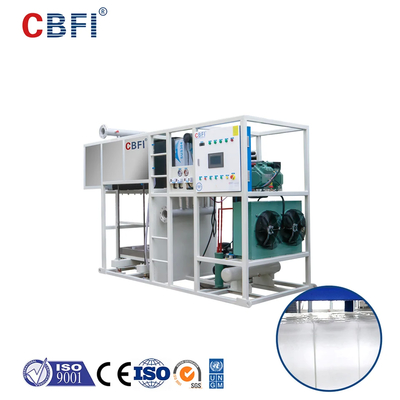

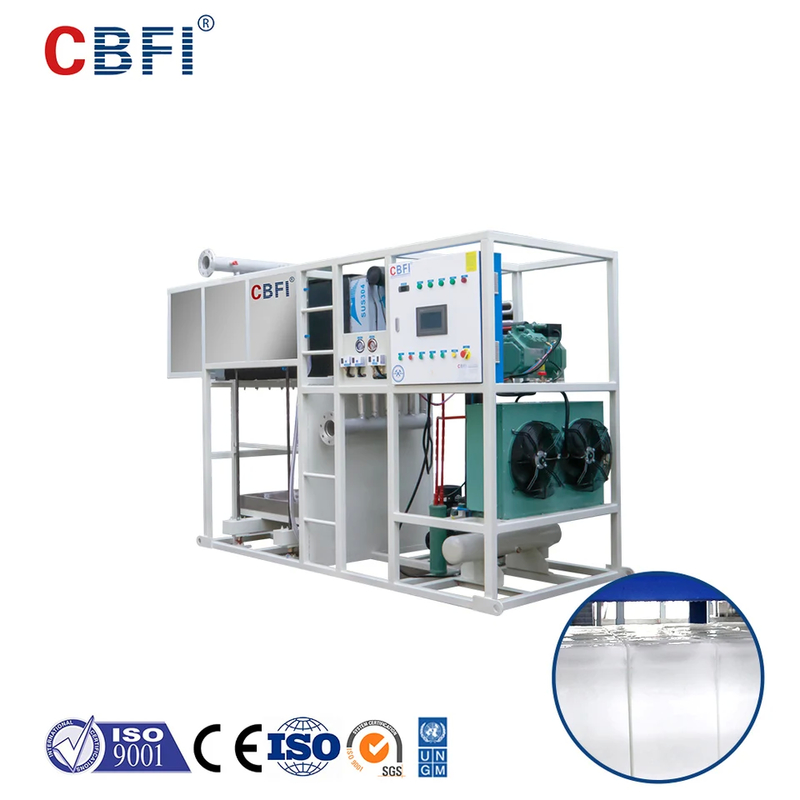

Energy-efficient Direct Cooling Ice Block Making Machine for Industries
In recent years, saving energy and reducing emissions has been a major concern in the industrial field. As a traditional refrigeration equipment, the ice machine also faces the challenge of energy saving and environmental protection. Therefore, a new type of direct cooling block ice machine has emerged in the market, which has become a popular choice in the industry due to its numerous advantages.
1. High Efficiency in Ice Making
One of the most prominent advantages of direct cooling block ice machine is its high efficiency in ice making. The direct cooling block ice machine adopts advanced and efficient cooling technologies, such as direct refrigeration and air cooling. By using these technologies, the heat transfer and cooling process is optimized, leading to efficient and fast ice-making. Compared to other ice-making methods, the direct cooling block ice machine can make ice much more quickly, saving a lot of energy and time.
2. Energy Saving
The direct cooling block ice machine has a significant energy-saving effect. This is mainly due to the advanced cooling technology adopted by the machine. The direct cooling method reduces the energy loss by eliminating the intermediate thermal energy transfer process, which reduces the energy consumption required for ice making. In addition, the air cooling technology, used in the machine, can take advantage of natural resources to cool the ice, eliminating the need for energy-consuming cooling units. The direct cooling block ice machine can save up to 30% of energy compared to traditional ice-making machines.
3. Large Production Capacity
The direct cooling block ice machine can produce large quantities of ice, making it ideal for industrial use. The machine is designed to produce block ice in large quantities, with a wide range of specifications. The ice production capacity of the direct cooling block ice machine can reach up to several tons per day, making it a perfect choice for industrial-scale ice making.

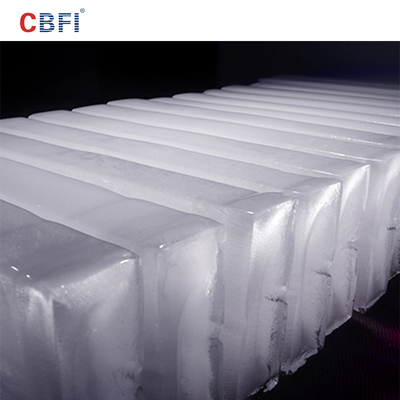

4. High-Quality Ice
The ice produced by the direct cooling block ice machine has high quality, with a crystal clear appearance and a high degree of hardness. The machine is designed to make ice blocks of uniform size and shape, which ensures that the ice is of consistent quality. The block ice produced by the machine is also free of impurities and bacteria, making it ideal for use in the food and beverage industry.
5. Low Maintenance
The direct cooling block ice machine requires very little maintenance. The advanced cooling technology used in the machine is designed to be maintenance-free, reducing the need for regular inspection and maintenance. The machine is also designed to be easy to clean, making it simple to maintain cleanliness and hygiene.
|
Direct Cooling Block Ice Machine Parameters
|
|||||||
|
No.
|
Cooling Capacity
(kw) |
Power
(kw) |
Lift Motor
(kw) |
Weight of Ice (kg)
|
Ice Size
|
Machine Size
|
|
|
L*W*H (mm)
|
L*W*H (mm)
|
||||||
|
ABI 10
|
12.02
|
4.22
|
2.2
|
5
|
120*100*500
|
2600*1100*2000
|
|
|
10
|
240*100*500
|
2600*1100*2000
|
|||||
|
ABI 20
|
22.9
|
7.7
|
3
|
5
|
120*100*500
|
2700*1510*2000
|
|
|
10
|
240*100*500
|
2700*1510*2000
|
|||||
|
ABI 30
|
30.9
|
10.33
|
4
|
10
|
240*100*500
|
3100*1650*2000
|
|
|
15
|
280*120*500
|
3400*1725*2000
|
|||||
|
ABI 50
|
61.8
|
20.5
|
5.5
|
20
|
260*120*730
|
4350*2310*2250
|
|
|
25
|
320*120*730
|
4500*2165*2250
|
|||||
|
No.
|
Cooling Capacity
(kw) |
Power
(kw) |
Lift Motor
(kw) |
Weight of ice (kg)
|
Ice Size
|
Machine Size
|
|
|
L*W*H (mm)
|
Compressor unit L*W*H (mm)
|
Evaporator L*w*H (mm)
|
|||||
|
ABI 100
|
95.8
|
32.22
|
7.5
|
25
|
320*120*730
|
6450*2600*2250 (one-piece)
|
|
|
11
|
30
|
310*150*730
|
2400*1700*2000
|
4900*2110*2250
|
|||
|
ABI 150
|
142.4
|
47.8
|
11
|
30
|
310*150*730
|
2950*2000*2250
|
5550*2460*2250
|
|
40
|
410*150*730
|
2950*2000*2250
|
5550*2460*2250
|
||||
|
ABI 200
|
185.4
|
61.5
|
15
|
40
|
410*150*730
|
3025*2200*2250
|
6800*2460*2600
|
|
50
|
350*180*950
|
3025*2200*2250
|
3800*2560*2600
|
||||
|
ABI 300
|
249.9
|
85.5
|
22.5
|
40
|
410*150*730
|
3325*2200*2500
|
6800*2460*2250*3
|
|
50
|
350*180*950
|
3325*2200*2500
|
6800*2460*2250*3
|
||||
|
1.Operating conditions: ambient temperature 32℃, water supply temperature 20℃. Due to the continuous updating of product technology, if the data is changed, it will be reflected in the quotation plan. The above data is for reference only, which is subject to actual conditions.
2.The above information is according to water cooled condenser spec. Size of machine is without cooling tower, cooling tower usually install in the outside.
3.Operating condition: water temperature: 23 Cent degree, evaporate temperature:-12 Cent degree, condensing temperature 40 Cent degree, reference valve under 50 Hz power supply. Real production of machine will have a little change according to change of water temperature and ambient temperature.
|
|||||||
