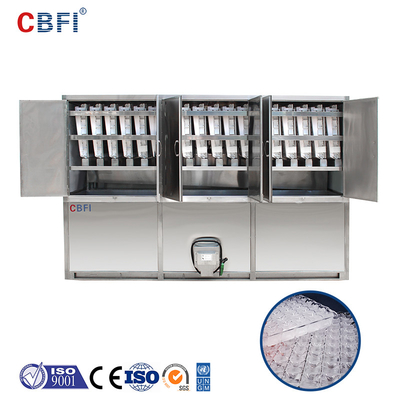

1000 ~ 20000Kgs / 24H Industrial Ice Cube Making Machine , Ice Makers Machines For Cold Drink

Basic Information
Place of Origin: China
Brand Name: CBFI
Certification: ISO, SGS, CE, BV
Model Number: CV
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Standard Wooden Case
Delivery Time: 40 working days
Payment Terms: T/T, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month
Detail Information
Material: Stainless Steel 304 Compressor: Or Bock Or Copeland
Ice Size: 22mm*22mm*22mm Or 29mm*29mm*22mm Packing: Standard Wooden Case
Container: 40 Feet Container Daily Production Capacity: 1 Ton To 20 Tons
Electricity Consume: 75kw/ Ton Cube Ice Cube Ice: Clean And Edible For Cold Drink
High Light:

Ice Cube Making Machine

,

Commercial Ice Cube Machine


Product Description

1000 ~ 20000Kgs / 24H Industrial Ice Cube Making Machine , Ice Makers Machines For Cold Drink



Cube Ice Making Machine Product Description

1. Reasonable design for the framework structure with stainless steel 304, save space, and easy to install;

2. Greatly save energy, only 80-85KW*H are consumed to produce one-ton ice;

3. Equipped with Siemens PLC central program control, which allows multiple functions such as automatic machine start and shut down; ice stopping production when the ice bins are full, Automatic water making up;

4. Special ice outlet. Ice discharging automatically, No need taking ice by hand which can guarantee the ice clean and sanitary, meanwhile, it is matched with ice packing system to package the ice by plastic bags;

5. Adopts the world's famous brand components, which will gurantee the best refrigeration effect and working condition.



Why choose CBFI?

1. Large cube ice machine had been invented by CBFI's boos Mr. Yang

2. So far, we have exported ice machines to 65 countries in the world.

3. Excellent Brand of Chinese Ice Machine Industry.

4. The Drafting Committee of National Ice Machine Industry Standard.



Cube Ice Machine Features

1. Capacities offered: 1,000~20,000Kgs/24H.
2. Simple design/engineering.
3. No requirements of skilled workers.
4. High durability, minimal maintenance.
5. High energy efficiency.

6. Refrigerant: R404a/R22
7. Freezer: high quality stainless steel for all water and ice contacting surfaces which are corrosion resistant and easy to clean.

8. Pumping Tank (Water Pumps): Centrifugal casting iron pump is large enough to circulate the quantity of water to be frozen for many times and produce crystal clear ice.

9. Control Panel: Access to the automatically electrical system which performs sequences of freezing and thawing precisely and dependably year after year.



Ice Cube Machine Refrigeration system Parameters



Working Conditions

Power supply 380V-50Hz-3P
Refrigerant R22
Cooling way Water cooling
Max. Ambient temp. +45 ℃
Supply water temp 23 ℃
Evaporating temp. -12 ℃
Condenser temp. +40 ℃
Relative humidity 85 %
Noise 55dB



Compressor Brand Name
Type Semi-Hermetic Piston type
Product Model 6G-30.2
Power 25.1kw
Refrigerating Capacity 65.6kw



Cooling Tower Brand Name CBFI
Size Φ1615*1890 mm
Power of Cooling Water Pump 2.2 kw
Power of Cooling Fan 0.55 kw
Cooling Water Consumption 0.05 m3/h



Ice making water Circulating pump Brand Name Nanfang
Power 0.55 kw



Ice Outlet Motor Brand Name Nord
Power 0.75 kw



Total Power consumption: 80 kw.h per ton ice



Application of Commercial Ice Cube Machine

CBFI CV series Commercial Ice Cube Machinehas firstly adpoted the three leading technologies of adjustable ice thickness, automatic water supplying, automatic ice freezing and ice falling.It is for food-grade ice cube machine,which is widely used in hotels, restaurants, bars, fast-food shops, supermarkets and cold drink shops, etc.

1000 ~ 20000Kgs / 24H Industrial Ice Cube Making Machine , Ice Makers Machines For Cold Drink 0
