|Place of Origin:||Guangzhou of China|
|Certification:||ISO14001 CE ISP|
|Minimum Order Quantity:||1 Set|
|Price:||USD 3000-10000/ Set|
|Packaging Details:||Wooden Case|
|Delivery Time:||30 days|
|Payment Terms:||L/C, T/T, Western Union, MoneyGram|
|Supply Ability:||50 Sets Per Month|
|Compressor:||Germany Bitzer/ American Copeland||Electric Components:||Korea Brand LG|
|Solenoid Valve:||Italy Brand Castal||Material Of Cold Panel:||Double Color Steel / Stainless Steel /galvanized Steel|
|Adjustable Density Of PU Foam:||40 To 42 Kg/m³||Container:||Second Hand Container With New Cold Room|
|Container Type:||Refrigerated||Cold Room:||New Cold Room Built In 20 Ft Or 40 Ft Container|
Cold Room Containers,
Freezer Shipping Containers

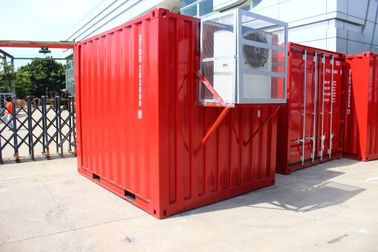

-45 To 15 Degree Container Cold Room / 40 20 Refrigerated Container With Imported Compressor
Cold room basic information:
1. supply: 380V/50Hz, 3 phase or 220V/60hz, 3 phase. or what others.
2. container: new cold room built in a second hand container, 20 ft or 40 ft. We will finished the installation, testing in our factory. when customer get the container, just need to connect the power and water supply.
Inside Container Cold room size:
20 ft : 5 x 2.3 x 2.3 meter
40 ft: 10.8 x 2.3 x 2.7 meter
Containerized Cold Room Features :
1. New cold room built in a second container, 20 ft or 40 ft. We will repaint the container
2. cold room can be 0~10 degree for fruit, vegetable storage; -18 degree for meat, fish, chicken storage, -35 degree for fish, meat, chicken quick freezing.
3. Mobile cold room, just connect the power supply, cold room is come to use.
4. Can not used for sea freight.
Freezer Cold Room Features
1). Polyurethane insulation board design , the main steel structure to faciliate consturction.
2). Portable hinged and sliding doors, and out of cold storage more convenient , easy to operate.
3). Water defrosting evaporator defrost faster , save operating cost.
4). Cold rooms door with anit-shock protection , an increase of reliability.
5). Room temperature -45 to 15 degree.
|100mm||-10 degree or above|
|150mm||-25 degree or above|
|200mm||-35 degree or above|
Freezer Cold Room Details
1. Cold room major component selects the well-known brands, which ensure the machine with reasonable configuration, steady movement, good insulation function, and low power consumption.
2. The electrical control section of the cold room is fully automatically controlled by computer, LCD inner temperature of the cold room, available machine time, defrost time, time of fan delay, alarming indicate and various technology parameter. It is easy and convenient to operate.
3. The ice room is made up of reinforced base plate, sidewall plate, end wall plate and top plate. There is a 100mm-thick insulated layer of polyurethane foam inside the plate.
4. An air cooling system is applied inside to keep the temperature at -8, an ideal temperature to keep ice dry and crispy.
Cold Room doors
1). Swing door and sliding door for choice.
2). Swing door : manual opended , automatic,etc.
3). Door board made with special pressing technology PU material.
4). Door frame : color steel or stainless steel.
5). Surface material : color steel or stainless steel with protecting film.
