Product Details:
|
| Brand: | CBFI | Model Number: | CV Series |
|---|---|---|---|
| Gas: | Freon | Ice Size: | 22mm*22mm*22mm Or 29mm*29mm*22mm |
| Electrical Components: | LG | Expansion Valve: | Danfoss |
| Cerification: | ISO, CE, BV, SGS | Frame Material: | Stainless Steel 304 |
| High Light: | Ice Cube Making Machine,Commercial Ice Cube Machine |
||
China Best Quality Commercial and Industrial Cube Ice Making Machine Ice Cube Machine on Sales for Africa Countries

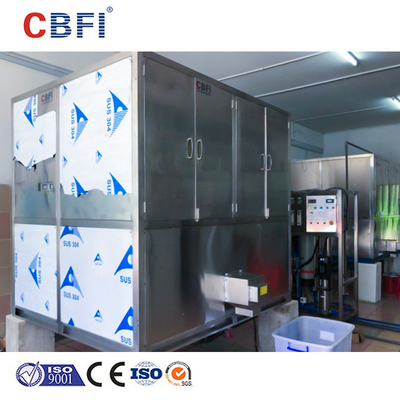

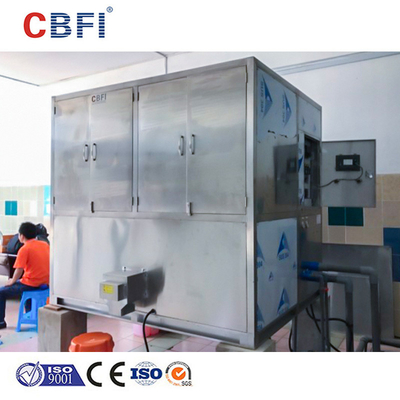

CBFI Ice Cube Maker Machine
Product Description
1. Reasonable design for the framework structure with stainless steel 304, save space, and easy to install;
2. Greatly save energy, only 80-85kw powers are consumed to produce one-ton ice;
3. Ice dropping automatically, No ice dropping auxiliary equipment, lower the error rate ice outgoing;
4. Special ice outlet. Ice discharging automatically, No need taking ice by hand which can guarantee the ice clean and sanitary, meanwhile, it is matched with ice packing system to package the ice by plastic bags;
| Condition: |
New
|
Capacity: |
3 tons per day
|
Place of Origin: |
Guangdong, China (Mainland)
|
| Brand Name: | CBFI | Model Number: |
CV3000
|
Ice Shape: |
cube ice
|
| Voltage: |
380v,50/60hz,3p, 220v-240v,60hz,3p
|
Power(W): |
14KW
|
Dimension(L*W*H): |
2100*1940*2050(mm)
|
| Weight: |
2500kgs
|
Certification: |
CE
|
Warranty: |
12 months after delivery
|
| After-sales Service Provided: |
Engineers available to service machinery overseas
|
Refrigerant: |
R22 or R404a
|
Control system: |
Siemens PLC program control
|
| Refrigeration Components: |
Danfoss from Denmark and Castel from Italy
|
Comprassor brand: |
/Refcomp/Copeland
|
Electrical components: |
LG(LS)
|
| Ice size: |
22mm*22mm*22mm or 29mm*29mm*22mm
|
Freezing time: |
20 minutes or 23 minutes
|
Cooling way: |
Water cooled way
|
| Ice havest way: |
Hot gas defrost
|
Material: |
SUS304 staineless steel
|
| Packaging Details: | 1. Each set is wrapped in plywood case. 2. CV3000 Ice Cube Machine is made up of two parts: ice cube machine and cooling tower. CV3000 ice cube machine size: 2080*1920*2030(mm) ; CV3000 cooling tower size: 1270mm*1270mm*1520mm. 3. A 20Feet container 4. We will install and test the machine for you before shipping, so that you just need to connect the water pipes and power. All necessary parts for installation are offered free of charge when delivery. |
1. commercial ice cube maker machine produce qualified edible ice.
2. Ice cube is popular in restaurant, hotel, and wine bar and so on.
3. Daily capacity of ice cube machine is from 1ton to 20tons.
4. There are two kinds of size for ice cube:22mm x 22mm x 22mm, 29mm x 29mm x 22mm.
Ice Source commercial ice cube maker machine s the first type of cube ice machine adopts four leading technologies:automatically adjust ice thickness, automatically match the change of ambient temperature , automatically supply ice water and facilitated condensing pressure steady system .The producing process is full automatically, produce ice with neat and nice look,without thickness difference.Reasonably adopt out two patent technology of flat plate exchange heat technology and circulating heat steady problems .It provide full technology guarantee for our goods sell all over the world .
Installation:
1). Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2). Installing by CBFI engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.
