|Place of Origin:||China|
|Certification:||CE / ISO9001/3C|
|Minimum Order Quantity:||1 set|
|Packaging Details:||1. Standard wooden case for packing main frame of block ice machine. Containerized design no need packing. 2. Machine installed completely and strictly tested in our factory before shipping. 3. Completely machine:ice machine, cooling tower, water pumps|
|Delivery Time:||30 working days after received your deposit|
|Payment Terms:||T/T or western Union or moneygram|
|Supply Ability:||30 sets per month|
|Block Ice Machine Capacity:||1 Ton To 12 Ton||Container:||20 Ft Or 40 Ft Container(second)|
|Blcok Ice Weight:||5 Kg To 25 Kg||Ice Freezing Time:||5~12 Hrs|
|Compressor Brand:||Germany Bitzer Or Taiwan Hanbell||Ice Can Material:||Stainless Steel 304 Material|
|Expansion Valve:||Denmark Brand Danfoss||Solenoid Valve:||Italy Castel|
Containerized Block Ice Plant,
Industrial Ice Block Making Machine
High Output Commercial Ice Block Maker Machine With 20 Ft 40 Ft Container

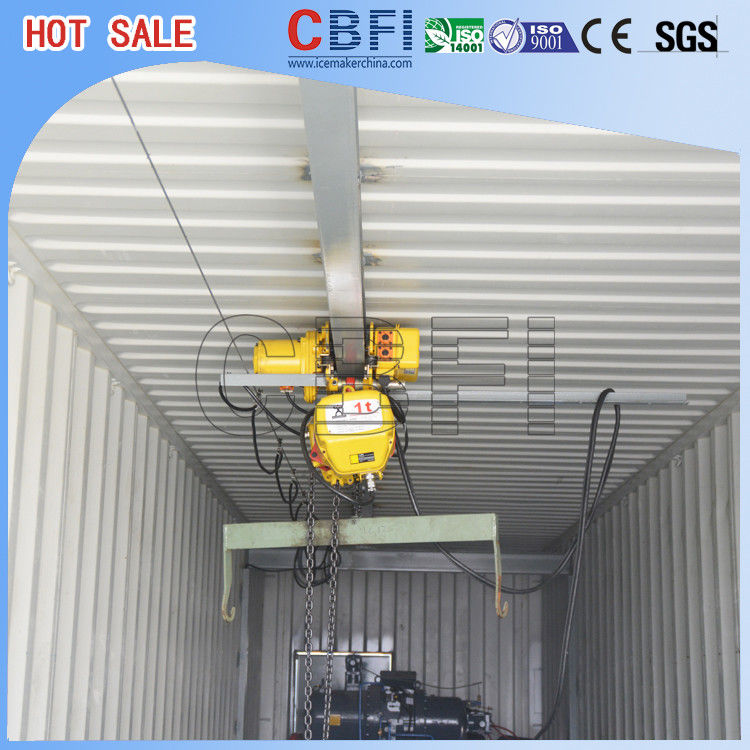

CBFI containerized ice block machine was new ice block machine built in 20 ft or 40 ft container. Customer no need to built ice plant house any more, it is just like a mobile ice factory. This kind of containerized ice block machine was hot sale in Africa, middle east and south east Asia.
Details of Containerized Block Ice Machine:
1. Container: 20 ft GP. 40 ft HQ second hand container
2. Machine capacity: from 1 ton to 12 ton. 12 ton is the maximum production, because the maximum length of container is 12 meter only. The machine bigger than 12 ton can not built in container
3. Size of block ice 5 kg, 10 kg, 15 kg, 20 kg, 25kg. If the block ice was bigger than 25 kg, it is not easy to take out from brine water tank.
4. Ice Freezing time: 5 hrs to 12 hrs, it according the thickness of ice block.
Energy saving block ice machine Features
|NO.||TON/24H||KW||KW||KW||KW||W X H X L(mm)||KG|
|BBI80||8.0||19.61||4||4||1.5||8490 * 2000 *1370||2300|
|BBI100||10.0||24||4||4||1.5||9000 * 2100 *1300||2700|
normally daily capacity specification
Water supply temperature 23°C,
evaporating temperature -18°C,
condensing temperature 40°C, ( valve under 50Hz power supply.
real values may vary due to different water supply temperature and ambient temperature ).
1. 12 months warranty after delivery.
2 . Professional after-sale department to provide 24 hours 7 days technical support, all complaints will be replied within 24 hours. Over 10 engineers available to service machinery overseas.
3．Free spare parts replacement within warranty period.
4.Beyond guarantee period, we will charge market price for spare parts.
1. Standard wooden case.
2. Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water pipe fittings.
3. Machine come into use, it can be started once electric power and water supply has been connected.
4. All required components for install the machine will be provide.
5. Delivery time: 30 working days
some questions and answers here:
1. Q: are you add refrigerant in the ice machine?
A: yes, the machine is full of refrigerant, once with water and electric it can work. yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.
2. Q: do you test the ice machine in your factory?
A: yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.
