Product Details:
|
| Block Ice Weight: | 5 Kg-100 Kg | Power(W): | 7110w |
|---|---|---|---|
| Voltage: | 380v/5hz/3ph Or 220v/6hz/3ph | Electrical Component: | LG |
| Dimension(L*W*H): | 1700*750*1500; 2220*1440*1065 | Ice Can Material: | Stainless Steel 304 Material |
| Ice Temprature: | -8℃ | Solenoid Valve: | Italy Castel |
| High Light: | Ice Block Making Machine,Industrial Ice Block Making Machine |
||

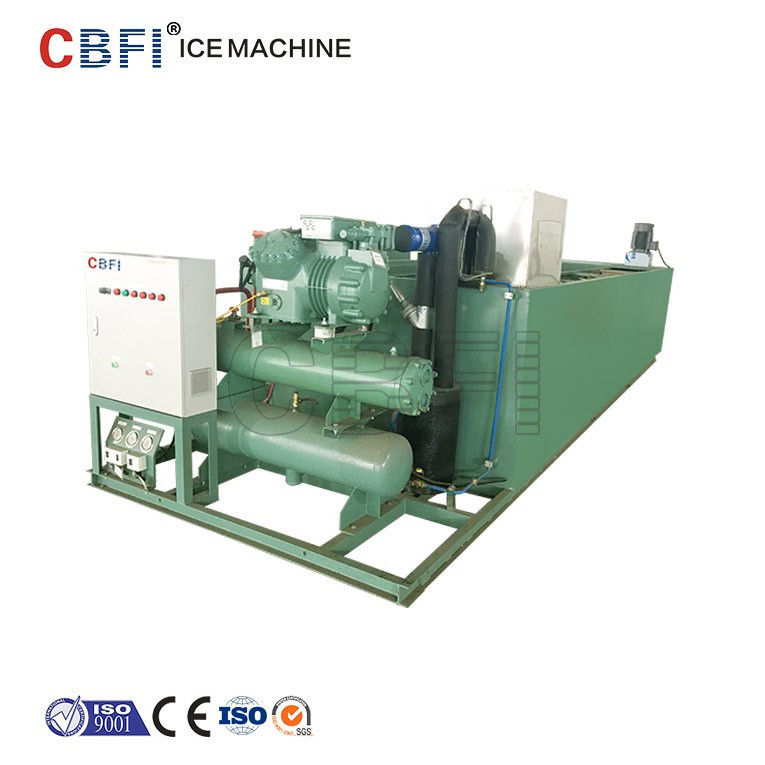

Ice block Making Machine R507 / R404a Refrigerant
1. Details of our block ice machine:
1) Size of block ice 5 kg, 10 kg, 15 kg, 20 kg...50 kg, 100 kg depends on customers' demands
2) Daily capacity of ice block machine can be 1ton to 100tons.
3) Ice can material adopts Stainless Steel 304(SUS304) standard.
2. Block ice application
Vegetable and fruit cooling, Seafood fresh keeping, Fresh keeping on Fish boat, Workshop cooling,Ice sculpture, Party ice
3. Following is our standard ice mold size, We can also design the ice size as your requirement.
|
Block ice weight (Kg) |
Ice mold size (mm) |
Freezing time (hrs) |
Out put shift (24hours) |
| 5 | 150*80*500 | 4.8 | 5 |
| 10 | 200*100*600 | 6 | 4 |
| 15 | 300*100*600 | 6 | 4 |
| 20 | 300*115*850 | 8 | 3 |
| 25 | 295/275*115*950 | 8 | 3 |
| 30 | 330/310*150/130*850 | 12 | 2 |
| 35 | 470/450*150/130*700 | 12 | 2 |
| 50 | 510/470*170/140*870 | 12 | 2 |
| 60 | 490*150*1120 | 12 | 2 |
| 100 | 530/500*230/200*1120 | 24 | 1 |
| 150 | 515/495*365/345*1080 | 24 | 1 |
4. Advantages
1) Coil pipe evaporator
3mm thickness Seamless coil pipe,Use X-ray flaw detection to make sure the coil pipe no leaking , inner pipe derusting processing.
2) Energy-saving,Ice-making power consumption had declined from 110kw.h to 70kw.h/ton block ice.
3) Agitator instead of water pump
High quantity of brine flow and better heat exchange effect. you don't need to worry about the high cost for repairing the water pump.
4) Large Hot Gas Receiver to avoid the liquid impact, protect the compressor.
5) Brine tank use PU forming to isolate the brine water heat exchange with outside, save energy.
6) Ice mould Use Laser cutting and machine welding. Make the welding part very smooth and strong.
7) Average life span more than 20 years.
5. About Us
Guangzhou Icesource Co,.Ltd was established in 2004, specialized in ice machine and cold room manufacture, including cube ice machine, tube ice machine, block ice machine, flake ice machine, plate ice machine, water chiller and cold room, product was export to Europe, North and South America, Asia, Middle East, Africa.
Icesource is located in Guangzhou city, branch company include Guangzhou Ice Spring Refrigeration Equipment Co. Ltd., Guangzhou Huibo Electrical Installation Engineering Co., Ltd, Icesource(Chengdu) Co,.Ltd
Inventor of large capacity Cube Ice Machine 3 ton per day
Build the first set large capacity 100 ton block ice machine by Freon system
Partners of 2008 Beijing Olympic Games Edible Ice Supplier
Partners of 2010 Shanghai EXPO Edible Ice Supplier
Build the biggest Edible Ice Plant in Dubai, UAE
Build the biggest Edible Ice Plant in Doha, Qatar
Build the biggest Edible Ice Plant in South Korea
