|Place of Origin:||Guang Dong of China|
|Minimum Order Quantity:||1 Sets|
|Price:||USD 3000-10000/ Set|
|Packaging Details:||Wooden Case|
|Delivery Time:||30 days|
|Payment Terms:||L/C, T/T, Western Union, MoneyGram|
|Supply Ability:||50 Sets Per Month|
|Refrigeration Parts:||Danfoss Castel Emerson||Control System:||Thermostat System|
|Cold Room Lamp:||Moistureproof Lamp||Door Size:||Customization|
|Cold Room Door::||Sliding Door/Swing Door||Control System:||Full Automatic System|
|Panel:||PU Insulation 50-200mm Thickness||Compressor:||Germany BITZER America Copeland|
|Temperature:||It Can Be Adjustable||Power:||380V/50HZ/3P 220V/60HZ/3P...|
Cold Room Storage,
Cold Storage Room
Ice Cooling Freezer Cold Room America Copeland Compressor Condensing Unit 100MM Panel
1. Cold Room Panel:50mm, 100mm, 120mm, 150mm, 200mm thickness PU insulation.
2. Cold Room Panel Steel Material : Color steel, galvanisted steel, sainless steel...
3. The ice storage is made up of reinforced base plate, sidewall plate, end wall plate and top plate. There is a 100mm-thick insulated layer of polyurethane foam inside the plate.
4. An air cooling system is applied inside to keep the temperature of the ice storage bin at -8, an ideal temperature to keep ice dry and crispy.
5. Cold storage's major component selects the well-known brands, which ensure the machine with reasonable configuration, steady movement, good insulation function, and low power consumption.
6. The electrical control section of the cold room is fully automatically controlled by computer, LCD inner temperature of the cold room, available machine time, defrost time, time of fan delay, alarming indicate and various technology parameter. It is easy and convenient to operate.
7. We often use Germany brand compressor BITZER, America brand Copeland unit.
|50mm||5 degree or above|
|70mm||-5 degree or above|
|100mm||-28 degree or above|
|150mm||-35 degree or above|
|200mm||-45 degree or above|
Freezer Cold Room Details
1. Flexible for construction different sizesmade of modular fabrication with polyurethane insulation with different dimensions.
2. allows for easy assembly and disassembly
3. Panel thickness: 50mm-200mm (for -45 to 5 Celsius degree).
4. According to different temperature range, cold room can be divided degree Celsius cold room
5. Cold Room Temperature can be adjustable
The storage temperature is displayed and controlled by the digital thermostat with which reliable storage is provided; modular cold room is a new product with various standard sizes. Its storage capacity may be specified or selected according to the requirements of the customer.
The precise control and adjustment of temperature enables the customers to achieve the utmost efficiency and benefits.
Cold room application
Cold Room are widely used in food process factory, dairy factory, pharmaceutical factory, chemical factory,fruit and vegetable warehouse, egg storage, hotel, supermarket, hospital, blood bank, troops
Mobile Cold Storage Features
1). Polyurethane insulation board design , the main steel structure to faciliate consturction.
2). Portable hinged and sliding doors, and out of cold storage more convenient , easy to operate.
3). Water defrosting evaporator defrost faster , save operating cost.
4).Cold rooms door with anit-shock protection , an increase of reliability.
5). Room temperature -45 to 15 degree.
Main Components and Features of Cold Room:
1.Flexible for construction different sizesmade of modular fabrication with polyurethane insulation
with different dimensions.
2.allows for easy assembly and disassembly
3.Panel thickness: 50mm-200mm (for -45 to 5 Celsius degree).
4.According to different temperature range, cold room can be divided degree Celsius cold room
Cold storage refrigeration unit
1) Condensing unit: Bitzer, Copeland, Maneurop, Frashcold..
2) Insulation Panel : PU, EPS
3)Other accessories:world-famous brands, like Danfoss, Castle, Electrical controller LG ...

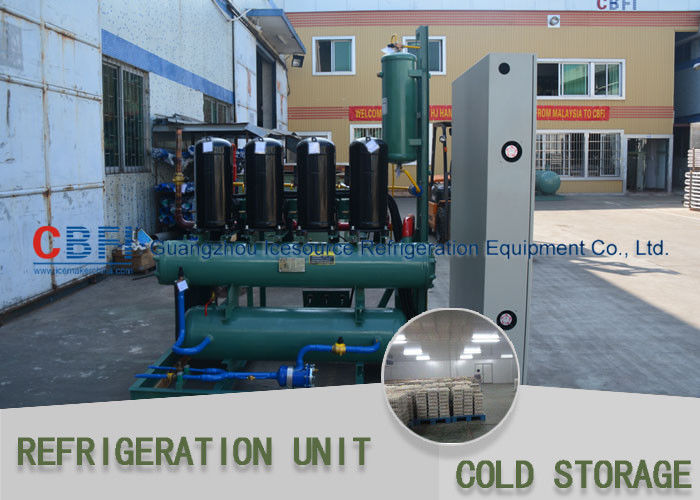

Germany brand Bitzer compressor condensing unit
Cold storage panels
Cold Room insulation panel use 100% polyurethane insulation panel, density about
40~45kg/m3, with gasket,flame retardant , panel thickness : 50mm ~200mm, standard
width of panel is 960mm
Cold storage door
1).Swing door and sliding door for choice.
2).Swing door : manual opended , automatic,etc.
3).Door board made with special pressing technology PU material.
4).Door frame : color steel or stainless steel.
5).Surface material : color steel or stainless steel with protecting film.
Cold storage control box
the compressor and air cooled work automatically.
Cold storage air cooler
Celling air cooler used to cool the air down inside the cold room
containerized cold room
Cold storage Packing
1. We have a large after-sale service team. All the technicians are very experienced, they
always go to different countries to serve customers like you.
2. The warranty of the whole machine is 12 months.
1. Our main products are: cube ice machine, tube ice machine, block ice machine, plate
ice machine, flake ice machine and cold room.
2.We have customer in China, Malaysia, Indonesia, Philippine, Maldives, Vietnam, Thailand,
Myanmar(Burma), Dubai, Syria, Iran, Saudi Arabia, Egypt, Lebanon, Sudan, Oman, Mexico,
Venezuela, Argentina, Nigeria, Angola, Congo, South Africa, Niger, Benin, Cameroon,
Burkina Faso, Guinea, Guinea-Bissau, Mozambique, Papua New Guinea……
1. The payment can be T/T,L/C,Western Union, Money Gram and in Cash.
2. The deposit is 30%, after we receive your deposit, we will start to produce the machine
for you. The balance 70% should be paid before shipping.
3. The delivery time normally is 30 days after receive the deposit.
4. If necessary, we will arrange the shipping for you.
