Product Details:
|
Capacity: | 1000kg To 30,000kg Per Day | Compressor Brand: | Germany / American Copeland |
---|---|---|---|
Evaporator: | Stainless Steel 304 | Condition: | Brand New |
Refrigerate: | R507/R404a | ||
Highlight: | Tube Ice Machine,Ice Tube Maker |

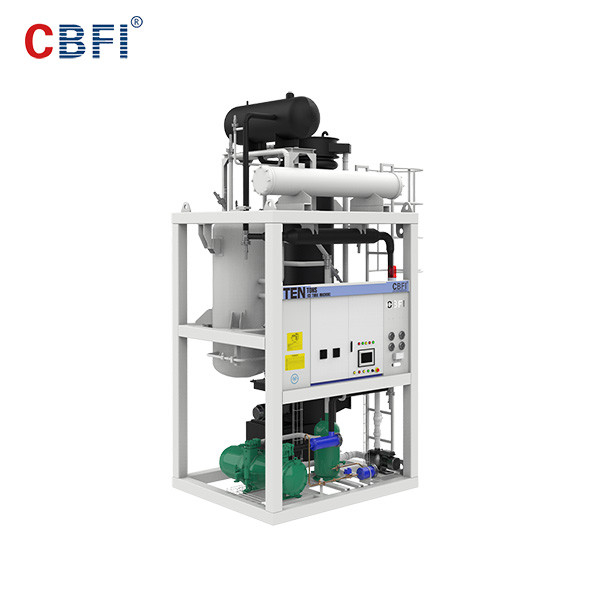

CBFI Integrated Edible Stainless Steel 304 Evaporator Tube Ice Machine In Guangzhou Manufacturer
Commercial Ice Tube Machine Features:
1. Use hot Freon gas to make ice fall off fast with the whole process takes only 150~180 seconds.
2. After the ice is off, the water of low temperature is used for ice-making, saving energy consumption and increasing the volume of production of ice.
3. With the unique water distributive pan and air mouth, the water can evenly flow on the tube wall of the evaporator spirally, so it improves the efficiency of heat transfer.
4. The use of stainless steel SUS304, accords with the health and safety requirements.
5. The use of air pressure control excludes the risk of rupture of the evaporator tube and the tube ice diameter can be adjusted according to customers' needs.
6. Adopt the highest quality spare parts of international brands, such as Germany compressor, Danmerk Danfoss expansion valves, Germany Siemens PLC System, etc.
How to use tube ice:
1. Freezing drinks, mix wines, cool foodstuffs, make ice pastries and keep fresh.
2. Widely used in hotel, bar, KTV, restaurant, catering, supermarket, ballroom, etc.
3. Food production process.
4. Cold accumulation.
5. Chemical industry process, etc.
Tube ice machine specification:
Model | Ice Making Capacity | Rated Power | Circulationg Water Pump Power | Cooling Water Pump Capacity | Cooling Fan Capacity | Ice Cutter Motor | Machine Dimension | Weight of Machine |
---|---|---|---|---|---|---|---|---|
No. | Ton/24h | Kw | Kw | Kw | Kw | Kw | WxHxL(mm) | KG |
TV10 | 1.0 | 4.28 | 0.55 | 1.1 | 0.18 | 0.75 | 1100x900x1760 | 900 |
TV20 | 2.0 | 7.77 | 0.55 | 1.5 | 0.37 | 0.75 | 1250x1000x1950 | 1200 |
TV30 | 3.0 | 12.33 | 1.1 | 1.5 | 0.56 | 0.75 | 1400x1100x2200 | 1500 |
TV50 | 5.0 | 21 | 1.5 | 2.2 | 0.75 | 1.5 | 1600x1400x2250 | 1800 |
TV100 | 10.0 | 29.2 | 1.5 | 4 | 1.5 | 1.5 |
1200x1200x3100 2300x1550x1800 |
3500 |
TV150 | 15.0 | 49 | 2.2 | 5.5 | 1.5 | 1.5 |
1500x1200x4500 2700x1950x2250 |
4250 |
TV200 | 20.0 | 58.5 | 2.2 | 5.5 | 2.2 | 2.2 |
1600x1300x4700 3100x2200x2250 |
6500 |
TV300 | 30.0 | 87.6 | 2.2 | 15 | 2.2 | 2.2 |
3000x2200x2500 2200x1900x6200 |
7200 |
1. The payment can be T/T, L/C, Western Union/ Money Gram and cash.
2. Deposit is 30%. Balance is 70%. When we get your deposit, we start to produce the machine. The balance should be paid before shipping.
3. The delivery time is about 40 days after the deposit.
4. We can also ship for you if you pay the freight to us.
