Crystal , Edible Ice Tube Making Machine With Stainless Steel 304 Evaporator

Basic Information
Place of Origin: China
Brand Name: CBFI
Certification: ISO9001,ISO14001,CE
Model Number: TV
Minimum Order Quantity: 1 set
Price: USD10000000
Packaging Details: Wooden case or Bubble film
Delivery Time: 35 working days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 50 sets/ month
Detail Information
Output: 1000kg~30,000kg/day Condition: Brand New
Tube Ice Diameter: 22mm, 28mm, 35mm Refrigerate: R22, R404a
Compressor: Germany / Germany Bock/ Taiwan Hanbell PLC: Germany Siemens
Valves: Denmark Danfoss/ Italy Castal
High Light:

Tube Ice Machine


Ice Tube Maker

Product Description

CBFI Continius Ice Making, Crystal, Edible Tube Ice Making Machine With Stainless Steel 304 Evaporator


Our tube ice machine:

1. Daily capacity is from 1000kg/24h to 30,000kg/24h.

2. Compressor: Germany , Germany Bock and Taiwan Hanbell.

3. Germany Siemens PLC control system, American Emerson oil filter, Danmerk Danfoss expansion valves, Italy Castal solenoid valves.

4. Tube ice diameter has 22mm, 28mm and 35mm for optional.

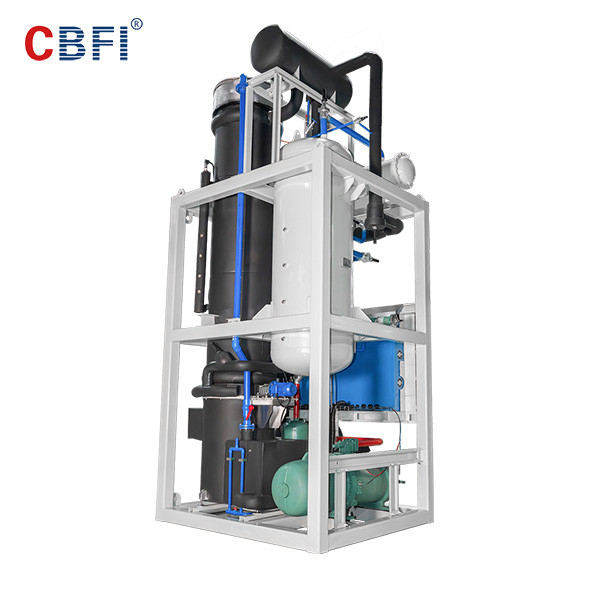

Crystal , Edible Ice Tube Making Machine With Stainless Steel 304 Evaporator 0

Crystal , Edible Ice Tube Making Machine With Stainless Steel 304 Evaporator 1


Tube ice is crystal and transparent with long storage period. It isn't likely to melt in a short time,good air permeability. It can be directly eaten or used to freeze drinks, mix wines, cool foodstuffs, make ice pastries and keep fresh, ect.





Commercial Ice Tube Machine Features:


1. Use hot Freon gas to make ice fall off fast with the whole process takes only 150~180 seconds.
2. After the ice is off, the water of low temperature is used for ice-making, saving energy consumption and increasing the volume of production of ice.
3. With the unique water distributive pan and air mouth, the water can evenly flow on the tube wall of the evaporator spirally, so it improves the efficiency of heat transfer.
4. The use of stainless steel SUS304, accords with the health and safety requirements.
5. The use of air pressure control excludes the risk of rupture of the evaporator tube and the tube ice diameter can be adjusted according to customers' needs.
6. Adopt the highest quality spare parts of international brands, such as Germany compressor, Danmerk Danfoss expansion valves, Germany Siemens PLC System, etc.




Model Ice Making Capacity Rated Power Circulationg Water Pump Power Cooling Water Pump Capacity Cooling Fan Capacity Ice Cutter Motor Machine Dimension Weight of Machine
No. Ton/24h Kw Kw Kw Kw Kw WxHxL(mm) KG
TV10 1.0 4.28 0.55 1.1 0.18 0.75 1100x900x1760 900
TV20 2.0 7.77 0.55 1.5 0.37 0.75 1250x1000x1950 1200
TV30 3.0 12.33 1.1 1.5 0.56 0.75 1400x1100x2200 1500
TV50 5.0 21 1.5 2.2 0.75 1.5 1600x1400x2250 1800
TV100 10.0 29.2 1.5 4 1.5 1.5



TV150 15.0 49 2.2 5.5 1.5 1.5



TV200 20.0 58.5 2.2 5.5 2.2 2.2



TV300 30.0 87.6 2.2 15 2.2 2.2
