Product Details:
|
Material: | 304 Stainless Steel | Power Supply: | 380V/50HZ/3P Etc. |
---|---|---|---|
Refrigerant: | R507 Or R404A | Compressor: | Germany |
Ice Diamter: | 22mm,29mm,35mm | ||
Highlight: | Tube Ice Machine,Ice Tube Maker |
CBFI

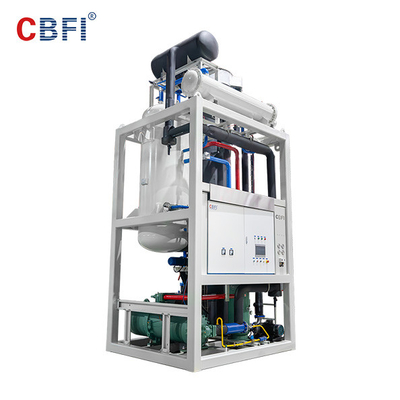

304 stainless steel tube ice machine for human consumption
TV Series Tube Ice Making machine
TV Series Tube Ice Maker Machine Models for Reference
Item No. | Production | Compressor Rated Power | Circulating Water Pump Power | Cooling Water Pump Power | Cooling Fan Power | Ice Cutter Motor Power |
|
|
Ton/24H | KW | KW | KW | KW | KW | L*W*H | KG | |
TV10 | 1.0 | 3.69 | 0.37 | 1.1 | 0.18 | 0.75 | 1320*950*1800 | 900 |
TV20 | 2.0 | 7.11 | 0.55 | 1.1 | 0.18 | 0.75 | 1400*1100*1800 | 1200 |
TV30 | 3.0 | 9.68 | 0.55 | 1.1 | 0.37 | 0.75 | 1500*1100*1950 | 1500 |
TV50 | 5.0 | 17.47 | 0.55 | 1.5 | 0.75 | 0.75 | 1600*1250*2200 | 1800 |
TV100 | 10.0 | 30.89 | 0.75 | 2.2 | 1.5 | 1.5 | 1700*1300*2200 | 3500 |
TV150 | 15.0 | 42.6 | 1.5 | 2.2 | 2.2 | 1.5 | 3000*1500*2200 | 4250 |
TV200 | 20.0 | 53.2 | 1.5 | 2.2 | 2.2 | 1.5 | 3500*1500*2200 | 6500 |
Machine running condition: water temperature 23°C, evaporate temperature -12°C,condensing temperature 40°C, reference valve under 50Hz power condition. Real production of machine will have a little change according to change of water temperature and ambient temperature. |
TV Series Tube Ice Maker Machine Features
1. Installation of ice tube machine is easy, only need connect water, power for the machine. All testing work will be finished in our factory.
2. Ice making water formed ice in the stainless steel round plate, then, automatically enter into ice falling off procedure, the whole process control by PLC program control, no need people monitor.
3. Evaporator of tube ice machine is round plate type, so, the machine is space save.
4. Ice outgoing automatically, can connect with automatically ice packing machine or converyor belt.
5. All surface that contact with water or ice are stainless steel or other rust-resistant material insured the sanitation of tube ice.

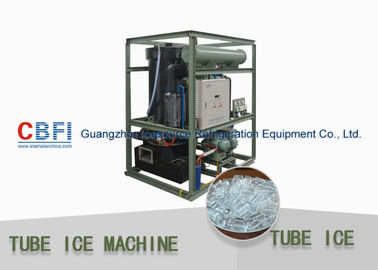

TV Series Tube Ice Maker Machine Pictures
