Product Details:
|
| Condition: | Brand New | Daily Capacity: | 1ton To 30 Ton |
|---|---|---|---|
| Compressor: | Germany / Germany Bock/ Taiwan Hanbell | Tube Ice Diameter: | 22mm, 28m, 35mm |
| Refrigerant: | R22/ R404a | Application: | Drinks And Eating |
| Cooling Way: | Air Cooling And Water Cooling | ||
| High Light: | Tube Ice Machine,Ice Tube Maker |
||

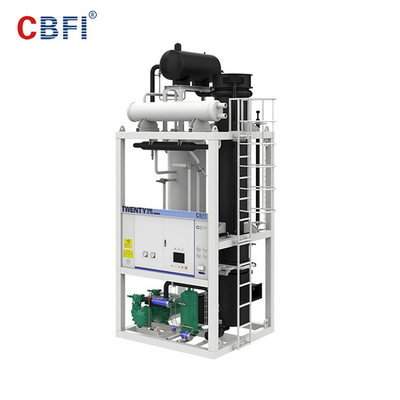

CBFI 5000kg/24h capacity, high outpet in summer, tube ice machine good price
Tube Ice Maker Machine Models for Reference
| Item No. | Production | Compressor Rated Power | Circulating Water Pump Power | Cooling Water Pump Power | Cooling Fan Power | Ice Cutter Motor Power |
Machine Dimension |
Weight of Machine |
| Ton/24H | KW | KW | KW | KW | KW | L*W*H | KG | |
| TV10 | 1.0 | 3.69 | 0.37 | 1.1 | 0.18 | 0.75 | 1320*950*1800 | 900 |
| TV20 | 2.0 | 7.11 | 0.55 | 1.1 | 0.18 | 0.75 | 1400*1100*1800 | 1200 |
| TV30 | 3.0 | 9.68 | 0.55 | 1.1 | 0.37 | 0.75 | 1500*1100*1950 | 1500 |
| TV50 | 5.0 | 17.47 | 0.55 | 1.5 | 0.75 | 0.75 | 1600*1250*2200 | 1800 |
| TV100 | 10.0 | 30.89 | 0.75 | 2.2 | 1.5 | 1.5 | 1700*1300*2200 | 3500 |
| TV150 | 15.0 | 42.6 | 1.5 | 2.2 | 2.2 | 1.5 | 3000*1500*2200 | 4250 |
| TV200 | 20.0 | 53.2 | 1.5 | 2.2 | 2.2 | 1.5 | 3500*1500*2200 | 6500 |
| Machine running condition: water temperature 23°C, evaporate temperature -12°C,condensing temperature 40°C, reference valve under 50Hz power condition. Real production of machine will have a little change according to change of water temperature |
Commercial used Tube Ice machine
1.Daily Capacity : 1 ~ 30 ton
2.Ice making cycle : 16 ~ 30 mins
3.Ice Diameter : 22mm,28mm,35mm.
Health: All CBFI Tube Ice Machine Evaporator are food grade stainless steel 304(SUS304) material, come from Japan. Same daily capacity may have different price according to the different ice diameter and gas.
Easy to Operate : Germany Siemens CPUmonitor the machine making ice and drop ice automatically, machine working condition display on the touch screen clearly, operate the machine by touch screen like your smart phone.
Turn key project : CBFI supply every necesary for completed tube ice plant to our customer, like ice storage bin for ice packing, ice packing machine and ice storage room. Customer just need to prepare the power and water supply when you got the machine.
We have customer in China, Malaysia, Indonesia, Philippine, Maldives, Vietnam, Thailand, Myanmar(Burma), Dubai, Syria, Iran, Saudi Arabia, Egypt, Lebanon, Sudan, Oman, Mexico, Venezuela, Argentina, Nigeria, Angola, Congo, South Africa, Niger, Benin, Cameroon, Burkina Faso, Guinea, Guinea-Bissau, Mozambique, Papua New Guinea……
