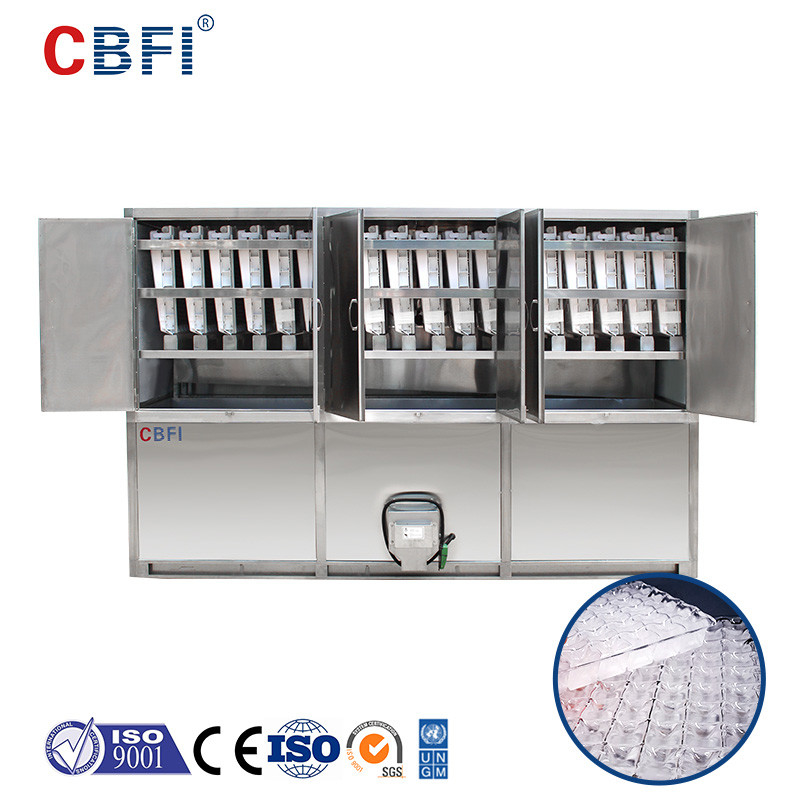

R404a Refrigerant 5 Ton Ice Cube Machine Energy Saving 380v 50Hz 3 phase

Basic Information
Place of Origin: Guangzhou, China
Brand Name: CBFI
Certification: ISO,CE,FE, ETC.
Model Number: CV1000~CV20000
Minimum Order Quantity: 1 set
Price: $12000
Packaging Details: Internation Standard Wooden Case
Delivery Time: 10~35 days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month
Detail Information
Compressor: Germany (or Adjust According To Your Requirement) Cooling Way: Water Cooled Or Air Cooled
Ice Size: 22*22*22mm, 29*29*22mm Or 38*38*22mm Evaporator: Nickeled Cube Ice Mould
Material: 304 Stainless Steel For Completed Frame Daily Capacity: 1 Ton To 20 Tons Per Day
Refrigerant: R22, R404a, R507 Electricity Components: South Korea LG(or Adjust Depends On Your Requirement)
High Light:

Commercial Ice Cube Machine

,

Ice Cube Maker Machine


Product Description

 R404a Refrigerant 5 Ton Ice Cube Machine Energy Saving 380v 50Hz 3 phase

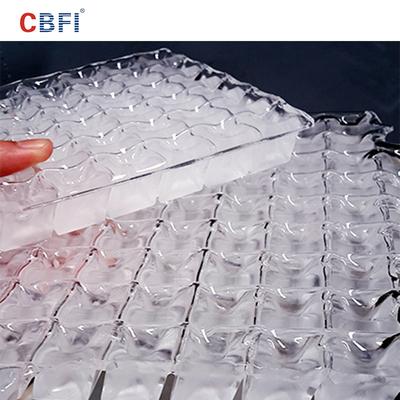

1. Cube ice
Cube ice is widely used in hotels, bars, hotels, canteens, restaurants, convenience stores, cold drinks shops and other places where ice is needed. The size of the ice can be adjusted to meet the different needs of customers for ice.

R404a Refrigerant 5 Ton Ice Cube Machine Energy Saving 380v 50Hz 3 phase 0






2. CBFI 5 tons cube ice machine



 Product Features

●  Automatic operation: PLC controlled, be able to automatically adjust the thickness of ice, forming ice, harvesting ice, and add water;

●  Need less personnel, single person can just handle it very well, save money for you;

●  The ice machine is made of stainless steel with long life;

●  Automatic water circulation cleaning system;

●  Meeting international safety and health standards in manufacturing;

●  The touch screen is used as the control panel to realize intuitive operation indication, intuitive fault indication, intuitive parameter setting, parameter implementation record, and automatic switch on and off at night.



3. 5 ton/24hours cube ice making machine Parameter



5 ton per day Large Capacity Cube Ice Machine for hotels & restaurants Parameters
Model Parameters CV1000 CV2000 CV3000 CV5000 CV10000
Daily output (T/24h) 1 2 3 5 10
Compressor Power 4.34kw 7.88kw 10.58kw 21kw 42kw
Fan Power for Cooling Tower 0.18kw 0.37kw 0.56kw 0.75kw 1.5kw
Cooling Pump Power 1.1kw 1.5kw 1.5kw 2.2kw 4kw
Unit size L(mm) 1800 1630 1980 2890 5730
W(mm) 1000 1600 1630 1780 1780
H(mm) 1700 1706 1860 1860 2130
Unit N.W.(kg) 800 1000 1200 1600 3000
♦ Size of cube ice:22*22*22mm / 29*29*22mm / 38*38*22mm
♦ Compressor Brand: Bitzer / Frascold; Refrigerant: R22/R404A; Cooling Method: Water Cooling / Air Cooling;
♦ Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately).
♦ Operating Conditions: T(water supply) : 20 ° C, T(ambient) : 32 ° C, T(condensing) : 40 ° C,T(evaporating):-10℃.
♦ (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.)
♦ (The final interpretation of the above metioned parameters is in Icesource, there will be no further notice, if there is any technical change.)



4. Customer ice plant show

R404a Refrigerant 5 Ton Ice Cube Machine Energy Saving 380v 50Hz 3 phase 1

R404a Refrigerant 5 Ton Ice Cube Machine Energy Saving 380v 50Hz 3 phase 2



5. About us

R404a Refrigerant 5 Ton Ice Cube Machine Energy Saving 380v 50Hz 3 phase 3

R404a Refrigerant 5 Ton Ice Cube Machine Energy Saving 380v 50Hz 3 phase 4

R404a Refrigerant 5 Ton Ice Cube Machine Energy Saving 380v 50Hz 3 phase 5

R404a Refrigerant 5 Ton Ice Cube Machine Energy Saving 380v 50Hz 3 phase 6
