Water Cooled 2 Tons Square Cube Ice Maker for Food Grade Plant

Basic Information
Place of Origin: Guangzhou, China
Brand Name: CBFI
Certification: ISO,CE,FE, ETC.
Model Number: CV1000~CV20000
Minimum Order Quantity: 1 set
Price: $12000
Packaging Details: Internation Standard Wooden Case
Delivery Time: 10~35 days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month
Detail Information
Compressor: Germany (or Adjust According To Your Requirement) Cooling Way: Water Cooled Or Air Cooled
Ice Size: 22*22*22mm, 29*29*22mm Or 38*38*22mm Evaporator: Nickeled Cube Ice Mould
Material: 304 Stainless Steel For Completed Frame Daily Capacity: 1 Ton To 20 Tons Per Day
Refrigerant: R22, R404a, R507 Electricity Components: South Korea LG(or Adjust Depends On Your Requirement)
High Light:

Commercial Ice Cube Machine

,

Ice Cube Maker Machine


Product Description



Water Cooled 2 Tons Square Cube Ice Maker for Food Grade Plant



Product Feautures

●  Sanitation & Safety: Fully adopted SUS304 stainless steel to build this machine; special water flow design, automatic cleaning, sanitary, safe, and fulfills the demand of QS test standard.

●  Low energy consumption: 85~90 kWh/ton in summer, 70~85 kWh/ton if the ambient temperature is lower than 23℃.

●  Large capacity: Single machine’s daily capacity can be 1 ton to 20 tons and production is stable, in hot summer we can still reach 90~95% of the rated capacity. If the ambient temperature is lower than 20℃, it can reach 100~130%.

●  Stable performance: Ice is crystal clear and hard, well-shaped and beautiful, can be stored for a long time.

●  Components brand: Compressor is German Bitzer or Italian Frascold, electric devices are Siemens or LG.

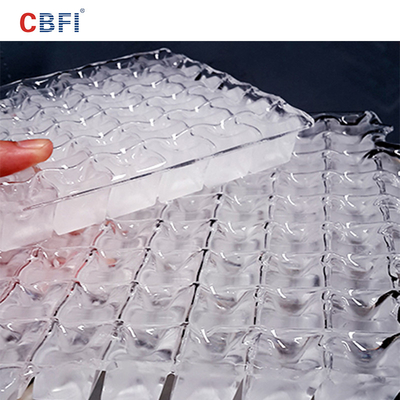

●  Ice cube size: 22*22*22mm / 29*29*22mm / 38*38*22mm or customized.

●  Automatic operation: PLC controlled, be able to automatically adjust the thickness of ice, forming ice, harvesting ice, and add water.

●  Fully automatic and need no human adjustment.

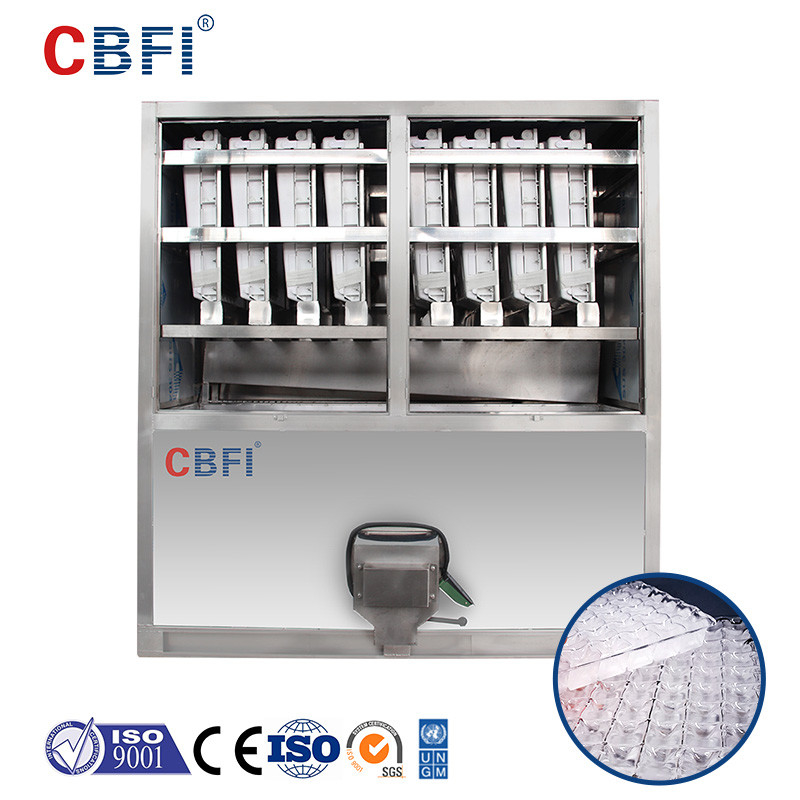

1. Cube ice machine

Square cube ice maker




2. 2 tons /24 hours Stainless Steel Square Cube Ice Maker

Water Cooled 2 Tons Square Cube Ice Maker for Food Grade Plant 1



4. 2 ton/24hours Commercial Used Square Cube Ice Maker Parameters



2 ton per day Large Capacity Cube Ice Machine for hotels & restaurants Parameters
Model Parameters CV1000 CV2000 CV3000 CV5000 CV10000
Daily output (T/24h) 1 2 3 5 10
Compressor Power 4.34kw 7.88kw 10.58kw 21kw 42kw
Fan Power for Cooling Tower 0.18kw 0.37kw 0.56kw 0.75kw 1.5kw
Cooling Pump Power 1.1kw 1.5kw 1.5kw 2.2kw 4kw
Unit size L(mm) 1800 1630 1980 2890 5730
W(mm) 1000 1600 1630 1780 1780
H(mm) 1700 1706 1860 1860 2130
Unit N.W.(kg) 800 1000 1200 1600 3000
♦ Size of cube ice:22*22*22mm / 29*29*22mm / 38*38*22mm
♦ Compressor Brand: Bitzer / Frascold; Refrigerant: R22/R404A; Cooling Method: Water Cooling / Air Cooling;
♦ Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately).
♦ Operating Conditions: T(water supply) : 20 ° C, T(ambient) : 32 ° C, T(condensing) : 40 ° C,T(evaporating):-10℃.
♦ (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.)
♦ (The final interpretation of the above metioned parameters is in Icesource, there will be no further notice, if there is any technical change.)



5. Supporting equipment



Cold room :storage ice and keep the ice in high quality.

RO water treatment equipment :Purify the water , make cube ice more clean and crystal.

Sealer : sealing the ice bag

Digital scale: scale the bag ice





6. Customer case



We have customer in China, Malaysia, Indonesia, Philippine, Maldives, Vietnam, Thailand, Myanmar(Burma), Dubai, Syria, Iran, Saudi Arabia, Egypt, Lebanon, Sudan, Oman, Mexico, Venezuela, Argentina, Nigeria, Angola, Congo, South Africa, Niger, Benin, Cameroon, Burkina Faso, Guinea, Guinea-Bissau, Mozambique, Papua New Guinea……



Water Cooled 2 Tons Square Cube Ice Maker for Food Grade Plant 2

7.About us

Water Cooled 2 Tons Square Cube Ice Maker for Food Grade Plant 3

Water Cooled 2 Tons Square Cube Ice Maker for Food Grade Plant 4

Water Cooled 2 Tons Square Cube Ice Maker for Food Grade Plant 5

Water Cooled 2 Tons Square Cube Ice Maker for Food Grade Plant 6



8.FAQ

1. Who are we?
We are based in Guangdong, China, start from 2010,sell to Domestic Market(19.00%),

Southeast Asia(16.00%),Africa(15.00%),Mid East(14.00%),South Asia(12.00%),South America(10.00%),
Eastern Asia(6.00%),Eastern Europe(4.00%),Oceania(4.00%). There are total about 101-200 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What can you buy from us?
Ice Block Machine,Ice Cube Machine,Ice Tube Machine,Ice Flake Machine,Cold Room

4. Why should you buy from us not from other suppliers?
We Guangzhou Icesource Refrigeration Equipment CO., LTD Specializes in innovating, designing, manufacturing various commercial and industrial ice machines and cold room with more than 10 years experience. Our Engineer department keep pursuing the newest technology.

5. What services can we provide?
Accepted Delivery Terms: FOB;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Cash;
Language Spoken:English,Chinese,Spanish
