● Sanitation & Safety: Fully adopted SUS304 stainless steel to build this machine; special water flow design, automatic cleaning, sanitary, safe, and fulfills the demand of QS test standard.
● Low energy consumption: 85~90 kWh/ton in summer, 70~85 kWh/ton if the ambient temperature is lower than 23℃.
● Large capacity: Single machine’s daily capacity can be 1 ton to 20 tons and production is stable, in hot summer we can still reach 90~95% of the rated capacity. If the ambient temperature is lower than 20℃, it can reach 100~130%.
● Stable performance: Ice is crystal clear and hard, well-shaped and beautiful, can be stored for a long time.
● Components brand: Compressor is German Bitzer or Italian Frascold, electric devices are Siemens or LG.
● Ice cube size: 22*22*22mm / 29*29*22mm / 38*38*22mm or customized.
● Automatic operation: PLC controlled, be able to automatically adjust the thickness of ice, forming ice, harvesting ice, and add water.
● Fully automatic and need no human adjustment.

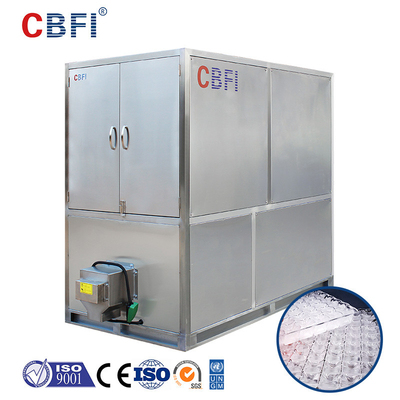

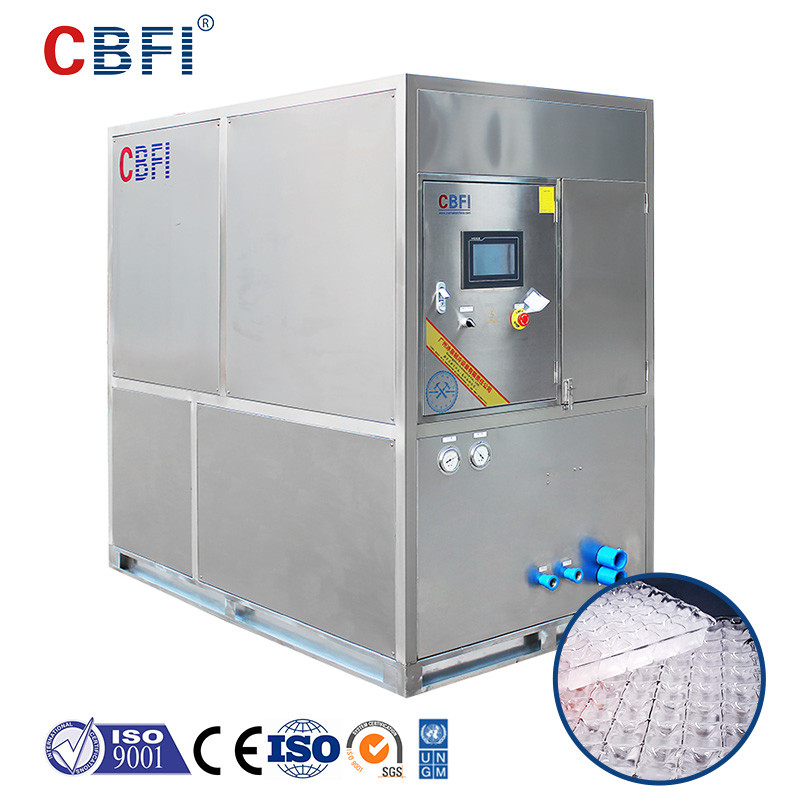

| 1 ton per day Large Capacity Cube Ice Machine for hotels & restaurants Parameters | ||||||
| Model Parameters | CV1000 | CV2000 | CV3000 | CV5000 | CV10000 | |
| Daily output (T/24h) | 1 | 2 | 3 | 5 | 10 | |
| Compressor Power | 4.34kw | 7.88kw | 10.58kw | 21kw | 42kw | |
| Fan Power for Cooling Tower | 0.18kw | 0.37kw | 0.56kw | 0.75kw | 1.5kw | |
| Cooling Pump Power | 1.1kw | 1.5kw | 1.5kw | 2.2kw | 4kw | |
| Unit size | L(mm) | 1800 | 1630 | 1980 | 2890 | 5730 |
| W(mm) | 1000 | 1600 | 1630 | 1780 | 1780 | |
| H(mm) | 1700 | 1706 | 1860 | 1860 | 2130 | |
| Unit N.W.(kg) | 800 | 1000 | 1200 | 1600 | 3000 | |
| ♦ Size of cube ice:22*22*22mm / 29*29*22mm / 38*38*22mm ♦ Compressor Brand: Bitzer / Frascold; Refrigerant: R507/R404A; Cooling Method: Water Cooling / Air Cooling; ♦ Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately). ♦ Operating Conditions: T(water supply) : 20 ° C, T(ambient) : 32 ° C, T(condensing) : 40 ° C,T(evaporating):-10℃. ♦ (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) ♦ (The final interpretation of the above metioned parameters is in Icesource, there will be no further notice, if there is any technical change.) |
||||||
Product Application
Cube ice is widely used in hotels, bars, hotels, canteens, restaurants, convenience stores, cold drinks shops and other places where ice is needed. The size of the ice can be adjusted to meet the different needs of customers for ice.
About us
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2010,sell to Domestic Market(19.00%),
Eastern Asia(6.00%),Eastern Europe(4.00%),Oceania(4.00%). There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Ice Block Machine,Ice Cube Machine,Ice Tube Machine,Ice Flake Machine,Cold Room
4. Why should you buy from us not from other suppliers?
We Guangzhou Icesource Refrigeration Equipment CO., LTD Specializes in innovating, designing, manufacturing various commercial and industrial ice machines and cold room with more than 10 years experience. Our Engineer department keep pursuing the newest technology.
5. What services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Cash;
Language Spoken:English,Chinese,Spanish
