Product Details:
|
| Ice Block Weight: | 2.5kg/5kg/10kg/15kg/20kg | Cooling Way: | Water Cooling/ Air Cooling |
|---|---|---|---|
| Material: | Stainless Steel | Rated Power Of Compressor: | 18.9kW |
| Expansion Valve: | Danmark - Danfoss Brand | Circulating Water Pump Power: | 1.5KW |
| Refrigerant: | R507/R404a | Cooling Water Pump Power: | 0.55KW |
| High Light: | 5 Tons Ice Block Machine,Water Cooling Ice Block Machine |
||

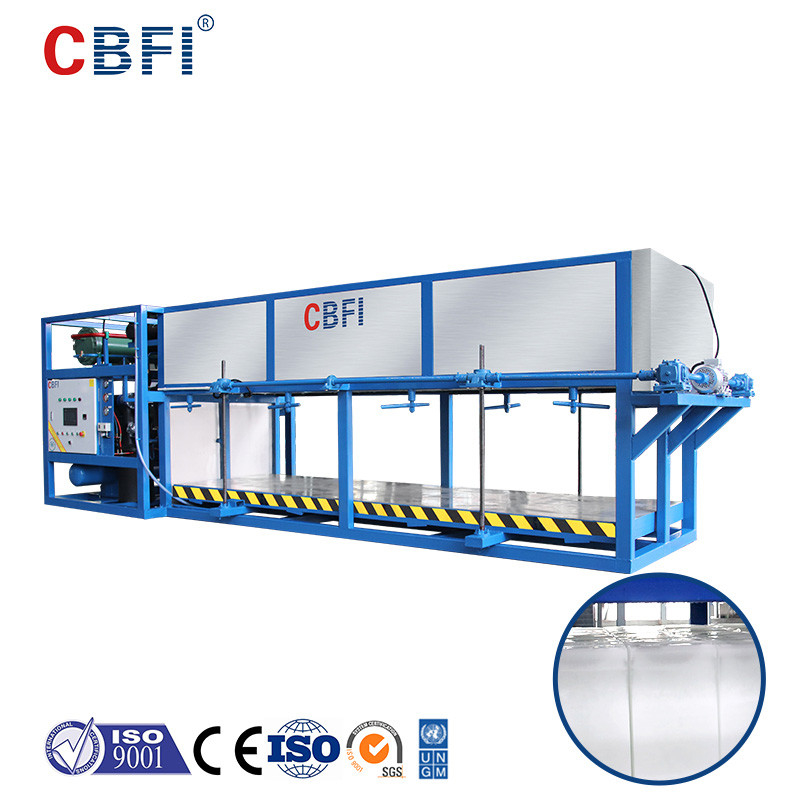

5 Tons Direct Cooling Block Ice Machine Energy Saving Water Cooling Machine
Automatic Block Ice Machine Advantages
1. Compact structuresmall size of equipment,small floor space
2. Small heat exchange temperature difference, more energy-saving
3. Simple and time-saving operation and maintenance
4. No pollution to the environment and ice,edible ice
5. No risk of saltwater corrosion and long service life of equipment
Main Features
1. Daily Capacity: 5 tons 24 hrs
2. Machine power supply: 3 phase industrial power supply
3. PLC controlling system, very easy to use.
4. Automatic operation to save your labor work
5. Compact design to save your area need.
6. The direct cooling block ice machine is a great choice for those who want an easy to operate and transport ice machine that is low in cost. This type of ice machine uses direct refrigeration, which means that the ice produced is hygienic and clean. Additionally, there is no need to use brine or worry about ice contamination with this type of machine.
Product parameter
| ABI50 5000kg Direct cooling ice block machine parameters | ||
| Item | Unit | Parameters |
|
Bitzer Compressor |
Spec | 6HE-28 |
| Refrigerating capacity(kw) | 61.8 | |
| Power(kw) | 20.5 | |
| Condenser | Heat exchange capacity(kw) | 95.2 |
| Condensing Temperature | Temperature(℃) | 38 |
| Evaporating Temperatue | Temperature(℃) | -10 |
| Ambient Temperature | Temperature(℃) | 32 |
| Water Supply Temperature | Temperature(℃) | 20 |
| Refrigerant | R507 | |
| Power Supply | V/P/HZ | 380/3/50 |
| Lifting Motor | Power(kw) | 5.5 |
| Cooling Tower | Power(kw) | 0.55 |
| Circulating Pump | Power(kw) | 0.75 |
| Cooling Pump | Power(kw) | 2.2 |
| 30kg Block Ice Size | L*W*H(mm) | 250*150*880 |
| 40kg Block Ice Size | L*W*H(mm) | 340*150*880 |
| 50kg Block Ice Size | L*W*H(mm) | 420*150*880 |
| Water Cooling Machine Size | L*W*H(mm) | 11000*2250*2500 |
Product details
Direct Ice Forming Method
With a direct cooling ice block machine, you can quickly and easily create perfect ice blocks for your next party or event. Made from durable stainless steel, this machine is built to withstand rust and corrosion. Plus, it comes with an electric lift that makes collecting your ice blocks a breeze.
Auto Control System
After a very short learning curve, operators can master controlling this machine, which uses a Siemens PLC and touch screen controller for system control.
Bitzer Compressor
Bitzer is a German compressor manufacturer with an excellent reputation for quality and after-sales service. Its compressors are used in ice machines all over the world and have been for more than 15 years.
Product Applications
The ports and docks have an icy factory that helps to keep aquatic products fresh. It also aids in cooling for transportation, fishery, food preservation, and special areas that need to be cooled.
