Product Details:
|
| Capacity: | 10 Tons | Filtering Device: | With Filtering Device |
|---|---|---|---|
| Condensing Mode: | Water-Cooled/Air-Cooled | Automatic Cleaning Device: | With Automatic Cleaning Device |
| Water Pump Material: | Stainless Steel 304 | Keywords: | Large Flake Ice Machine |
| Container: | International Standard Container | Refrigerant: | R507/R404a |
| High Light: | Stainless Steel Flake Ice Making Machine,Industrial 10T Flake Ice Making Machine |
||

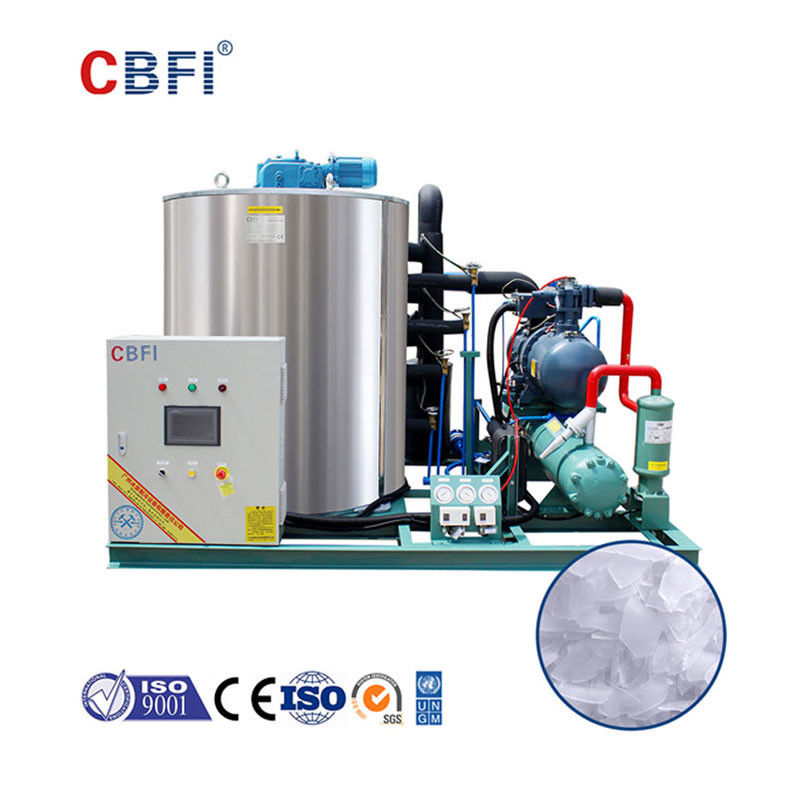

Industrial 10T Fully Stainless Steel Flake Ice Making Machine for Food Processing

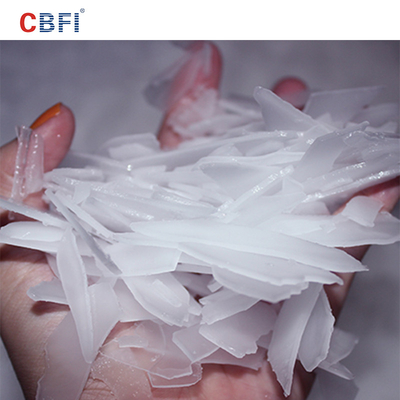

Has been used for aquatic food and meat products processing, leather processing, poultry slaughter, dye chemical industry, supermarkets or seafood restaurants or mines... And other areas, because of its clean ice and convenience as well as low-cost fresh food. With its features of cleanliness, symmetry, whiteness, crystal clarity and low temperature, the ice machine first keeps the fish, meat and chicken fresh, and then presents a good view to visitors and customers, which is warmly welcomed.
Flake Ice Machine Features
1. Excellent stability and reliability, long service life.
2. Humanized design, intelligent PLC touch screen controller
Intelligent PLC touch screen control system, user-friendly design, easy to operate. Intelligent historical fault recording function and troubleshooting guide make operation and maintenance easier. Operation time setting function, convenient operator, save energy, reduce cost.
3. Supercooled ice block, excellent quick cooling
Super-cold, dry, crisp, 100% supercooled ice with greater surface area and superior cooling ability.
4. Low maintenance and operation cost
Super performance to provide trouble-free operation, maintenance probability is far lower than other brands of shaving ice machine.
5. high efficiency, energy saving, cost saving
Top ice evaporator (Rotary drum)
(1. SS 304(stainless steel) Ice bucket (generator)
2. All materials meet the requirements of HACCP.
3. Stainless steel knives.
4. Efficient, energy-saving and efficient ice making
---- The unique water distribution plate and tuyere make the pure water flow uniformly to the wall of the evaporator in a spiral shape, improving the heat transfer efficiency.
---- A freezing, low temperature water. Used for making ice, saving energy and increasing the output of ice bucket
---- Pressure control eliminates the risk of evaporator drum rupture)
Flake Ice Machine Parameters
| Flake Ice Machine Parameters | |||||||
| Model | Daily output (T/24h) |
Cooling Method |
Compressor Power |
Fan Power for Cooling Tower | Cooling Pump Power |
Unit size (L*W*H mm) | Unit N.W. (kg) |
| BF500 | 0.5 | Air | 4.1kw | — | — | 1280*800*800 | 160 |
| BF1000 | 1 | Air | 7.44kw | — | — | 1320*900*900 | 210 |
| BF2000 | 2 | Air | 10kw | — | — | 1750*1100*1050 | 360 |
| BF3000 | 3 | Water | 8.45kw | 0.37kw | 1.5kw | 1500*1250*1260 | 1000 |
| BF5000 | 5 | Water | 13.49kw | 0.75kw | 2.2kw | 1900*1500*1470 | 1100 |
| BF6000 | 6 | Water | 19.94kw | 0.75kw | 2.2kw | 1900*1500*1470 | 1100 |
| BF8000 | 8 | Water | 24.2kw | 1.5kw | 2.2kw | 2400*1900*1860 | 1300 |
| BF10000 | 10 | Water | 33.8kw | 1.5kw | 4kw | 2500*2000*1860 | 1500 |
| BF15000 | 15 | Water | 44.5kw | 1.5kw | 4kw | 3350*2150*1960 | 3200 |
| BF20000 | 20 | Water | 64kw | 1.5kw | 5.5kw | 3400*2220*2230 | 4200 |
| BF25000 | 25 | Water | 76.5kw | 2.2kw | 5.5kw | 3700*2250*2510 | 4600 |
| BF30000 | 30 | Water | 93.7kw | 2.2kw | 7.5kw | 4700*2250*2520 | 5000 |
| BF40000 | 40 | Water | 118kw | 2.2kw | 7.5kw | 5000*2300*2700 | 7500 |
| ♦ Compressor Brand: Bitzer / Hanbell; Refrigerant: R507/R404A or Ammonia R717 ♦ Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately). ♦ Operating Conditions: T(water supply) : 20 ° C, T(ambient) : 32 ° C, T(condensing) : 38 ° C,T(evaporating):-20℃. ♦ (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) ♦ (The final interpretation of the above metioned parameters is in Icesource, there will be no further notice, if there is any technical change.) |
|||||||
