Product Details:
|
| Ice Making: | Flowing | Machine Size: | Large Medium Small |
|---|---|---|---|
| Capacity: | 5 Tons | Ice Shape: | Ice Cube |
| Cooing Way: | Water Cooling, Air Cooling, Evaporative Cooling | Solenoid Valve: | International Famous Brands |
| PLC Program: | Germany Brand Siemens | Application Fields: | Cold Drink Shops, Hotels, Bars, Restaurants |
| High Light: | 5 Ton Per Day Ice Cube Machine,PLC Ice Cube Machine,PLC Edible Ice Making Machine |
||

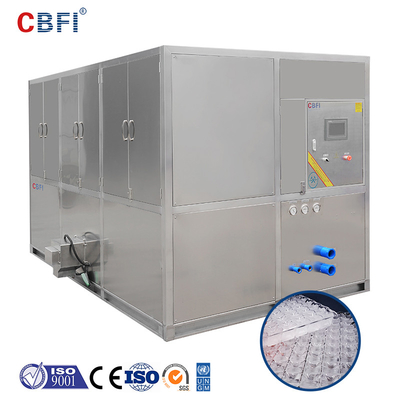

Edible Ice Making Machine 5 Ton Per Day Ice Cube Machine Selling Ice To Bars And Drinking Shops
5 tons edible ice cube ice machine is a kind of edible ice machine. Ice machine is located in hotels, hotels, bars, banquet halls, western restaurants, fast food restaurants, convenience stores and cold drink shops where ice is needed to meet every customer who needs to eat granular ice. The grain ice produced by the edible ice cube mechanism is crystal clear and clean. It is efficient, safe, energy saving, durable and environmental protection, the machine covers a small area, the price is not expensive, is one of the most widely used ice machine market.
Cube Ice Machine Features:
1. The cube ice machine is full of ice, crystal clear, beautiful and generous.
2. Low temperature ice making, dense icing, not easy to melt, fresh taste.
3. Microcomputer fuzzy control technology: water supply, ice making, deicing process all automatic completion.
4. Automatically enter the correct mode according to different fault types to ensure the stable and reliable operation of the machine.
5. Block ice machine adopts brand compressor, which can be refrigerated with R507 refrigerant.
6. Adopt full stainless steel shell, easy to take ice.
7. Users can start the automatic cleaning function according to their needs to clean the water circulation system at any time.
8. Block ice machine adopts brand host, forced air cooling heat dissipation, refrigeration system optimization design.
9. Polyurethane foam insulation, ice storage time is long.
Ice Cube Making Machine Parameters
| 5 ton per day Large Capacity Cube Ice Machine for hotels & restaurants Parameters | ||||||
| Model Parameters | CV1000 | CV2000 | CV3000 | CV5000 | CV10000 | |
| Daily output (T/24h) | 1 | 2 | 3 | 5 | 10 | |
| Compressor Power | 4.34kw | 7.88kw | 10.58kw | 21kw | 42kw | |
| Fan Power for Cooling Tower | 0.18kw | 0.37kw | 0.56kw | 0.75kw | 1.5kw | |
| Cooling Pump Power | 1.1kw | 1.5kw | 1.5kw | 2.2kw | 4kw | |
| Unit size | L(mm) | 1800 | 1630 | 1980 | 2890 | 5730 |
| W(mm) | 1000 | 1600 | 1630 | 1780 | 1780 | |
| H(mm) | 1700 | 1706 | 1860 | 1860 | 2130 | |
| Unit N.W.(kg) | 800 | 1000 | 1200 | 1600 | 3000 | |
|
1. Size of cube ice:22*22*22mm / 29*29*22mm / 38*38*22mm 4. Operating Conditions: T(water supply) : 20 ° C, T(ambient) : 32 ° C, T(condensing) : 40 ° C,T(evaporating):-10℃. |
||||||
Ice Cube Machine Cold Principle
Water cooling system, including cooling tower, water cooling condenser, cooling water pump. The water in the cooling tower chassis is pumped into the condenser (into and out of the condenser) through the water pump. After the heat exchange between the refrigerant in the condenser and the high temperature and high pressure, the cooling water return water under the action of pressure is sent to the water pipe at the top of the cooling tower and is sprinkled to the packing in the cooling tower from the wave water pipe (inclined to a 45 degree Angle). On the surface of the packing, a layer of water film is formed. Under the action of the cooling tower fan, the water is forced to evaporate and the heat from the system is sent out to the atmosphere. The remaining water flows into the chassis of the cooling tower and into the next cooling cycle.
