Product Details:
|
Capacity: | 10 Tons | Weight: | 3000kg |
---|---|---|---|
Ice Making Machine Size: | 5730*1780*2000(mm) | Cube Ice Size: | 22mmx22mmx22mm Or 29mmx29mmx22mm |
Ice Machine Frame: | Stainless Steel 304 | Refrigerant: | R507 /R404a |
Cooing Way: | Water Cooling, Air Cooling, Evaporative Cooling | Electrical Components: | Korea Brand LG |
High Light: | 10 Ton Ice Cube Machine,Industrial Ice Cube Machine |

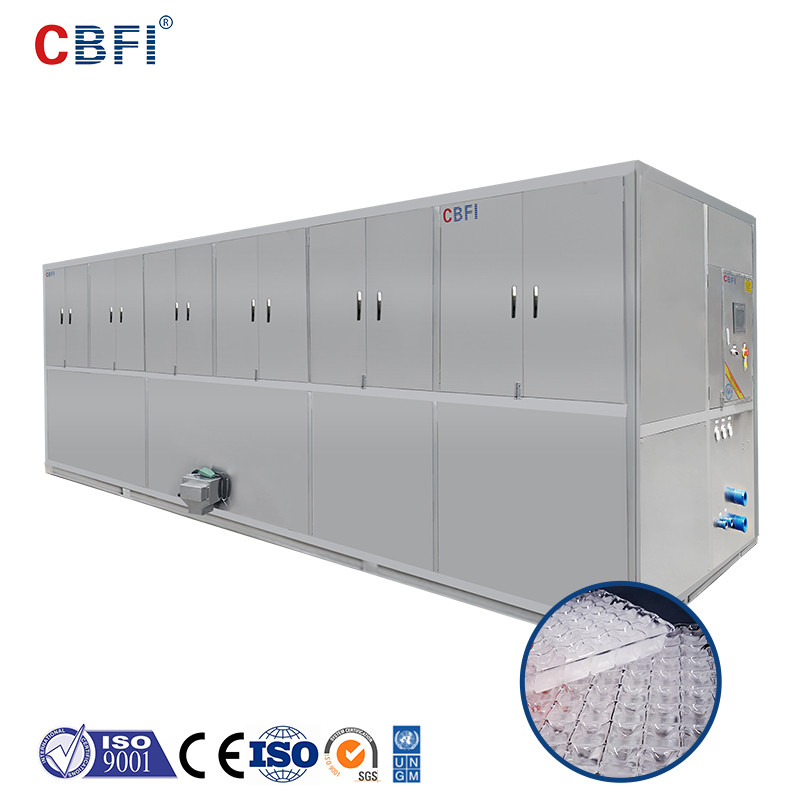

10 Ton Cube Ice Machine Industrial Cube Ice Production Plant China Manufacturer
In terms of capacity, small ice machines are divided into two categories: commercial and industrial. The capacity of industrial ice cube machines is generally more than 1 ton. So far, CBFI has developed 1 ton, 2 ton, 3 ton, 5 ton, 10 ton and 20 ton industrial cube ice machines. Like other ice machines from CBFI, Cube ice machines are popular all over the world for their excellent quality, long life and high cost performance.

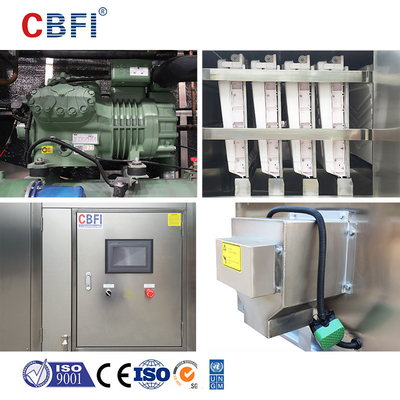

Cube Ice Maker Machine Features
1. Inventor of large commercial ice cube maker. Patent No.: ZL 2007 1 0030591.7.
2. Heat exchanger: improve the gas evaporation efficiency to prevent the compressor from being impacted by liquefied gas.
Nickel plated copper ice mold, resistant to 70% concentrated nitric acid corrosion.
3. Anti seismic frame is used to stick the refrigeration pipeline, and the pipeline will not be damaged during transportation and operation.
4. The hole at the bottom of the ice storage box is opened to discharge molten water, so as to ensure that the square ice is dry and not blocked by freezing.
5. The ice conveying motor runs with belt rather than chain, which is not easy to burn.
6. Lee joint is used for copper connection to make it more firm.
7. The ice thickness is automatically adjusted, which is not affected by the ambient temperature, and the thickness is more average.
8. Equipped with remote control to monitor the machine anytime and anywhere.
Large Capacity Cube Ice Machine Parameters
10 ton per day Large Capacity Cube Ice Machine for hotels & restaurants Parameters | ||||||
Model Parameters | CV1000 | CV2000 | CV3000 | CV5000 | CV10000 | |
Daily output (T/24h) | 1 | 2 | 3 | 5 | 10 | |
Compressor Power | 4.34kw | 7.88kw | 10.58kw | 21kw | 42kw | |
Fan Power for Cooling Tower | 0.18kw | 0.37kw | 0.56kw | 0.75kw | 1.5kw | |
Cooling Pump Power | 1.1kw | 1.5kw | 1.5kw | 2.2kw | 4kw | |
Unit size | L(mm) | 1800 | 1630 | 1980 | 2890 | 5730 |
W(mm) | 1000 | 1600 | 1630 | 1780 | 1780 | |
H(mm) | 1700 | 1706 | 1860 | 1860 | 2130 | |
Unit N.W.(kg) | 800 | 1000 | 1200 | 1600 | 3000 | |
1. Size of cube ice:22*22*22mm / 29*29*22mm / 38*38*22mm 2. Compressor Brand: Bitzer / Frascold; Refrigerant: R507/R404A or Ammonia R717; Cooling Method: Water Cooling / Air Cooling; 3. Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately). 4. Operating Conditions: T(water supply) : 20 ° C, T(ambient) : 32 ° C, T(condensing) : 40 ° C,T(evaporating):-10℃. 5. (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) 6. (The final interpretation of the above metioned parameters is in Icesource, there will be no further notice, if there is any technical change.) |
Automatic Ice Maker
Together with the automatic packaging ice maker and some auxiliary equipment, we can provide you with a turnkey solution for a fully automatic ice maker. Save money and earn more profits.
Application of Ice Cube Machine
Ice cubes are required in hotels, bars, inns, canteens, restaurants, convenience stores, cold drinks stores and other places.
