Product Details:
|
| Product Name: | Tunnel Freezer | Cooling Way: | Air Cooling System |
|---|---|---|---|
| Feature: | Split Type | Condition: | New |
| Key Selling Points: | Easy To Operate | Compressor Brand: | Emerson |
| Type: | Integrated | Dimension(L*W*H): | 2000mm*2020mm*2125mm |
| High Light: | 3000kgh Iqf Tunnel Freezer,SUS304 Iqf Tunnel Freezer,Industrial Iqf Tunnel Freezer |
||

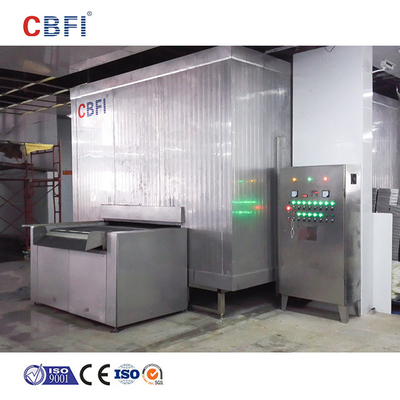

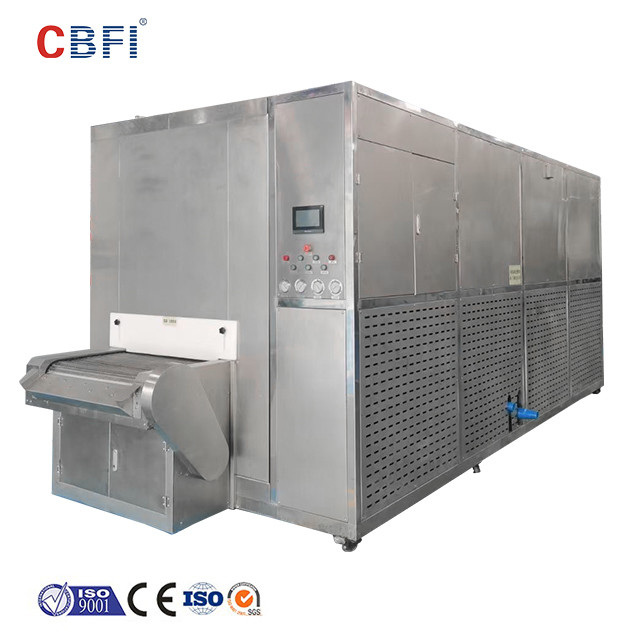

100-3000kgh Industrial Vegetables And Fruits Iqf Tunnel Freezer Price SUS304 Tunnel Freezer
Applications
According to the different conveyor belts, it can be divided into mesh belt tunnel quick freezer and plate belt tunnel quick freezer. Mesh Belt Tunnel Quick Freezer The mesh belt tunnel quick freezer is suitable for quick-freezing processing of seafood, poultry meat, vegetables, fruits, pasta, dairy products and other foods. The freezing amount can be 100Kg/h--2000Kg/h. Structural features:
1. Simple structure, convenient operation and long service life.
2. The conveying mesh belt is made of high-strength SUS304 stainless steel mesh, which is safer to use, and the frozen products will not leave traces directly on the surface of the mesh belt. Mesh belt width can be selected upon request.
3. According to the production requirements, the combination of single and double mesh belts can be selected.
4. The thermal insulation storage body is made of double-sided SUS304 stainless steel polyurethane storage board, with inspection doors, double-layer sealing devices and heating devices to prevent freezing.
5. The air guide device in the warehouse adopts high-efficiency and low-noise axial flow fan and thermal fluctuation technology, and the freezing efficiency is increased by about 15%-30%.
6. Use water to wash the cream to ensure cleanliness. The evaporator is made of aluminum alloy material, aluminum tube and aluminum fins, which is easy to clean. The design of variable blade distance can effectively prevent frost blocking and prolong the time of frost flushing. The unique liquid supply method makes the heat exchange more sufficient and the effect more obvious.
7. The imported frequency converter realizes inorganic speed regulation, and the freezing time can be adjusted continuously according to the needs, which can adapt to various freezing processes.
8. Stainless steel electric control box, stable quality, safe and reliable, easy to operate. The control system is equipped with a special alarm device and an emergency button to ensure the safe operation of the equipment.
| Continuous production efficient operation | The quick-freezing tunnel can operatecontinuously, with high productionefficiency and no need for manualhandling. The items are directly trans-ported to the tunnel for quick freezingthrough the conveyor belt, and thendirectly transported out to the nextstep of the process. |
| Energy saving | The refrigerating unit can automati-cally stop according to the amount ofincoming and outgoing goods and thetemperature in the tunnel. It not onlysaves the power consumption due tofrequent startup, but also improvesthe utilization rate and productionefficiency of the equipment. |
| Fresh and authentic | Quick freezing can maximize the fresh-ness and original nutritional value anddeliciousness of the product.Quicklypass through the maximum ice crystalformation zone within 30 minutes, thetemperature of the food center dropsfrom-1°℃ to -5°C, and the diameter ofthe formed ice crystals is<100um,which prevents ice crystals frompiercing the food cell wall and ensuresthat the juice does not flow out. |
Product Design
