Product Details:
|
| Type: | Solid Tube Ice Machine | Ice Making Capacity: | 10T/24h |
|---|---|---|---|
| Compressor: | Bitzer/Copeland/Hanbell | Host: | 2450*1830*1950 |
| Weight: | 3900kg | Condensing System: | 4kw |
| Refrigerant Injection Volume: | 500kg | Ice Shape: | Solid Tube Ice |
| High Light: | 10 Ton Tube Ice Maker Machine,Industrial Tube Ice Maker Machine |
||

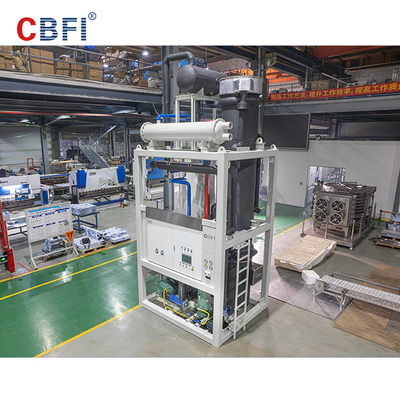

Good Price Industrial Large 10 Ton Tube Ice Maker Machine Crystal Solid Ice Tube Making Machine
In today's industrial world, the demand for ice has grown exponentially, and with it, the need for efficient, large-scale ice-making machines that can meet the requirements of various industries. One such machine is the 10-ton solid tube ice maker, a modern high-capacity ice-making unit that is quickly gaining popularity owing to its unique features and advantages.
The 10-ton solid tube ice maker is a device that is specifically designed to produce large quantities of solid ice that is ideal for industrial use. It comprises a robust, high-quality stainless steel shell that is coated to prevent corrosion. The machine follows a simple operation process, producing solid ice through a patented compression process that ensures high efficiency and reliability.
The machine's reliance on a solid tube design is one of its most significant advantages. Unlike traditional hollow ice tubes, the solid tubes used in this machine have unmatched durability, ensuring that the produced ice remains solid and free of any cracks or deformities. Additionally, the solid tube design also guarantees a higher output of ice per unit time than its traditional counterparts.
Another advantage of the 10-ton solid tube ice machine is its low power consumption. The machine's compressor is designed to minimize energy consumption, reducing the overall operational costs and making it an affordable option for industrial enterprises.
The 10-ton solid tube ice maker is versatile and can be used in a wide range of industries, including the fish farming, concrete mixing, and industrial process cooling. It is also ideal for use in high-ambient temperature environments as it can produce solid ice even in temperatures as high as 40°C.
Moreover, the machine's intelligent control system allows for easy operation, reducing the risk of operation failure. Its automatic cleaning system also makes maintenance work minimal and efficient.
Notice:
| 1 | The tube body of the evaporator of the tube ice machine is made of Q235 carbon steel; the standard material of the evaporator frame is hot-dip zinc; the default is not to paste heat preservation, and the price of heat preservation needs to be added by 2 points (polyurethane foam + stainless steel is used for heat preservation); |
| 2 | Standard working conditions: evaporation temperature -10°C, condensation temperature 40°C, ambient temperature 25°C. The design water supply temperature of the solid tube ice machine is 10°C; |
| 3 | Standard working conditions: evaporation temperature -10°C, condensation temperature 40°C, ambient temperature 25°C. The design water supply temperature of the solid tube ice machine is 10°C; |
| 4 | When the voltage of the equipment is non-standard 60HZ, add 8 points to the price; when the voltage is non-standard 50HZ, add 4 points to the quotation; companies with tonnages other than those listed in the table will not do it temporarily; |
| 5 | Tube ice machines above 10 tons (inclusive) do not contain refrigerant, and additional quotations are required; the cutting mechanism is optional (5 tons, due to size and space constraints, no cutting is required); |
| 6 | The above red values, dimensions, and weights are tentative estimates. The parameters in the table are for reference only. The company may update them without prior notice. The final interpretation right is subject to CBFI. |
