Product Details:
|
| Product Name: | Direct Cooling Ice Block Machine | Condenser: | Air/Water |
|---|---|---|---|
| Ice Shape: | Ice Block | Compressor: | Bitzer/Copeland/Hanbell |
| Ice Size: | Customer's Requirement | Control System: | PLC |
| Key Selling Points: | High-accuracy | Refrigerant: | R507/R404a |
| High Light: | Direct Cooling Ice Block Machine,R404a Direct Cooling Ice Block Machine |
||

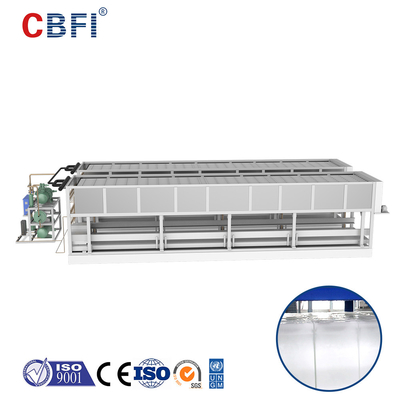

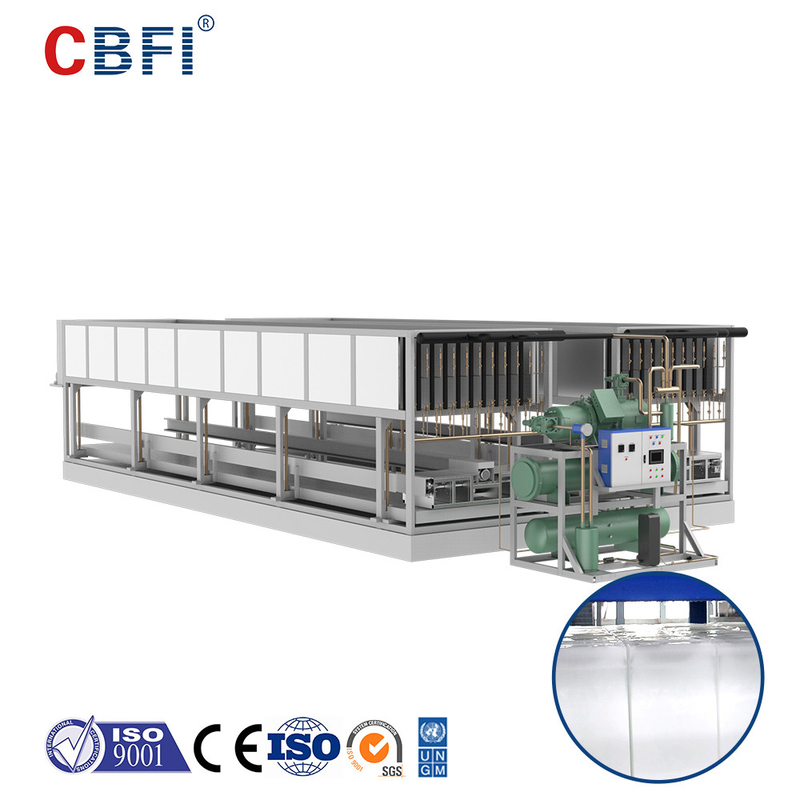

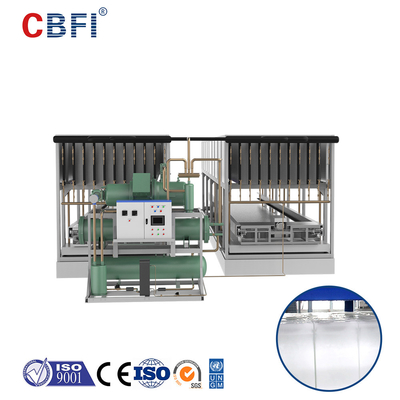

Direct Cooling Block Ice Machine Industrial Ice Making Machines Block Factory Europe South Africa Southeast Asia
The direct cooling block ice machine is the latest technology used in the industrial ice-making process. The idea behind its design is to ensure that water is converted efficiently into ice blocks of various sizes within the shortest possible time.
Characteristics of Direct Cooling Block Ice Machines
| Capacity | Direct cooling block ice machines have a large production capacity and can produce more ice blocks in a shorter time than traditional ice-making machines. This feature makes the machine ideal for industrial ice production. |
| Durability | The machines are built to last and can withstand harsh weather conditions, making them suitable for use in any location. |
| Energy-efficient | Direct cooling block ice machines use less energy to produce ice blocks, making them a more economical option for industrial ice-making. |
| Safety | The machines are designed with all the necessary safety features, including emergency stops and automatic shut-down systems, to prevent accidents and ensure worker safety. |
| Easy maintenance | Direct cooling block ice machines are designed with easy-to-access parts, making them easy to maintain and repair. |
Popularity of Direct Cooling Block Ice Machines in Europe
Europe is a region that holds great potential for the use of direct cooling block ice machines. The availability of technology and resources in the region makes it an ideal location for industrial ice production. Direct cooling block ice machines are increasingly being used in Europe to produce ice blocks for industrial and commercial use.
Popularity of Direct Cooling Block Ice Machines in South Africa
South Africa is known for its warm and humid climate, which makes the production of ice blocks necessary. Direct cooling block ice machines are becoming increasingly popular in South Africa due to their efficiency and ability to produce large volumes of ice blocks. They are also widely used in the fishing industry to preserve fish during transportation.
Popularity of Direct Cooling Block Ice Machines in Southeast Asia
The tropical climate in Southeast Asia makes the demand for ice blocks high. Direct cooling block ice machines have become increasingly popular in the region because of their efficiency and affordable cost. They are widely used in the food and beverage industry to preserve perishable goods and keep them fresh.
|
Direct Cooling Block Ice Machine Parameters
|
|||||||
|
No.
|
Cooling Capacity
(kw) |
Power
(kw) |
Lift Motor
(kw) |
Weight of Ice (kg)
|
Ice Size
|
Machine Size
|
|
|
L*W*H (mm)
|
L*W*H (mm)
|
||||||
|
ABI 10
|
12.02
|
4.22
|
2.2
|
5
|
120*100*500
|
2600*1100*2000
|
|
|
10
|
240*100*500
|
2600*1100*2000
|
|||||
|
ABI 20
|
22.9
|
7.7
|
3
|
5
|
120*100*500
|
2700*1510*2000
|
|
|
10
|
240*100*500
|
2700*1510*2000
|
|||||
|
ABI 30
|
30.9
|
10.33
|
4
|
10
|
240*100*500
|
3100*1650*2000
|
|
|
15
|
280*120*500
|
3400*1725*2000
|
|||||
|
ABI 50
|
61.8
|
20.5
|
5.5
|
20
|
260*120*730
|
4350*2310*2250
|
|
|
25
|
320*120*730
|
4500*2165*2250
|
|||||
|
No.
|
Cooling Capacity
(kw) |
Power
(kw) |
Lift Motor
(kw) |
Weight of ice (kg)
|
Ice Size
|
Machine Size
|
|
|
L*W*H (mm)
|
Compressor unit L*W*H (mm)
|
Evaporator L*w*H (mm)
|
|||||
|
ABI 100
|
95.8
|
32.22
|
7.5
|
25
|
320*120*730
|
6450*2600*2250 (one-piece)
|
|
|
11
|
30
|
310*150*730
|
2400*1700*2000
|
4900*2110*2250
|
|||
|
ABI 150
|
142.4
|
47.8
|
11
|
30
|
310*150*730
|
2950*2000*2250
|
5550*2460*2250
|
|
40
|
410*150*730
|
2950*2000*2250
|
5550*2460*2250
|
||||
|
ABI 200
|
185.4
|
61.5
|
15
|
40
|
410*150*730
|
3025*2200*2250
|
6800*2460*2600
|
|
50
|
350*180*950
|
3025*2200*2250
|
3800*2560*2600
|
||||
|
ABI 300
|
249.9
|
85.5
|
22.5
|
40
|
410*150*730
|
3325*2200*2500
|
6800*2460*2250*3
|
|
50
|
350*180*950
|
3325*2200*2500
|
6800*2460*2250*3
|
||||
|
1.Operating conditions: ambient temperature 32℃, water supply temperature 20℃. Due to the continuous updating of product technology, if the data is changed, it will be reflected in the quotation plan. The above data is for reference only, which is subject to actual conditions.
2.The above information is according to water cooled condenser spec. Size of machine is without cooling tower, cooling tower usually install in the outside.
3.Operating condition: water temperature: 23 Cent degree, evaporate temperature:-12 Cent degree, condensing temperature 40 Cent degree, reference valve under 50 Hz power supply. Real production of machine will have a little change according to change of water temperature and ambient temperature.
|
|||||||
