Product Details:
|
| Ice Temperature: | -5℃ | Refrigerant: | R507/R404A |
|---|---|---|---|
| Capacity: | 1-60ton/24h | Product Name: | Flake Ice Machine |
| Compressor Brand: | Bitzer/Copeland/Hanbell | Ice Thickness: | 1.0mm-2.5mm |
| Key Selling Points: | Automatic | Ice Diameter: | 12-45mm |
| High Light: | Automatic Industrial Ice Flake Machine,Industrial Ice Flake Machine,Ice Flake Machine 1 Ton /24h |
||

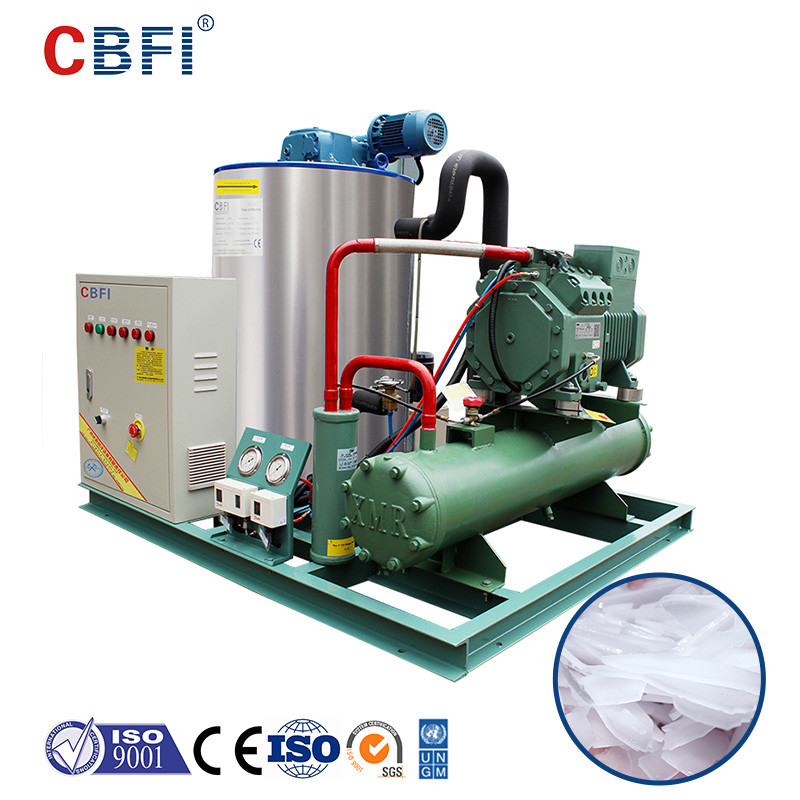

Industrial Ice Flake Machine with Capacity 1-60ton/24h and Flake Ice Shape
What is Flake Ice?
Flake ice is a type of ice that is created by rapidly freezing water on a cylinder. As the ice forms, it breaks off into thin flakes that are semi-translucent and have a texture similar to snow. Flake ice is ideal for industries that require a large amount of ice, such as fisheries, chemical and pharmaceutical companies, concrete mixing plants, and food processing industries.
Advantages of Flake Ice
1. Large Surface Area: Flake ice has a larger surface area than other types of ice, which means it cools products faster and more efficiently. This makes it ideal for use in the food processing industry, where rapid cooling is necessary.
2. Low Production Cost: Flake ice machines use less water and energy than other types of ice machines, which makes them more cost-effective to operate and maintain.
3. Versatile Use: Flake ice can be used in a variety of industries and applications, such as cooling, preservation, and transportation. It can also be used for entertainment purposes, such as snow displays.
4. Hygienic: Flake ice is hygienic and safe for consumption, making it ideal for use in the food and beverage industry.
5. Easy Storage: Flake ice is easy to store and transport, as it does not clump together like other types of ice. This makes it a popular choice for industries that require a large amount of ice on a regular basis.
Why Choose an Industrial Flake Ice Machine?
An industrial flake ice machine is the best option for businesses that require a large amount of ice on a regular basis. Unlike other types of ice machines, flake ice machines are capable of producing a large amount of ice in a short amount of time, making them ideal for industrial and commercial applications.
In addition to their efficiency and versatility, flake ice machines are also durable and long-lasting. They are designed to handle heavy usage and are built to withstand harsh environments, making them the ideal choice for industries such as fisheries and concrete mixing plants.
|
Flake Ice Machine Parameters
|
|||||||
|
Model
|
Daily Output (T/24h)
|
Cooling method
|
Compressor Power
|
Fan Power for Cooling Tower
|
Cooling Pump Power
|
Unit Size
(L*W*H mm)
|
Unit N.W. (KG)
|
|
BF 1000
|
1
|
Air
|
7.44 kw
|
--
|
--
|
1320*900*900
|
210
|
|
BF 2000
|
2
|
Air
|
10 kw
|
--
|
--
|
1750*1100*1050
|
360
|
|
BF 3000
|
3
|
Water
|
8.45 kw
|
0.37 kw
|
1.5 kw
|
1500**1250*1260
|
1000
|
|
BF 5000
|
5
|
Water
|
13.49 kw
|
0.75 kw
|
2.2 kw
|
1900*1500*1470
|
1100
|
|
BF 6000
|
6
|
Water
|
19.94 kw
|
0.75 kw
|
2.2 kw
|
1900*1500*1470
|
1100
|
|
BF 8000
|
8
|
Water
|
24.2 kw
|
1.5 kw
|
2.2 kw
|
2400*1900*1860
|
1300
|
|
BF 10000
|
10
|
Water
|
33.8 kw
|
1.5 kw
|
4 kw
|
2500*2000*1860
|
1500
|
|
BF 15000
|
15
|
Water
|
44.5 kw
|
1.5 kw
|
4 kw
|
3350*2150*1960
|
3200
|
|
BF 20000
|
20
|
Water
|
64 kw
|
1.5 kw
|
5.5 kw
|
3400*2220*2230
|
4200
|
|
BF 25000
|
25
|
Water
|
76.5 kw
|
2.2 kw
|
5.5 kw
|
3700*2250*2510
|
4600
|
|
BF 30000
|
30
|
Water
|
93.7 kw
|
2.2 kw
|
7.5 kw
|
4700*2250*2520
|
5000
|
|
BF 40000
|
40
|
Water
|
118 kw
|
2.2 kw
|
7.5 kw
|
5000*2300*2700
|
7500
|
|
1. Compressor brand: Bizter / Hanbell; Refrigerant: R507/R404R.* Power supply: voltage 380 V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately)
2. Operating conditions: T (water supply):20℃, T (ambient): 32℃, T (condensing): 38℃, T (evaporating): -20℃. 3. Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature. 4. The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there is any technical change. |
|||||||
