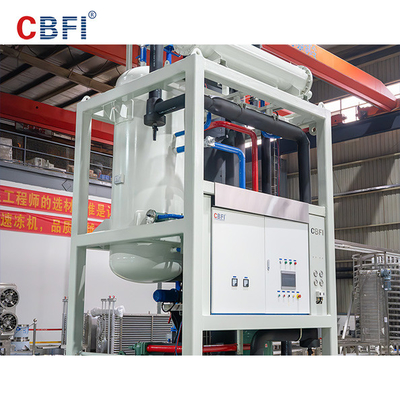

3 Tons Industrial Water Cooling Ice Tube Machine Tube Ice Business For Sale

Basic Information
Place of Origin: Guangzhou, China
Brand Name: CBFI
Certification: ISO, CE, BV, SGS
Model Number: TV30
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Standard wooden case for the 3 ton Tube ice machine
Delivery Time: 30 work days
Payment Terms: Western Union, L/C, T/T, MoneyGram
Supply Ability: 60 set per month
Detail Information
Brand Name: CBFI Ice Shape: Tube Shape
Daily Production Cpacity: 3000kg Dimension: 1300x1100x2200 Mm
Machine Weight: 1500 Kg Refrigerant: R22/R404a/R507
Power Supply: Three Phase Industrial Power Supply Certification: CE Certificate
High Light:

Tube Ice Machine

,

Ice Tube Maker


Product Description

3 Tons Industrial Water Cooling Ice Tube Machine Tube Ice Business For Sale



Tube Ice Machine Product Description
Tube ice machine is a kind of ice machine. It is named because the shape of the ice cubes it produces is a hollow tube of irregular length. The cylindrical hollow tubular ice with an inner hole of 5mm to 15mm and a length of 25mm to 42mm has a variety of sizes to choose from. The outer diameters are: 22, 29, 32, 35mm, etc. The name of the ice produced is tube ice. The contact area is the smallest among the existing ice types in the market, and the anti-thawing property is the best. It is suitable for drink preparation, decoration, food storage and preservation, etc., so most of them are edible ice.


Ice Tube Machine Product Advantages

1. High efficient ice production, stable and safe operation

2. Ice making water can be recycled, save water

3. Making every ton of ice just need 80kw.h, saving electricity power

4. Use of stainless steel SUS304, make sure the ice is purified and safe

5. The thickness of ice can be adjust based on your need

6. Adopt the highest quality spare parts of international brands, such as , Danfoss, Siemens, etc.

7. Adopt PLC control system, make ice, deice, clean machine and check problems automatically



Tube Ice Machine Parameters
Model
Daily Output (T/24 h)
Compressor Power
Fan Power for Cooling Tower
Cooling Pump Power
Unit Size (L**H *W mm)(Integrated Type)
Unit N.W.(KG)
TV 10
1
4.1 kw
0.25 kw
1.1 kw
1100*900*1780
900
TV 20
2
7.44 kw
0.25 kw
1.5 kw
1250*1000*1950
1200
TV 30
3
10 kw
0.55 kw
1.5 kw
1300*1100*2200
1500
TV 50
5
19.9 kw
0.55 kw
2.2 kw
1600*1400*2250
1800
Model
Daily Output (T/24h)
Compressor Power
Fan Power for Cooling Tower
Cooling Pump Power
Unit Size (L*W*H) (Split type)
Unit N.W.(KG)
Main Host
Brine Tank
TV100
10
27.9 kw
1.5 kw
4 kw
1900*1600*1850
1200*1200*3390
3500
TV100+
10
39.8 kw
1.5 kw
4 kw
2400*1700*2000
1200*1200*3390
3700
TV150
15
46.4 kw
1.5 kw
5 kw
2700*2000*2200
1500*1200*4250
4250
TV200
20
55.7 kw
2.2 kw
7.5 kw
2800*2200*2500
1500*1200*4700
6500
TV300
30
83.6 kw
2.2 kw
7.5 kw
3100*2200*2500
1800*1500*5700
7200
TV400
40
111.4 kw
2.2 kw
11 kw
3900*2250*2500
2000*1500*6800
8300
TV500
50
139.3 kw
3.75 kw
15 kw
4500*2250*2500
2200*1800*7200
9500
1. Compressor brand: Bitzer /Franscold ; Refrigerant: R 22/ R 404 A; Cooling Method: water cooling / air cooling.
2. Power supply:voltage 380V/3P/50Hz(for non-standard voltage, unit configuration needs to be calculated separately ).
3. Operating conditions: T (water supply):20℃ , T (ambient): 32℃, T(condensing):40℃, T (evaporating):-12℃.
4. (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.)
5. (The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there any
technical change. )

Fields of Application

Tube ice is widely used to put into different kinds of drincks like cocktail, whiski, coca cola, milk tea, etc. It can make drink delicious and cool. Drinks with tube ice are popular with Hotels, restaurants, nightclubs, concerts, festivals, markets, pastry shops, weddings, celebrations, etc.



Suggestions of Operating a Tube Ice Plant

1. purify water to make ice reach food standard with RO water filter;

2. store purified water with water tank;

3. precool ice making water to improve refrigeration efficiency with water chiller;

4. make ice automatically by tube ice machine;

5. pack ice into bags with ice packing equipment;

6. store tube ice in low temperature in ice storage cold room;

7. deliver the tube ice to market.



Drawing of Tube Ice Plant

3 Tons Industrial Water Cooling Ice Tube Machine Tube Ice Business For Sale 0

Note: The size of 3 ton tube ice plant is about 80㎡(10m*8m). There is a whole set of equipment, including 3 ton tube ice machine, ice bin, RO water filter, water tank, 20 m³ -5~-10℃ ice storage cold room, ice packing equipment.



Let Us Serve You

1.  Offer online service all the time

2.  Design the ice factroy for you

3.  Offer you detailed and professional manual book, videos and pictures to show you how to install and operate the machine

4.  Send technicians to your factory to install for you as long as you need



Delivery

Pack all the equipment into satndard wooden cases

Load the packed equipment into containers

Transport the equipment to the port

Deliver to your local port



3 Tons Industrial Water Cooling Ice Tube Machine Tube Ice Business For Sale 1  3 Tons Industrial Water Cooling Ice Tube Machine Tube Ice Business For Sale 2
