Product Details:
|
Product Name: | 20 Tons Tube Ice Maker Machine | Dimension: | 3100*2200*2250mm (Machine Unit) 1600*1300*4700mm (Evaporator) |
---|---|---|---|
Machine Weight: | 5000 Kg | Refrigerant: | R507/R404a/R507 |
Power Supply: | 3 Phase Power Supply Based On Your Local Electricity | Ice Shape: | Tube Ice |
Ice Outside Diameter: | 22mm,28mm,38mm | Cooling Way: | Water Cooling |
High Light: | Tube Ice Machine,Ice Tube Maker |

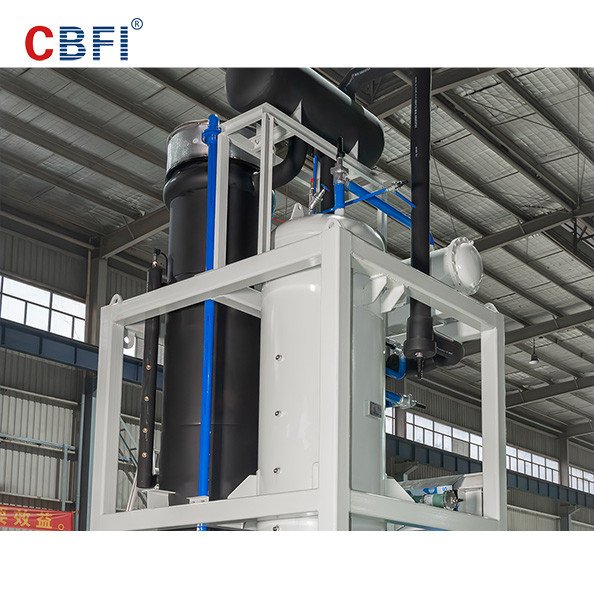

20 Ton Tube Ice Maker Machine With PLC Automatic Controling System
1. Compressor: German
2. PLC Controling System: Germany SIMENS
3. Expansion valve: Denmark DANFOSS
4. Solenoid valve of Water supply: Denmark DANFOSS
5. Oil filter: America Emerson
6. High and low pressure meter: Switzerland REFCO
7. Electrical components: South Korea LG (LS)
8. Circulating water pump: China NanFang
9.ouch Screen: China MCGS
Ice Tube Machine Operation Conditions
1. Power Supply: Indusrial Electricity, 3 phase
2. Ambient Temp.: 32℃
3. Condensing Temp.: 38℃
4. Water Supply Temp.: 20℃
5. Evaporation Temp.: -12℃
Product Features
1. Material is stainless steel SUS304, make sure the ice is purified and safe;
2. Adopt the highest quality spare parts of international brands, such as , Danfoss, Siemens, etc.;
3. Adopt PLC control system, make ice, deice, clean machine and check problems automatically;
4. High efficient ice production, stable and safe operation;
5. Ice making water can be recycled, save water;
6. Making every ton of ice just need 80kw.h, saving electricity power;
7. Several dimensions for your choices. Outside diameters can be 22mm, 28mm, 38mm; inside diameter can be 5~10mm. Length is 25~42mm;

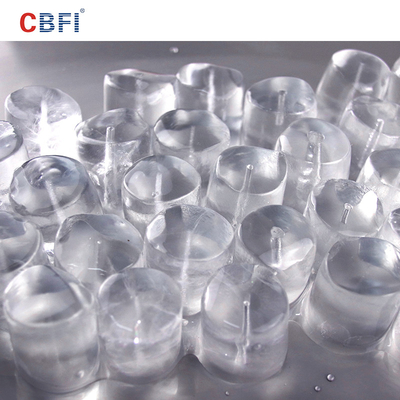

8. Ice is tube shape, hollow cylindrical ice;
9. Ice is hard and thick, has longer melting time;
10. Ice is 100% transparent, purified, bacteria-free, reaching food grade;
Application
Tube ice is widely used in many occasions, such as wedding, bars, hotels, parties, restaurants, cold drink stores and so on.
Tube ice is mixed in the drinks like cocktail, Whisiky, milk tea, Coca Cola, Coffee, etc. to make the drinks tasty.
A Whole Set of Machine Equipment for A 20 Ton Tube Ice Plant
1000L RO water filter to purify water to make ice reach food standard
1000L Water Tank to store purified water
Water Chiller to precool ice making water to improve refrigeration efficiency
Ice packing equipment to pack ice into bags like 2kg, 5kg, 10kg, 15kg, 20kg
100m³ ice storage cold room: store tube ice in low temperature
Suggestions of Operating a Tube Ice Plant
1.purify water to make ice reach food standard with RO water filter;
2. store purified water with water tank;
3. precool ice making water to improve refrigeration efficiency with water chiller;
4. make ice automatically by tube ice machine;
5. pack ice into bags with ice packing equipment;
6. store tube ice in low temperature in ice storage cold room;
7. deliver the tube ice to market.
CBFI Is Your Best Choice
Located in Guanzghou, CBFI has more than 15-year eaperience in producing ice macker machines and cold rooms. Our company has been offered to customers all around the wourld, including North America, South America, Euroup, Africa, South Eastern Asia, easter Asia, the Middle East, etc, more than 130 countries.
CBFI has high-efficient and expertise R&D team, professional technicians. And we can offer you highly efficient aftersales service. Upon now, we have achieved 1 invention patent and 12 practical patents, rated as Guangdong High-tech Enterprise and Guangdong Top 500 Innovation Enterprise.
Customer Cases
We have helped many customers build up their tube ice factory, inclusind 3 tons, 5 tons, 10 tons, 20 tons, 30 tons tube ice facory.
