Product Details:
|
| Compressor: | Germany / Germany Bock/ America Copeland | Expansion Valve: | Denmark Danfoss |
|---|---|---|---|
| Solenoid Valve: | Italy Castel | Refrigerant: | Freon R22/R404a |
| Material Of Tube Pipe: | Stainless Steel 304 | Voltage: | AC / 3 Phase / 200-600V |
| Tube Ice Diameter: | 22 Mm, 28 Mm, 38 Mm | Tube Ice Length: | 30 Mm To 50 Mm |
| High Light: | SS304 Ice Tube Machine,30000Kg Ice Tube Machine |
||

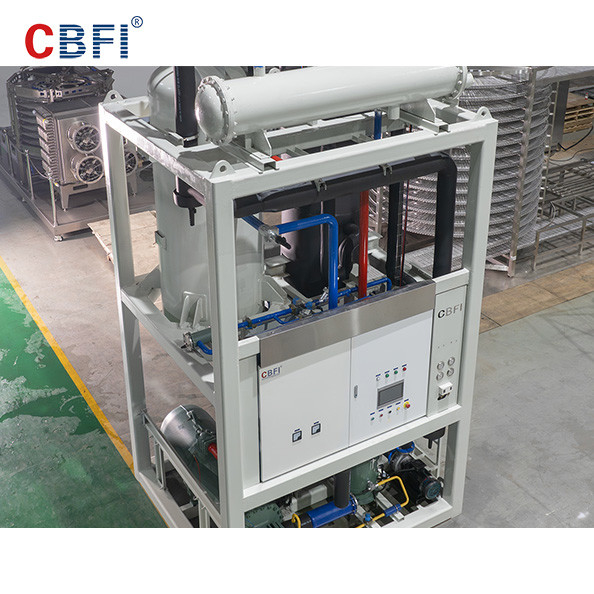

Stainless Steel 304 600V Ice Tube Machine 30000Kg Daily Capacity
The tube ice produced by the tube ice machine is uniform in size, clean and transparent. The machine is produced with high-quality accessories and automatically controlled. The machine design shortens the deicing time as much as possible, thereby improving the ice making efficiency.
Tube Ice Machine Features
1. Ice tube machine for produce food grade ice too, tube ice is edible ice.
2. Diameter of tube ice we usually design it as 22mm, 28mm, or 35mm,
Length of ice is about 30 mm to 50 mm.
3. Daily capacity of ice tube machine can be from 1 ton to 40 tons.
4. Tube ice macine was designed save space, high efficiency heat exchange, and energy saving, so it is widely favored by market.
5. Perfect design: adopt 3D simulation assembly, compact structure,easy operate and maintain
6. Health: all the metal of the ice-making machine that will touch with water are SUS304,impurities and metal ions that effect transparent function was discharged from circulating bin during the end of each cycle of ice making.
7. Efficient performance: ice maker adopt special alloy material and with special heat treatment, make the ice maker with best thermal performance.
8. Full automatically: PLC system controls the whole ice making process.
Ice Tube Machine Parameters
|
Model
|
Daily output
(T/24 h)
|
CompressorPower
|
Fan Power for Cooling Tower
|
Cooling
Pump Power
|
Unit size (L*W*H mm)
(Integrated Type)
|
Unit N.W.(kg)
|
|
|
TV 10
|
1
|
4.1 kw
|
0.25 kw
|
1.1 kw
|
1100*900*1780
|
900
|
|
|
TV 20
|
2
|
7.44 kw
|
0.25 kw
|
1.5 kw
|
1250*1000*1950
|
1200
|
|
|
TV 30
|
3
|
10 kw
|
0.55 kw
|
1.5 kw
|
1300*1100*2200
|
1500
|
|
|
TV 50
|
5
|
19.9 kw
|
0.55 kw
|
2.2 kw
|
1600*1400*2250
|
1800
|
|
|
Model
|
Daily output
(T/24 h)
|
Compressor
Power
|
Fan Power for Cooling Tower
|
Cooling Pump Power
|
Unit size (L*W*H mm)
(Split type)
|
Unit N.W.
(kg)
|
|
|
Main Host
|
Brine Tank
|
||||||
|
TV 100
|
10
|
27.9 kw
|
1.5 kw
|
4 kw
|
1900*1600*1850
|
1200*1200*3390
|
3500
|
|
TV 100+
|
10
|
39.8 kw
|
1.5 kw
|
4 kw
|
2400*1700*2000
|
1200*1200*3390
|
3700
|
|
TV 150
|
15
|
46.4 kw
|
1.5 kw
|
5 kw
|
2700*2000*2200
|
1500*1200*4250
|
4250
|
|
TV 200
|
20
|
55.7 kw
|
2.2 kw
|
7.5 kw
|
2800*2200*2500
|
1500*1200*4700
|
6500
|
|
TV 300
|
30
|
83.6 kw
|
2.2 kw
|
7.5 kw
|
3100*2200*2500
|
1800*1500*5700
|
7200
|
|
TV 400
|
40
|
111.4 kw
|
2.2 kw
|
11 kw
|
3900*2250*2500
|
2000*1500*6800
|
8300
|
|
TV 500
|
50
|
139.3 kw
|
3.75 kw
|
15 kw
|
4500*2250*2500
|
2200*1800*7200
|
9500
|
|
1. Compressor brand: Bitzer /Franscold ; Refrigerant: R 22/ R 404 A; Cooling Method: water cooling / air cooling.
2. Power supply:voltage 380V/3P/50Hz(for non-standard voltage, unit configuration needs to be calculated separately ).
3. Operating conditions: T (water supply):20℃ , T (ambient): 32℃, T(condensing):40℃, T (evaporating):-12℃. 4. (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) 5. (The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there any technical change. ) |
|||||||
Application:
1. Tube ice machine in fishery seafood
Tube ice is hollow, hard and transparent, has a long storage period, is not easy to melt, and has good air permeability. It is one of the best ice types for fishery seafood preservation. The tube ice does not have water chestnuts and will not harm the refrigerated goods, and it is hollow and breathable, which can ensure the quality of seafood, and the storage time is longer than that of flake ice machines.
2. Tube ice machine in commercial cold drinks
In bars, hotels, cold drink shops, KTV and other places. Adding tube ice to wine cold drinks is very popular among people, especially in the tropical areas of Southeast Asia, it is one of the ways for people to cool off.
3. The tube ice machine is also one of the types of wholesale and retail ice in the ice factory. Because of its beautiful appearance and non-melting, it is especially suitable for packaging and retailing for wholesale to hotels, supermarkets, cold drink shops, etc., where ice is needed. Tube ice machines also have special applications in pharmaceutical and chemical laboratories.
Note:
The above information is according to adopt water cooled condenser.
Size of machine is before installation. Size of machine is the same with the size before
installation.
It didn’t mention size of cooling tower, cooling tower usually install in the outside.
Machine running condition:
1. Water temperature: 28Centi degree,
2. Evaporate temperature: -12Centi degree,
3. Condensing temperature: 40Centi degree,
4. Reference valve under 50Hz power supply.
Real production of machine will have a little change according to change of water
temperature and ambient temperature.
