Product Details:
|
| Ice Production Capacity: | 5 Tons | Ice Drum Material: | Stainess Steel |
|---|---|---|---|
| Ice Shape: | Tube Ice | Control: | PLC |
| Refrigerant: | R404A/R507 | Cooling Style: | Water-Cooled/Air-Cooled |
| Condition: | New | Key Selling Points: | Automatic |
| High Light: | Edible Tube Ice Machine,5 Tons Tube Ice Machine |
||

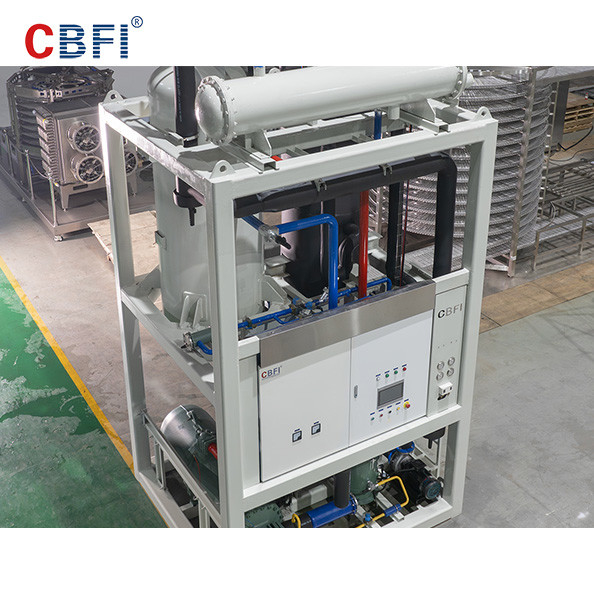

5 Tons Factory Manufacturing High Quality Edible Tube Ice Machine With Adjustable Thickness
5 ton tube ice machine is a good choice for community ice making enterprises. The ice machine design provided enables the machine to run at night, earning you more profit. A complete tube ice plant is usually equipped with water filters, tanks, tube ice machines, ice silos, ice packers, cold storage and ice trucks. We can offer you a full range of products. You don't need to buy all of these items one by one.
Features of tube ice machine
1. 3D design, convenient container transportation, easy installation and maintenance;
2. The evaporator adopts stainless steel polyurethane foam insulation, the pipe adopts insulation treatment, more energy saving, beautiful appearance;
3. The parts in contact with the ice are made of food grade high quality 304 stainless steel to ensure the safety and health of the ice;
4. PLC intelligent control system, fully automatic production, no manual operation;
5. Using automatic laser welding machine welding, beautiful welding spot, ensure no leakage, low equipment failure rate;
6. The whole machine through the CE certification, high guarantee;
7. Special water system design, to ensure that the ice quality is better, uniform thickness, transparent, pure;
8. Unique deicing method, fast deicing speed, small system impact, higher efficiency and safer;
9. Can be equipped with stainless steel spiral conveying ice storage bucket, manual or automatic packing system.
Tube Ice Machine Parameters
|
Tube Ice Machine Parameters
|
|||||||
|
Model
|
Daily Output (T/24 h)
|
Compressor Power
|
Fan Power for Cooling Tower
|
Cooling Pump Power
|
Unit Size (L**H *W mm)(Integrated Type)
|
Unit N.W.(KG)
|
|
|
TV 10
|
1
|
4.1 kw
|
0.25 kw
|
1.1 kw
|
1100*900*1780
|
900
|
|
|
TV 20
|
2
|
7.44 kw
|
0.25 kw
|
1.5 kw
|
1250*1000*1950
|
1200
|
|
|
TV 30
|
3
|
10 kw
|
0.55 kw
|
1.5 kw
|
1300*1100*2200
|
1500
|
|
|
TV 50
|
5
|
19.9 kw
|
0.55 kw
|
2.2 kw
|
1600*1400*2250
|
1800
|
|
|
Model
|
Daily Output (T/24h)
|
Compressor Power
|
Fan Power for Cooling Tower
|
Cooling Pump Power
|
Unit Size (L*W*H) (Split type)
|
Unit N.W.(KG)
|
|
|
Main Host
|
Brine Tank
|
||||||
|
TV100
|
10
|
27.9 kw
|
1.5 kw
|
4 kw
|
1900*1600*1850
|
1200*1200*3390
|
3500
|
|
TV100+
|
10
|
39.8 kw
|
1.5 kw
|
4 kw
|
2400*1700*2000
|
1200*1200*3390
|
3700
|
|
TV150
|
15
|
46.4 kw
|
1.5 kw
|
5 kw
|
2700*2000*2200
|
1500*1200*4250
|
4250
|
|
TV200
|
20
|
55.7 kw
|
2.2 kw
|
7.5 kw
|
2800*2200*2500
|
1500*1200*4700
|
6500
|
|
TV300
|
30
|
83.6 kw
|
2.2 kw
|
7.5 kw
|
3100*2200*2500
|
1800*1500*5700
|
7200
|
|
TV400
|
40
|
111.4 kw
|
2.2 kw
|
11 kw
|
3900*2250*2500
|
2000*1500*6800
|
8300
|
|
TV500
|
50
|
139.3 kw
|
3.75 kw
|
15 kw
|
4500*2250*2500
|
2200*1800*7200
|
9500
|
|
1. Compressor brand: Bitzer /Franscold ; Refrigerant: R 22/ R 404 A; Cooling Method: water cooling / air cooling.
2. Power supply:voltage 380V/3P/50Hz(for non-standard voltage, unit configuration needs to be calculated separately ). 3. Operating conditions: T (water supply):20℃ , T (ambient): 32℃, T(condensing):40℃, T (evaporating):-12℃. 4. (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) 5. (The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there any technical change. ) |
|||||||
Tube ice machine Principle of ice machine
The ice part is the evaporator, which is composed of many vertical and parallel steel pipes. A deflector at the top of the evaporator spirals water evenly into each steel tube. Excess water is collected by a tank at the bottom and pumped back into the evaporator. There is refrigerant flow in the outer space of the steel pipe and heat exchange occurs with the water in the pipe, and the water inside the pipe gradually cools down and becomes ice. When the thickness of the tube ice reaches the desired level, the water automatically stops flowing. The hot air from the refrigerant will enter the evaporator and melt the tube ice. When the tube ice falls, the ice cutting mechanism operates, cutting the tube ice to a set size.
Application field of ice tube machine
Food ice, food processing, fishery production, meat processing, commercial super logistics, pigment chemical industry, concrete cooling and other industries
