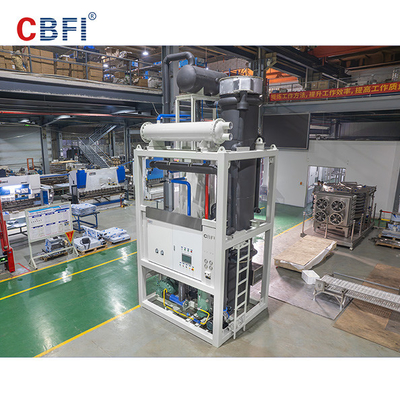

Solid Ice Tube Machine Industrial Tube Ice Machine For 5 10 15 20 30 Tons

Solid Ice Tube Machine Industrial Tube Ice Machine For  5 10 15 20 30 Tons
Solid Ice Tube Machine Industrial Tube Ice Machine For  5 10 15 20 30 Tons Solid Ice Tube Machine Industrial Tube Ice Machine For  5 10 15 20 30 Tons

Large Image :  Solid Ice Tube Machine Industrial Tube Ice Machine For 5 10 15 20 30 Tons

Product Details:
Place of Origin: Guangzhou City , China
Brand Name: CBFI
Certification: CE, ISO
Model Number: TV Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Standard wooden case for the tube ice machine
Delivery Time: 30 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 30 sets per month

Solid Ice Tube Machine Industrial Tube Ice Machine For 5 10 15 20 30 Tons

Description
Capacity: 1-50 Ton Material: SUS304 Staineless Steel
Cooling Way: Air /Water Cooling Ice Size: 22mm,28mm,35mm
Refrigerant: R404a Or R507 Type: Automatic Tube Ice Machine
Controller: PLC Key Selling Points:: Solid Tube Ice
High Light:

Solid Ice Tube Machine

,

30 Tons Ice Tube Machine

Solid Ice Tube Machine Industrial/Commercial Tube Ice Machine For Sale 5 10 15 20 30 Tons



CBFI can provide equipment that meets European CE import and installation standards, it is also the only manufacturer in China that can produce such equipment.
Compared with machines of the same quality in Europe, the price has an absolute advantage, reducing customer costs, allowing customers to recover costs in the shortest time and obtain profits. With the assistance of CBFI professional engineers, the machine was successfully installed and the ice tube have been sold to the European market.



Tube Ice Machine Features

1. Hard, Clear solid tube ice with no hole.
2. Cartridge’ saw cutting mechanism-Special designed by CBFI. The exclusive design of solid tube ice with saw cut.
(1. Patented saw cut technology, ensure the cutting is flat, saw cut rate is above 95% .
2. Rust-resistant, Corrosion-resistant and Durable cutting blade, used SUS440C (Scalpel grade material) .
3. Patented refrigeration technology, prevents all the problem might brought by the change of load, ensure the stable running of the whole refrigeration system.)
④Exclusive ice making water control system, ensure solid ice rate is above 98%.
3. Both ammonia and Freon system are applicable. Capacity range from 10 to 30 tons.
4. Tube-ice 22 mm, 28 mm, 35 mm, 41 mm Diameter available, other sizes can also be customized according to customer requirement.



Ice Tube Machine Product At a Glance

1. Make higher quality ice to be more competitive in the market,cater for higher quality demand.
2. Higher quality ice for more profit.
3. Effective and mass production of quality ice, no molds.
4. Factory tested to assure proper operation and reduce installation time.



Tube Ice Making Machine Applications

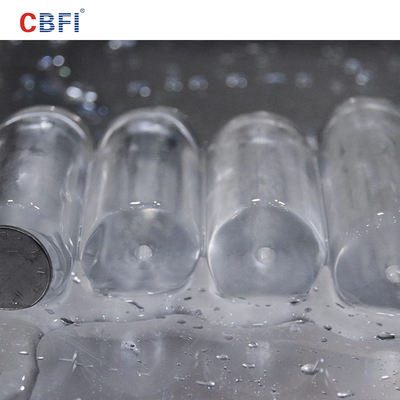

Tube ice is widely used in drink cooling, food processing, fishery, food preservation, supermarket and other areas. There are many different type of tube ice.The outer diameter of the ice tube is φ22 mm, φ28 mm, φ35 mm, etc. and the length is between 25~45 mm, and the inner diameter can be adjusted during the ice forming process usually between φ5~10 mm. The ice tube is thick and crystal clear, and it takes a long time to melt or store.



Tube Ice Maker Machine Parameters

Model
Daily output
(T/24 h)
CompressorPower
Fan Power for Cooling Tower
Cooling
Pump Power
Unit size (L*W*H mm)
(Integrated Type)
Unit N.W.(kg)
TV 10
1
4.1 kw
0.25 kw
1.1 kw
1100*900*1780
900
TV 20
2
7.44 kw
0.25 kw
1.5 kw
1250*1000*1950
1200
TV 30
3
10 kw
0.55 kw
1.5 kw
1300*1100*2200
1500
TV 50
5
19.9 kw
0.55 kw
2.2 kw
1600*1400*2250
1800
Model
Daily output
(T/24 h)
Compressor
Power
Fan Power for Cooling Tower
Cooling Pump Power
Unit size (L*W*H mm)
(Split type)
Unit N.W.
(kg)
Main Host
Brine Tank
TV 100
10
27.9 kw
1.5 kw
4 kw
1900*1600*1850
1200*1200*3390
3500
TV 100+
10
39.8 kw
1.5 kw
4 kw
2400*1700*2000
1200*1200*3390
3700
TV 150
15
46.4 kw
1.5 kw
5 kw
2700*2000*2200
1500*1200*4250
4250
TV 200
20
55.7 kw
2.2 kw
7.5 kw
2800*2200*2500
1500*1200*4700
6500
TV 300
30
83.6 kw
2.2 kw
7.5 kw
3100*2200*2500
1800*1500*5700
7200
TV 400
40
111.4 kw
2.2 kw
11 kw
3900*2250*2500
2000*1500*6800
8300
TV 500
50
139.3 kw
3.75 kw
15 kw
4500*2250*2500
2200*1800*7200
9500
1.  Compressor brand: Bitzer /Franscold ; Refrigerant: R 22/ R 404 A; Cooling Method: water cooling / air cooling.
2. Power supply:voltage 380V/3P/50Hz(for non-standard voltage, unit configuration needs to be calculated separately ).
3. Operating conditions: T (water supply):20℃ , T (ambient): 32℃, T(condensing):40℃, T (evaporating):-12℃.
4. (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.)
5. (The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there any technical change. )
