Product Details:
|
| Capacity: | 1-10 Ton | Ice Shape: | Tube Ice |
|---|---|---|---|
| Outer Diameter: | 22、28、35mm | Bore Diameter: | 5-10mm |
| Cooling Model: | Water Cooling / Air Cooling | PLC Program Control: | Germany Siemens |
| Electric Component: | Koreas LG/LS | Application: | Industrial /Commercial |
| High Light: | 10mm Tube Ice Machine,10 Tons / 24hr Tube Ice Machine,Medium Ice Making Machine |
||

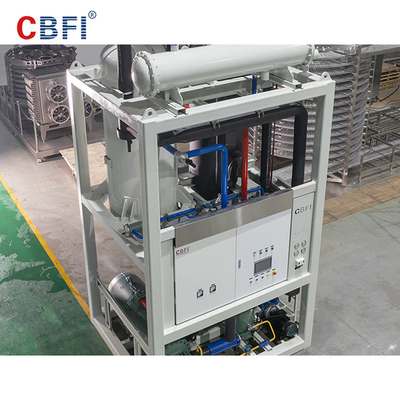

High Quality Ice Making Machine Tube Ice Machine 1 ,3,5,10 Tons/24hr Small And Medium Tubular Ice Machine
The output of tube ice machines produced by Guangzhou Bingquan Refrigeration Equipment Co., Ltd. ranges from 1 ton to 50 tons. The equipment from 1 ton to 5 tons adopts an integral design, and the equipment from 10 to 30 tons adopts a split design.
There are two types of refrigerants, R507 and R404a.
Since the tube ice machine adopts a flooded refrigeration system, the amount of refrigerant required by the equipment is relatively large.
Therefore, the prices of refrigerants used in equipment with the same output are different.
The power supply voltage of the equipment can be selected according to the customer's requirements. Usually, there are the following voltages: 380V/3PI50Hz, 415V/3P/50Hz, 220V/3P/60Hz, 380V/3P/60Hz.
The integrated automatic edible tube ice machine adopts an integral design for equipment within 10 tons.
Advantage:
1. The 3D modeling assembly is tight, the structure is compact, and the operation and maintenance are simple.
2. The evaporator heat exchange pipes are imported from Japan and welded with hydraulic expansion technology to ensure smooth deicing without leakage.
3. The refrigeration system adopts the design of instantaneous several times flow passage section to ensure the stable operation of the equipment for a long time.
Tube Ice Machine Parameters
|
Tube Ice Machine Parameters
|
|||||||
|
Model
|
Daily Output (T/24 h)
|
Compressor Power
|
Fan Power for Cooling Tower
|
Cooling Pump Power
|
Unit Size (L**H *W mm)(Integrated Type)
|
Unit N.W.(KG)
|
|
|
TV 10
|
1
|
4.1 kw
|
0.25 kw
|
1.1 kw
|
1100*900*1780
|
900
|
|
|
TV 20
|
2
|
7.44 kw
|
0.25 kw
|
1.5 kw
|
1250*1000*1950
|
1200
|
|
|
TV 30
|
3
|
10 kw
|
0.55 kw
|
1.5 kw
|
1300*1100*2200
|
1500
|
|
|
TV 50
|
5
|
19.9 kw
|
0.55 kw
|
2.2 kw
|
1600*1400*2250
|
1800
|
|
|
Model
|
Daily Output (T/24h)
|
Compressor Power
|
Fan Power for Cooling Tower
|
Cooling Pump Power
|
Unit Size (L*W*H) (Split type)
|
Unit N.W.(KG)
|
|
|
Main Host
|
Brine Tank
|
||||||
|
TV100
|
10
|
27.9 kw
|
1.5 kw
|
4 kw
|
1900*1600*1850
|
1200*1200*3390
|
3500
|
|
TV100+
|
10
|
39.8 kw
|
1.5 kw
|
4 kw
|
2400*1700*2000
|
1200*1200*3390
|
3700
|
|
TV150
|
15
|
46.4 kw
|
1.5 kw
|
5 kw
|
2700*2000*2200
|
1500*1200*4250
|
4250
|
|
TV200
|
20
|
55.7 kw
|
2.2 kw
|
7.5 kw
|
2800*2200*2500
|
1500*1200*4700
|
6500
|
|
TV300
|
30
|
83.6 kw
|
2.2 kw
|
7.5 kw
|
3100*2200*2500
|
1800*1500*5700
|
7200
|
|
TV400
|
40
|
111.4 kw
|
2.2 kw
|
11 kw
|
3900*2250*2500
|
2000*1500*6800
|
8300
|
|
TV500
|
50
|
139.3 kw
|
3.75 kw
|
15 kw
|
4500*2250*2500
|
2200*1800*7200
|
9500
|
|
1. Compressor brand: Bitzer /Franscold ; Refrigerant: R 22/ R 404 A; Cooling Method: water cooling / air cooling.
2. Power supply:voltage 380V/3P/50Hz(for non-standard voltage, unit configuration needs to be calculated separately ). 3. Operating conditions: T (water supply):20℃ , T (ambient): 32℃, T(condensing):40℃, T (evaporating):-12℃. 4. (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) 5. (The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there any technical change. ) |
|||||||
Application fields of tube ice machine:
1. Edible Ice Factory
2. Ice-making factories in ports and docks
3. Coffee shops, bars, hotels and other ice places
4. Supermarkets, convenience stores, restaurants and other commercial areas
5. Aquatic products and food preservation
6. Logistics preservation
7. Chemical engineering and concrete engineering
