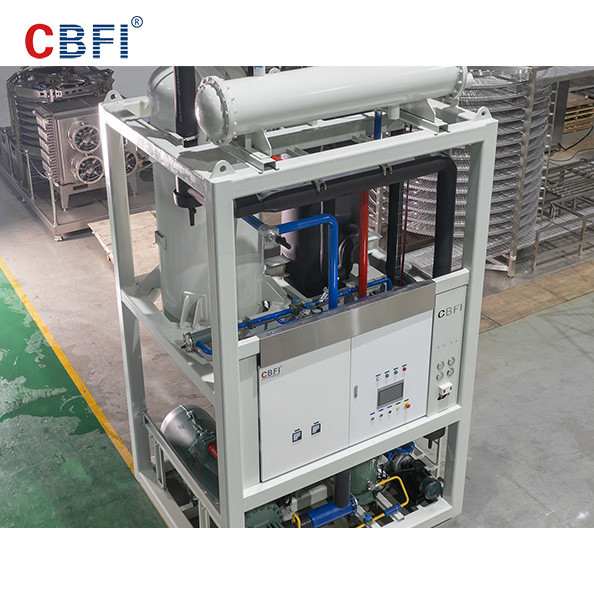

Commercial 1 Ton Ice Tube Machine With Single Or 3 Phase Power

Commercial 1 Ton Ice Tube Machine With Single Or 3 Phase Power
Commercial 1 Ton Ice Tube Machine With Single Or 3 Phase Power Commercial 1 Ton Ice Tube Machine With Single Or 3 Phase Power Commercial 1 Ton Ice Tube Machine With Single Or 3 Phase Power

Large Image :  Commercial 1 Ton Ice Tube Machine With Single Or 3 Phase Power

Product Details:
Place of Origin: Guangzhou City , China
Brand Name: CBFI
Certification: CE, ISO
Model Number: TV10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Standard wooden case for the tube ice machine
Delivery Time: 30 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 30 sets per month

Commercial 1 Ton Ice Tube Machine With Single Or 3 Phase Power

Description
Capacity: 1Ton/24h Power: Single Phase/3 Phase
Circulating Water Pump Power: 0.37KW Cooling Water Pump Power: 1.1KW
Cooling Fan Motor Power: 0.18KW Lce Cutter Motor Power: 0.75KW
Lce Making Machine Size: 1100x900x1780 (mm) Weight: 900KG
High Light:

1 Ton Ice Tube Machine

,

Commercial Ice Tube Machine

,

3 Phase Ice Tube Machine

Commercial 1 Ton Tube Ice Machine With Single Phase/3 Phase Power

1 ton tube ice machine is the little brother in the family. The low power consumption and convenience make it the very welcomed product in many countries. The power standard of the machine is able to be customized. Single phase power type is already widely welcomed in many countries such as Malaysia the country which has thousands of islands.

Tube ice machine features
1.  Daily Production 1 ton per 24 hrs
2.  Air cooled or water cooled provided
3.  3D designed to ensure the container transportation. Easy for installation & maintaining
4.  All materials have contact with ice we use food grade SUS304 stainless steel to ensure the safety of our ice.
5.  PLC intelligent controlled, full automatic production, need no human operation.
6.  Easy to operate, touch screen human friendly interface.

Ice tube machine parameters

TV10 1 ton Tube Ice Machine Parameters
NameUnitParameter
Tube DiametermmΦ22Φ28Φ35



Bitzer Compressor Parameter

Model4EES-4
Cooling Capacity(kW)11.04
Power(kW)4.1


Condenser

ModelWN-5
Heat Exchange(kW)19.4
Condensing TemperatureDegree Celsius(℃)40
Evaporating TemperatureDegree Celsius(℃)-12
Ambient TemperatureDegree Celsius(℃)32
Water TemperatureDegree Celsius(℃)20
Refrigerant R507
VoltageV/P/HZ380/3/50


Motor Power

Ice Cutting Motor(kW)0.75
Recircling Pump(kW)0.37


Cooling Tower

ModelLX-8
Power(kW)0.25


Cooling Pump

ModelGD40-15
Power1.1
Cooling Fan PowerPower(kW)0.18
Water Cooling Machine DimensionL*W*H(mm)1100*900*1780
Refrigerant Quantitykg505358
Machine Weightkg900



Tube ice making machine details
Evaporator
Evaporator is the kernel of tube ice machine. Using 360°automatic welding machine, weld is compact and flat without gap. Refrigerant and water through the evaporator will not leak. The strong evaporator can increase the service time of the machine.

Ice Mold
Stainless steel 304 outer cylinder evaporator, improve the cold exchange performance. And the material is food standard. The water is clean for ice making.

Top Brand Parts
World famous brand parts, such as Bitzer compressor, Siemens PLC, are used for better quality.

Air Condenser
Air condenser is using big fans which have more air volume. The heat exchange efficiency is higher.

Control System
Human friendly control system with brief control surface is used. Touch screen makes it much easier for you to control and monitor the whole machine.

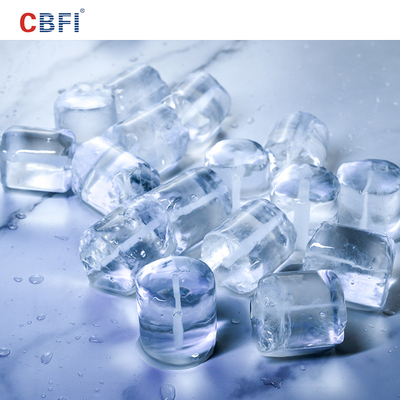

Tube ice applications
Drink Cooling ,Food Processing ,Fishery,Food Preservation ,Supermarket ect.
