| Capacity: | 10 Tons/day | Ice Shape: | Tube Ice,Cylinder In The Middle |
|---|---|---|---|
| Refrigerant: | R404A/R507 | Key Selling Points: | Famous Brand Low Voltage Components |
| Material: | 304# Stainless Steel | Compressor Brand: | Germany Bitzer/Customized |
| Cooling Ways: | Water/Air Cooling | Marketing Type: | Ordinary Product |
| High Light: | 10 Tons / Day Ice Tube Machine,R507 Ice Tube Machine |
||
10 Tons/day Crystal Tube Ice Machine With Automatic Controlling System

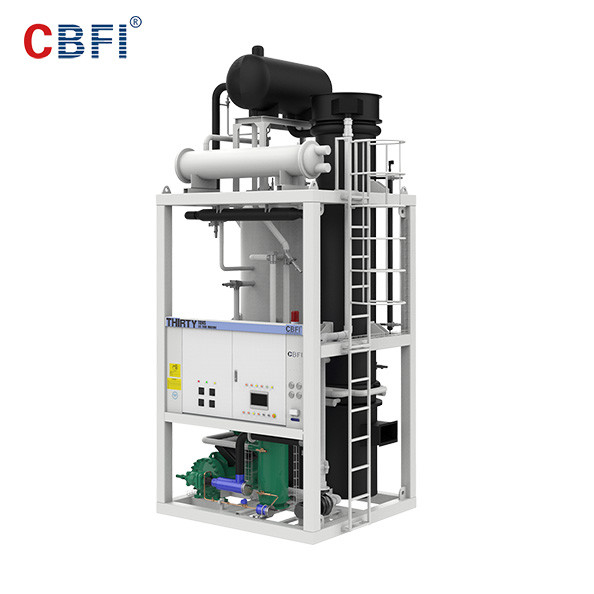

The tube ice machine is composed of a tube ice maker, a liquid receiver, a steam collecting valve, an electric control cabinet, various valves and connecting pipelines. The main equipment is a tube ice maker, the main body of which is a vertical shell-and-tube device. The heat exchange tube runs through the upper and lower tube sheets, and there is a water tank at the top and bottom. During the freezing process, the refrigerant evaporates in the main body and absorbs the heat of the water flowing down from the upper water tank along the inner wall of the heat exchange tube. The water is frozen into ice attached to the inner pipe wall, and when the thickness of the ice reaches the requirement, the deicing begins. At this time, hot steam is introduced into the shell of the evaporator, so that the ice formed on the inner tube wall falls off, cut off by the ice cutter rotating at the bottom, and discharged along the ice outlet. The tube ice machine is mainly used for daily consumption, vegetable preservation, fishing boat aquatic product preservation, chemical process, civil engineering and other places that need ice supply.
Product Features

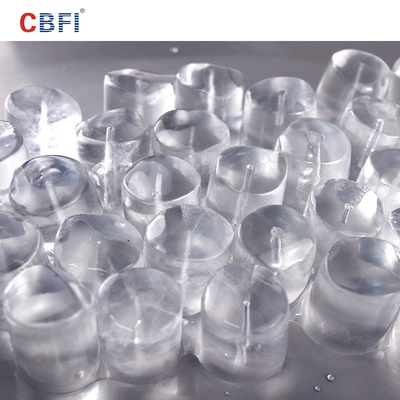

1. The tube ice is in the shape of a hollow cylinder, and the outer diameter is 20mm, 28mm, 34mm, 40mm, etc. kinds of specifications.
2. The length of tube ice is 30mm, 35mm, 45mm, 50mm.
3. The diameter of the inner hole can be adjusted according to the ice making time, generally between 5 and 10mm, or according to customer needs order solid ice.
4. The tube ice is thick and transparent, beautiful, has a long storage period, is not easy to melt, has good air permeability, and meets the edible standard.
Advantages of CBFI Tube Ice Machine
1. Strong production and processing capabilities to ensure product quality.
2. Large-scale edible tube ice production line, solution service provider.
3. Stainless steel tube ice machine evaporator.
Product Parameters
|
Model
|
Daily output
(T/24 h)
|
CompressorPower
|
Fan Power for Cooling Tower
|
Cooling
Pump Power
|
Unit size (L*W*H mm)
(Integrated Type)
|
Unit N.W.(kg)
|
|
|
TV 10
|
1
|
4.1 kw
|
0.25 kw
|
1.1 kw
|
1100*900*1780
|
900
|
|
|
TV 20
|
2
|
7.44 kw
|
0.25 kw
|
1.5 kw
|
1250*1000*1950
|
1200
|
|
|
TV 30
|
3
|
10 kw
|
0.55 kw
|
1.5 kw
|
1300*1100*2200
|
1500
|
|
|
TV 50
|
5
|
19.9 kw
|
0.55 kw
|
2.2 kw
|
1600*1400*2250
|
1800
|
|
|
Model
|
Daily output
(T/24 h)
|
Compressor
Power
|
Fan Power for Cooling Tower
|
Cooling Pump Power
|
Unit size (L*W*H mm)
(Split type)
|
Unit N.W.
(kg)
|
|
|
Main Host
|
Brine Tank
|
||||||
|
TV 100
|
10
|
27.9 kw
|
1.5 kw
|
4 kw
|
1900*1600*1850
|
1200*1200*3390
|
3500
|
|
TV 100+
|
10
|
39.8 kw
|
1.5 kw
|
4 kw
|
2400*1700*2000
|
1200*1200*3390
|
3700
|
|
TV 150
|
15
|
46.4 kw
|
1.5 kw
|
5 kw
|
2700*2000*2200
|
1500*1200*4250
|
4250
|
|
TV 200
|
20
|
55.7 kw
|
2.2 kw
|
7.5 kw
|
2800*2200*2500
|
1500*1200*4700
|
6500
|
|
TV 300
|
30
|
83.6 kw
|
2.2 kw
|
7.5 kw
|
3100*2200*2500
|
1800*1500*5700
|
7200
|
|
TV 400
|
40
|
111.4 kw
|
2.2 kw
|
11 kw
|
3900*2250*2500
|
2000*1500*6800
|
8300
|
|
TV 500
|
50
|
139.3 kw
|
3.75 kw
|
15 kw
|
4500*2250*2500
|
2200*1800*7200
|
9500
|
|
1. Compressor brand: Bitzer /Franscold ; Refrigerant: R 22/ R 404 A; Cooling Method: water cooling / air cooling.
2.Power supply:voltage 380V/3P/50Hz(for non-standard voltage, unit configuration needs to be calculated separately ).
3.Operating conditions: T (water supply):20℃ , T (ambient): 32℃, T(condensing):40℃, T (evaporating):-12℃. 4.(Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) 5.(The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there any technical change. ) |
|||||||
