Product Details:
|
| Daily Capacity: | 10Tons/day | Material: | Stainless Steel 304a |
|---|---|---|---|
| Cooling Way: | Air Cooling / Water Cooling | Refrigerant: | R507 Or R404a |
| Diameter: | 16 Mm, 22 Mm, 28 Mm, 35 Mm | Tube Ice Machine Length: | 25-42 Mm |
| Compressor: | Germany Bitzer | PLC Program Control: | Germany Siemens |
| High Light: | 10 Tons Ice Tube Machine,Water Cooling Ice Tube Machine |
||

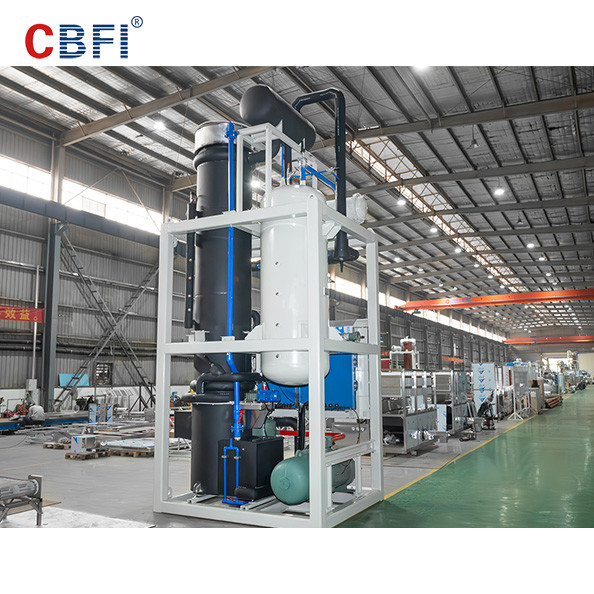

10Tons Water Cooling Ice Tube Machine With Ice Packing Machine For Ice Business
The 10-ton tube ice machine is a split ice machine. The ice making part is set separately from the main body, so you can better use all the space to design the ice maker. It is recommended to provide spiral ice storage with cold source. Then the tube ice can last overnight before packaging.
Tube Ice Machine Features
1. Hard, Clear solid tube ice with no hole.
2. Cartridge’ saw cutting mechanism-Special designed by CBFI.
3. Both ammonia and Freon system are applicable. Capacity range from 10 to 30 t.
4. Tube ice 22 mm, 28 mm, 35 mm,41 mm Diameter available, other sizes can also be customized according to customer requirement.
5. The degree of automation is high, and ice making, conveying, packaging, and ice storage are automated. Avoid direct contact with ice and reduce pollution.
Product Parameter
|
Model
|
Daily output
(T/24 h)
|
CompressorPower
|
Fan Power for Cooling Tower
|
Cooling
Pump Power
|
Unit size (L*W*H mm)
(Integrated Type)
|
Unit N.W.(kg)
|
|
|
TV 10
|
1
|
4.1 kw
|
0.25 kw
|
1.1 kw
|
1100*900*1780
|
900
|
|
|
TV 20
|
2
|
7.44 kw
|
0.25 kw
|
1.5 kw
|
1250*1000*1950
|
1200
|
|
|
TV 30
|
3
|
10 kw
|
0.55 kw
|
1.5 kw
|
1300*1100*2200
|
1500
|
|
|
TV 50
|
5
|
19.9 kw
|
0.55 kw
|
2.2 kw
|
1600*1400*2250
|
1800
|
|
|
Model
|
Daily output
(T/24 h)
|
Compressor
Power
|
Fan Power for Cooling Tower
|
Cooling Pump Power
|
Unit size (L*W*H mm)
(Split type)
|
Unit N.W.
(kg)
|
|
|
Main Host
|
Brine Tank
|
||||||
|
TV 100
|
10
|
27.9 kw
|
1.5 kw
|
4 kw
|
1900*1600*1850
|
1200*1200*3390
|
3500
|
|
TV 100+
|
10
|
39.8 kw
|
1.5 kw
|
4 kw
|
2400*1700*2000
|
1200*1200*3390
|
3700
|
|
TV 150
|
15
|
46.4 kw
|
1.5 kw
|
5 kw
|
2700*2000*2200
|
1500*1200*4250
|
4250
|
|
TV 200
|
20
|
55.7 kw
|
2.2 kw
|
7.5 kw
|
2800*2200*2500
|
1500*1200*4700
|
6500
|
|
TV 300
|
30
|
83.6 kw
|
2.2 kw
|
7.5 kw
|
3100*2200*2500
|
1800*1500*5700
|
7200
|
|
TV 400
|
40
|
111.4 kw
|
2.2 kw
|
11 kw
|
3900*2250*2500
|
2000*1500*6800
|
8300
|
|
TV 500
|
50
|
139.3 kw
|
3.75 kw
|
15 kw
|
4500*2250*2500
|
2200*1800*7200
|
9500
|
Product Configurations
Compared with peers, the important components of the company's production equipment are imported top-notch technology equipment, which has the advantages of good quality, simple operation, stable output, and high automation.
The main reason for the good quality of the ice machine produced by our company is that the compressor, condenser, expansion valve, PLC controller and other important parts are imported. The equipment has good performance and strong anti-interference ability. The external environment has an impact on the output and ice. The quality of the product has little effect.A variety of models can meet the needs of customers at different levels.
