Product Details:
|
| Daily Capacity: | 5 Tons | Usage: | Full-automation |
|---|---|---|---|
| Processing Customization: | Customizated | Scope Of Application: | Wine Preparation Ect |
| Refrigerant: | R507 Or R404a | Diameter: | 16 Mm, 22 Mm, 28 Mm, 35 Mm |
| Tube Ice Machine Length: | 25-42 Mm | Cooling Model: | Water Cooling / Air Cooling |
| High Light: | Edible Tube Ice Machine,5 Tons Tube Ice Machine |
||

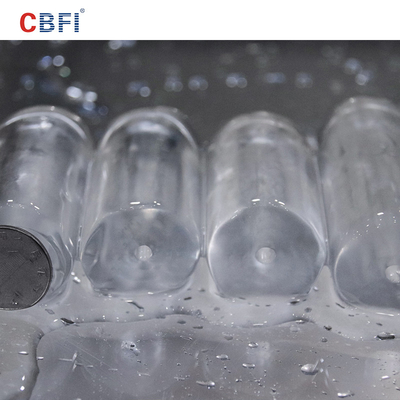

5 Tons Edible Tube Ice Machine Cylindrical Tube Ice Ice Machine

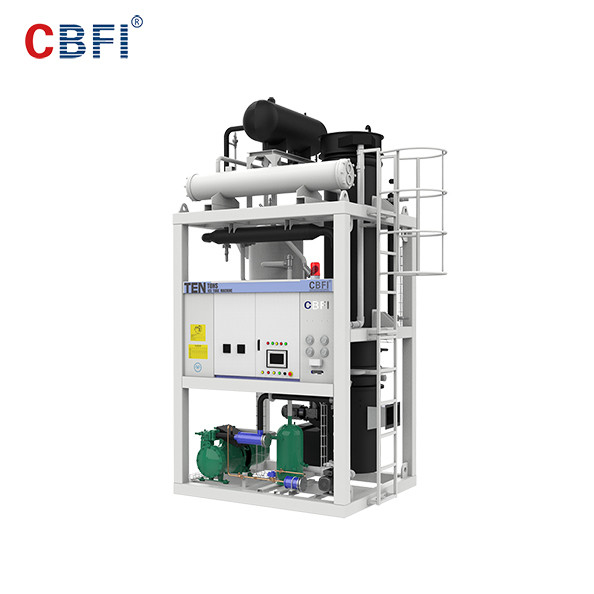

The tube ice machine is composed of a tube ice maker, a liquid receiver, a steam collecting valve, an electric control cabinet, various valves and connecting pipelines. The main equipment is a tube ice maker, the main body of which is a vertical shell-and-tube device. The heat exchange tube runs through the upper and lower tube sheets, and there is a water tank at the top and bottom. During the freezing process, the refrigerant evaporates in the main body and absorbs the heat of the water flowing down from the upper water tank along the inner wall of the heat exchange tube. The water is frozen into ice attached to the inner pipe wall, and when the thickness of the ice reaches the requirement, the deicing begins. At this time, hot steam is introduced into the shell of the evaporator, so that the ice formed on the inner tube wall falls off, cut off by the ice cutter rotating at the bottom, and discharged along the ice outlet. The tube ice machine is mainly used for daily consumption, vegetable preservation, fishing boat aquatic product preservation, chemical process, civil engineering and other places that need ice supply.
Product advantages
1. Strong technical strength
Integrating refrigeration equipment design, research and development, production, sales, construction and service, it has provided services for hundreds of engineering projects, and has been widely praised for its professional technology, excellent quality and considerate service.
2. Fine grinding, ingenuity quality
Appearance: Craftsmanship, beautiful and generous
Performance: corrosion resistance, sealing and heat preservation, broken bridge frame structure design, low consumption and energy saving
Noise: sealed noise reduction, better than the national standard
Refrigeration effect: national refrigeration standard
3. Experienced and skilled construction team
Our company has an excellent construction team who has received professional technical training and is responsible for the design, implementation and maintenance of engineering schemes.
4. One-stop service / lifetime technical support
Escort your project quality, provide one-stop butler service, and provide technical support.
If you have any questions during the operation, we will give you professional answers.
Product Parameter
| TV50 5 ton Tube Ice Machine Parameters | ||||
| Name | Unit | Parameter | ||
| Tube Diameter | mm | Φ22 | Φ28 | Φ35 |
|
Bitzer Compressor Parameter |
Model | 6HE-28 | ||
| Cooling Capacity(kW) | 56.8 | |||
| Power(kW) | 19.9 | |||
|
Condenser |
Model | WN-25 | ||
| Heat Exchange(kW) | 95.2 | |||
| Condensing Temperature | Degree Celsius(℃) | 40 | ||
| Evaporating Temperature | Degree Celsius(℃) | -12 | ||
| Ambient Temperature | Degree Celsius(℃) | 32 | ||
| Water Temperature | Degree Celsius(℃) | 20 | ||
| Refrigerant | R507 | |||
| Voltage | V/P/HZ | 380/3/50 | ||
|
Motor Power |
Ice Cutting Motor(kW) | 1.5 | ||
| Recircling Pump(kW) | 1.5 | |||
|
Cooling Tower |
Model | LX-30 | ||
| Power(kW) | 0.55 | |||
|
Cooling Pump |
Model | GD65-19 | ||
| Power | 2.2 | |||
| Cooling Fan Power | Power(kW) | 0.75 | ||
| Water Cooling Machine Dimension | L*W*H(mm) | 1600*1400*2250 | ||
| Refrigerant Quantity | kg | 100 | 120 | 140 |
| Machine Weight | kg | 180 | ||
