Product Details:
|
| Capacity: | 3000kgs In 24 Hours | Ice Shape: | Tube Ice |
|---|---|---|---|
| Refrigerant: | R507/R404A | Material For Mainframe: | SUS304 |
| Cooling Way: | Water Cooling | Key Selling Points: | Easy To Operate |
| Ice Storage Capacity: | Customized | Application: | Commercial, Bars/restaurants/hotels |
| High Light: | SUS304 Ice Tube Machine,3 Ton Ice Tube Machine |
||

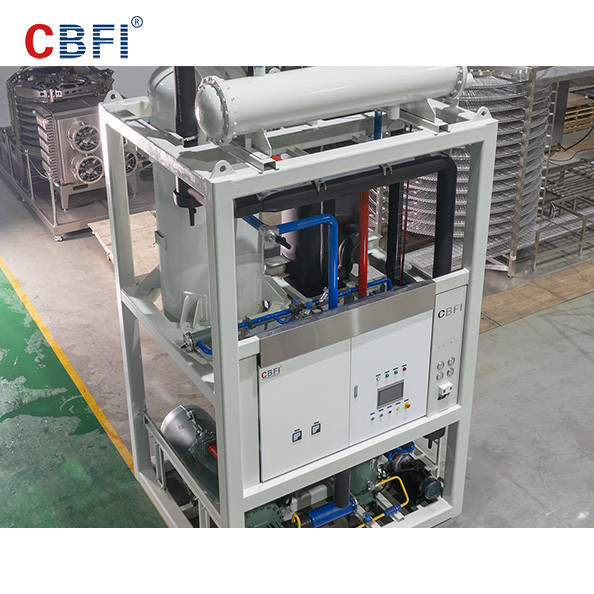

Commercial Used 3 Ton Tube Ice Maker High Quality SUS304 Ice Tube Machine
Product Description
Model: TV30
Capacity: 3000kg/day

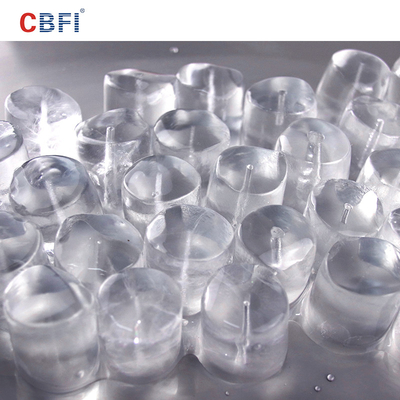

Ice shape: tube ice, looks like hollow cylinder
Ice outer diameter: φ20mm, φ28mm, φ35mm and other specifications
Ice length: 30-60mm
Ice inner diameter: adjustable, Usually 22mm, 28mm and 35mm
Tube Ice Machine Feature
The tube ice is the common ice. lt is favored by lots of clients due to its glittering and translucent,thick thickness and good melting resistance, beautiful look, long storage life, excellent expansibility.
Structure drawing of integrateddesign tube ice machine
lntegrated design automatic edible tube ice machine.
1 ton to 8 tons tube ice machines adopt integrated design.
Advantage:
1. 3D modeling assembly tight, compact structure, simple operation and maintenance.
2. The evaporator heat exchange pipes are imported from Japan, using the hydraulic expansion technology to weld, no leakage, it makes sure the smooth of ice-uploading.
3. The refrigeration uses the instantaneous flow period design.
Tube ice machine is the machine that produce tube ice.Many stainless steel 304 tubes combine the evaporator, the refrigerant flow between the tubes, the water flow from the top to the button in the spiral shape, the water will become ice in the process of flow. Equipped with digital voltage control, mechanical pressure control and time relay triple protection, strictly control the ice forming speed, prevent the frost-crack of stainless steel tube.
Under the action of three kinds of controller in the appeal, the evaporator offers the heat after ice-forming, so the ice falls down freely, at the same time, the ice is tangent to the ice cutter, it becomes the tubular shape ice, this is tube ice.
Product Parameters
|
Model
|
Daily output
(T/ 24 h)
|
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
|
TV10
|
1
|
4.1
|
0.25
|
1.1
|
1100*900*1780
|
900
|
|
|
TV20
|
2
|
7.44
|
0.25
|
1.5
|
1250*1000*1950
|
1200
|
|
|
TV30
|
3
|
10
|
0.55
|
1.5
|
1300*1100*2200
|
1500
|
|
|
TV50
|
5
|
19.9
|
0.55
|
2.5
|
1600*1400*2250
|
1800
|
|
|
Model
|
Daily output
(T/24 h) |
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
|
Main Host
|
Brine Tank
|
||||||
|
TV 100
|
10
|
27.9
|
1.5
|
4
|
1900*1600*1850
|
1200*1200*3390
|
3500
|
|
TV 100+
|
10
|
39.8
|
1.5
|
4
|
2400*1700*2000
|
1200*1200*3390
|
3700
|
|
TV 150
|
15
|
46.4
|
1.5
|
5
|
2700*2000*2200
|
1500*1200*4250
|
4250
|
|
TV 200
|
20
|
55.7
|
2.2
|
7.5
|
2800*2200*2500
|
1500*1200*4700
|
6500
|
|
TV 300
|
30
|
83.6
|
2.2
|
7.5
|
3100*2200*2500
|
1800*1500*5700
|
7200
|
|
TV 400
|
40
|
111.4
|
2.2
|
11
|
3900*2250*2500
|
2000*1500*6800
|
8300
|
|
TV 500
|
50
|
139.3
|
3.75
|
15
|
4500*2250*2500
|
2200*1800*7200
|
9500
|
|
1. Compressor brand: Bitzer /Franscold ; Refrigerant: R 22/ R 404 A; Cooling Method: water cooling / air cooling.
2.Power supply:voltage 380V/3P/50Hz(for non-standard voltage, unit configuration needs to be calculated separately ).
3.Operating conditions: T (water supply):20℃ , T (ambient): 32℃, T(condensing):40℃, T (evaporating):-12℃. 4.(Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) 5.(The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there any technical change. ) |
|||||||
