Product Details:
|
| Name: | Tube Ice Making Machine | Capacity: | 1-60 Ton |
|---|---|---|---|
| Ice Shape: | Tube Ice | Compressor: | High Efficiency |
| Cooling System: | Water/Air Cooling | Ice Diameter: | 22mm,28mm,35mm |
| Application: | Industrial Or Commercial | Temperature Range: | -20℃~-5℃ |
| High Light: | 10t Ice Tube Maker Machine,35mm Diameter Ice Tube Maker Machine,Air Cooling Ice Tube Maker Machine |
||

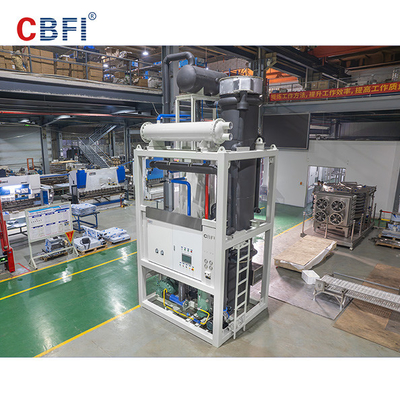

Commercial Industrial Ice Tube Maker Machine Tube Ice Machine Equipment 5t 10t 15t 20t 30t 60t Per Day/24 hours
Industrial tube ice makers are widely used in various industries where refrigeration is crucial, such as food processing, fishing, beverage production, and chemical manufacturing.
Characteristics of Large-Scale Commercial Tube Ice Makers
1. High Capacity: Industrial ice makers are designed to produce ice in large quantities, with capacities ranging from several hundred kilograms to several tons of ice per day depending on the model and application. This makes them ideal for commercial users who require a constant supply of ice.
2. High Efficiency: Modern industrial ice makers are highly efficient, with advanced refrigeration systems and production processes. These machines use less energy to produce more ice, making them a cost-effective solution for commercial users.
3. Durability and Reliability: Industrial ice makers are built to withstand the demands of continuous operation in harsh environments. They are engineered with high-quality materials and components, ensuring long service life and minimal downtime.
4. Flexibility and Customization: Commercial ice makers are available in a range of sizes, shapes, and configurations, allowing users to select the best machine based on their specific needs. They can also be customized with various options such as remote monitoring and control, automatic cleaning, and ice storage systems.
Advantages of Controlled Tube Ice Machines
Controlled ice machines are a type of industrial ice maker that offers additional features and benefits for commercial users. Here are some of the key advantages of controlled ice machines:
1. Consistent Quality: Controlled ice machines produce ice that is uniform in size and shape, ensuring consistent quality for commercial users. This is essential for process applications such as food production and chemical manufacturing.
2. Reduced Waste: Controlled ice machines produce ice that is precisely shaped and sized, reducing the risk of waste and ensuring that every piece of ice is used effectively.
3. Improved Safety: Controlled ice machines are designed with safety features that prevent ice from sticking together or overflowing from the machine, reducing the risk of accidents and injuries in the workplace.
4. Increased Efficiency: Controlled ice machines use advanced production processes that enable them to produce ice more efficiently than traditional machines. This reduces energy consumption and operating costs, making them a great choice for commercial users looking to save money and reduce their environmental footprint.
Product Parameters
|
Model
|
Daily output
(T/ 24 h)
|
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
|
TV10
|
1
|
4.1
|
0.25
|
1.1
|
1100*900*1780
|
900
|
|
|
TV20
|
2
|
7.44
|
0.25
|
1.5
|
1250*1000*1950
|
1200
|
|
|
TV30
|
3
|
10
|
0.55
|
1.5
|
1300*1100*2200
|
1500
|
|
|
TV50
|
5
|
19.9
|
0.55
|
2.5
|
1600*1400*2250
|
1800
|
|
|
Model
|
Daily output
(T/24 h) |
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
|
Main Host
|
Brine Tank
|
||||||
|
TV 100
|
10
|
27.9
|
1.5
|
4
|
1900*1600*1850
|
1200*1200*3390
|
3500
|
|
TV 100+
|
10
|
39.8
|
1.5
|
4
|
2400*1700*2000
|
1200*1200*3390
|
3700
|
|
TV 150
|
15
|
46.4
|
1.5
|
5
|
2700*2000*2200
|
1500*1200*4250
|
4250
|
|
TV 200
|
20
|
55.7
|
2.2
|
7.5
|
2800*2200*2500
|
1500*1200*4700
|
6500
|
|
TV 300
|
30
|
83.6
|
2.2
|
7.5
|
3100*2200*2500
|
1800*1500*5700
|
7200
|
|
TV 400
|
40
|
111.4
|
2.2
|
11
|
3900*2250*2500
|
2000*1500*6800
|
8300
|
|
TV 500
|
50
|
139.3
|
3.75
|
15
|
4500*2250*2500
|
2200*1800*7200
|
9500
|
|
1. Compressor brand: Bitzer /Franscold ; Refrigerant: R 22/ R 404 A; Cooling Method: water cooling / air cooling.
2.Power supply:voltage 380V/3P/50Hz(for non-standard voltage, unit configuration needs to be calculated separately ).
3.Operating conditions: T (water supply):20℃ , T (ambient): 32℃, T(condensing):40℃, T (evaporating):-12℃. 4.(Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) 5.(The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there any technical change. ) |
|||||||
