Product Details:
|
| Tube Ice Length: | 30~55mm | Ice Making Cycle: | 16~22 Mins |
|---|---|---|---|
| Tube Ice Diameter: | 22mm,28mm And 35mm | Material: | Stainless Steel |
| Name: | Ice Tube Machine | Key Selling Points: | High-accuracy |
| Compressor Brand: | Bitzer /Franscold | Cooling Way: | Water Cooling/Air Cooling |
| High Light: | Crystal Clear Texture Ice Tube Machine,Computerized Control Ice Tube Machine |
||

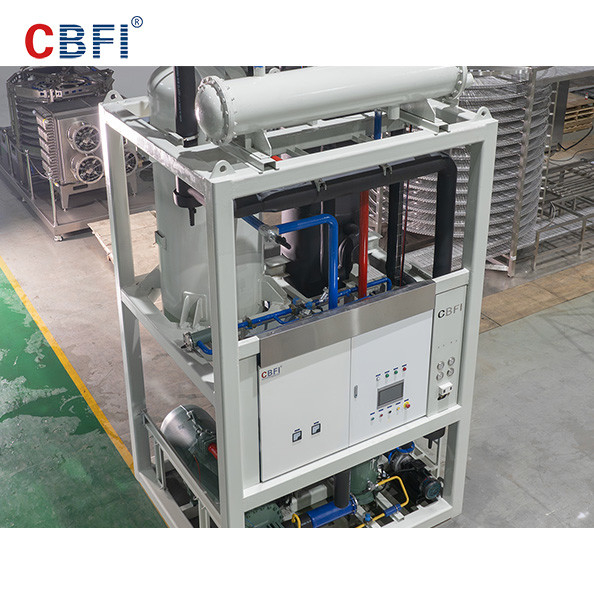

High-accuracy Ice Tube Machine Perfect for Tube Ice Production
Tube ice, also known as cylindrical ice, has become increasingly popular in recent years. Its unique shape and clear texture make it a popular choice for both commercial and personal use. With the increasing demand for tube ice, the importance of having a high-precision tube ice machine has become even more essential. In this article, we will discuss the advantages of using a high-precision tube ice machine to produce perfect tube ice.
High-Precision Tube Ice Machine
A high-precision tube ice machine is a device designed to produce tube ice with a high degree of accuracy. The machine uses a series of advanced technologies such as computerized controls, air-cooled condensers, and compact designs to produce tube ice with a crystal-clear texture. Unlike traditional ice machines that produce various irregular shapes of ice, a high-precision tube ice machine can produce uniformly shaped tube ice. This is made possible by the use of a special water distribution system that ensures that each tube is formed uniformly.
Advantages of Perfect Tube Ice Production
Crystal Clear Texture: A high-precision tube ice machine is designed to produce crystal clear tube ice. The water used in the machine is purified to ensure that the ice formed is hygienic and safe for consumption. Additionally, the machine is designed to eliminate impurities in the ice during the freezing process, which results in the formation of crystal clear tube ice that is visually appealing.
Efficiency: The machine uses advanced technologies that improve its efficiency. The air-cooled condensers used in the machine are designed to optimize its performance, resulting in faster ice production rates. This means that you can produce more ice in less time using a high-precision tube ice machine compared to a traditional ice machine.
Low Maintenance: High-precision tube ice machines require minimal maintenance. The machines are designed with advanced features such as automatic cleaning systems that make cleaning the machine easy and convenient. Additionally, the machine's components are made of high-quality materials that are designed to last, reducing the need for frequent repairs.
Customization: High-precision tube ice machines can be customized to suit the specific needs of the user. You can adjust the machine's settings to produce tube ice of different sizes and shapes to meet your specific needs. This means that you can produce tube ice that is tailored to your specific requirements.
Product Parameters
|
Model
|
Daily output
(T/ 24 h)
|
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
|
TV10
|
1
|
4.1
|
0.25
|
1.1
|
1100*900*1780
|
900
|
|
|
TV20
|
2
|
7.44
|
0.25
|
1.5
|
1250*1000*1950
|
1200
|
|
|
TV30
|
3
|
10
|
0.55
|
1.5
|
1300*1100*2200
|
1500
|
|
|
TV50
|
5
|
19.9
|
0.55
|
2.5
|
1600*1400*2250
|
1800
|
|
|
Model
|
Daily output
(T/24 h) |
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
|
Main Host
|
Brine Tank
|
||||||
|
TV 100
|
10
|
27.9
|
1.5
|
4
|
1900*1600*1850
|
1200*1200*3390
|
3500
|
|
TV 100+
|
10
|
39.8
|
1.5
|
4
|
2400*1700*2000
|
1200*1200*3390
|
3700
|
|
TV 150
|
15
|
46.4
|
1.5
|
5
|
2700*2000*2200
|
1500*1200*4250
|
4250
|
|
TV 200
|
20
|
55.7
|
2.2
|
7.5
|
2800*2200*2500
|
1500*1200*4700
|
6500
|
|
TV 300
|
30
|
83.6
|
2.2
|
7.5
|
3100*2200*2500
|
1800*1500*5700
|
7200
|
|
TV 400
|
40
|
111.4
|
2.2
|
11
|
3900*2250*2500
|
2000*1500*6800
|
8300
|
|
TV 500
|
50
|
139.3
|
3.75
|
15
|
4500*2250*2500
|
2200*1800*7200
|
9500
|
|
1. Compressor brand: Bitzer /Franscold ; Refrigerant: R 22/ R 404 A; Cooling Method: water cooling / air cooling.
2.Power supply:voltage 380V/3P/50Hz(for non-standard voltage, unit configuration needs to be calculated separately ).
3.Operating conditions: T (water supply):20℃ , T (ambient): 32℃, T(condensing):40℃, T (evaporating):-12℃. 4.(Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) 5.(The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there any technical change. ) |
|||||||
