Product Details:
|
| Refrigerant: | R22/R404a | Capacity: | 1-50 Ton |
|---|---|---|---|
| Key Selling Points: | High-accuracy | Material: | Stainless Steel |
| Ice Making Cycle: | 16~22 Mins | Cooling Way: | Water Cooling/Air Cooling |
| Name: | Ice Tube Machine | Compressor Type: | Semi-hermetic/Screw |
| High Light: | 1 Ton Ice Tube Machine,Automatic SS Ice Tube Machine |
||

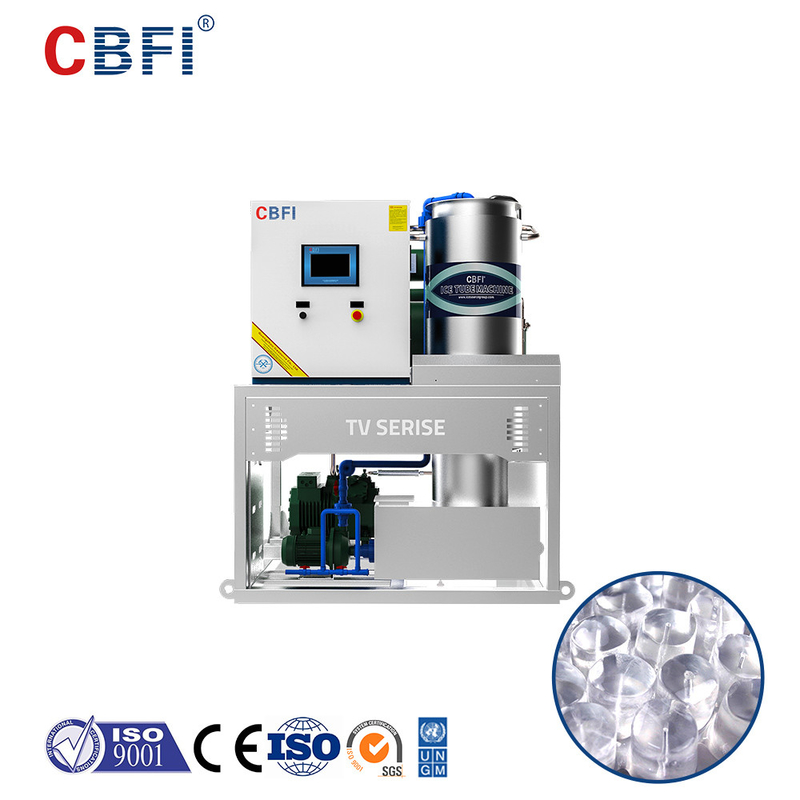

Ice Tube Machine Manufactured With Stainless Steel Industrial Automatic Tube Ice Factory
In recent years, the application of industrial automation control systems in the ice-making industry has become increasingly popular. The use of stainless steel pipe ice makers with advanced technology brings numerous benefits for a company, including improved production efficiency, reduced labor cost, consistent product quality, and increased safety.
Firstly, the use of industrial automation control systems in the ice-making industry greatly increases production efficiency. Precision automation technology minimizes human error and enhances the accuracy and consistency of the production process. Automated stainless steel pipe ice makers can automatically adjust the temperature, pressure, and other settings to ensure the optimal conditions for ice-making. Besides, automated ice makers can perform a series of complicated tasks, which traditional ice makers can not achieve. By using automation control systems, companies can make ice in a more timely and efficient manner, greatly reducing production time and costs.
Secondly, the adoption of industrial automation control systems in the ice-making industry has also led to reduced labor costs. Compared with traditional ice makers that require manual monitoring and operation, automated ice makers can operate for longer periods with minimal human intervention. Besides, the monitoring and maintenance functions can also be performed remotely, which reduces the number of staff required to manage the ice-making process. Additionally, automated ice makers can work continuously, which eliminates the need for shift changes, further reducing labor costs.
Thirdly, the application of industrial automation control systems in the ice-making industry ensures consistent product quality. Automated ice makers can perform precise control of the ice-making process, eliminating human error and inconsistency. The automated control of temperature, pressure, and other settings ensures optimal ice quality. The systematic control of production variables also eliminates the occurrence of defects in the final products. With consistent and high-quality ice production, companies can meet customer demand and optimize customer satisfaction.
Fourthly, safety concerns for human operators are considerably reduced in the use of automation control systems in the ice-making industry. Automated ice makers perform most of the production processes without the need for manual intervention. As a result, the risks associated with human error, such as physical injury, and exposure to hazardous substances are minimized. Automated equipment also includes advanced safety features, which can detect and prevent malfunctions, enabling operators to react immediately in case of an emergency.
Ice Tube Machine Product Parameters
|
Model
|
Daily output
(T/ 24 h)
|
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
|
TV10
|
1
|
4.1
|
0.25
|
1.1
|
1100*900*1780
|
900
|
|
|
TV20
|
2
|
7.44
|
0.25
|
1.5
|
1250*1000*1950
|
1200
|
|
|
TV30
|
3
|
10
|
0.55
|
1.5
|
1300*1100*2200
|
1500
|
|
|
TV50
|
5
|
19.9
|
0.55
|
2.5
|
1600*1400*2250
|
1800
|
|
|
Model
|
Daily output
(T/24 h) |
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
|
Main Host
|
Brine Tank
|
||||||
|
TV 100
|
10
|
27.9
|
1.5
|
4
|
1900*1600*1850
|
1200*1200*3390
|
3500
|
|
TV 100+
|
10
|
39.8
|
1.5
|
4
|
2400*1700*2000
|
1200*1200*3390
|
3700
|
|
TV 150
|
15
|
46.4
|
1.5
|
5
|
2700*2000*2200
|
1500*1200*4250
|
4250
|
|
TV 200
|
20
|
55.7
|
2.2
|
7.5
|
2800*2200*2500
|
1500*1200*4700
|
6500
|
|
TV 300
|
30
|
83.6
|
2.2
|
7.5
|
3100*2200*2500
|
1800*1500*5700
|
7200
|
|
TV 400
|
40
|
111.4
|
2.2
|
11
|
3900*2250*2500
|
2000*1500*6800
|
8300
|
|
TV 500
|
50
|
139.3
|
3.75
|
15
|
4500*2250*2500
|
2200*1800*7200
|
9500
|
|
1. Compressor brand: Bitzer /Franscold ; Refrigerant: R 22/ R 404 A; Cooling Method: water cooling / air cooling.
2. Power supply:voltage 380V/3P/50Hz(for non-standard voltage, unit configuration needs to be calculated separately ).
3. Operating conditions: T (water supply):20℃ , T (ambient): 32℃, T(condensing):40℃, T (evaporating):-12℃. 4. (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) 5. (The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there any technical change. ) |
|||||||
