Product Details:
|
| Cooling Way: | Water/Air Cooling | Capacity: | 1-50 Ton |
|---|---|---|---|

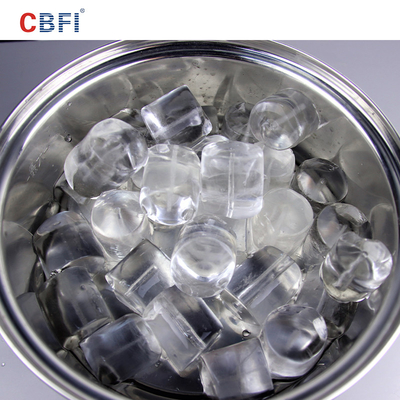

| Key Selling Points: | High-accuracy | Tube Ice Diameter: | 22mm,28mm And 35mm |
| Refrigerant: | R507/R404a | Compressor Brand: | Bitzer /Franscold |
| Material: | Stainless Steel | Name: | Ice Tube Machine |
| High Light: | SS R404a Ice Tube Machine,50 Ton Capacity Ice Tube Machine |
||

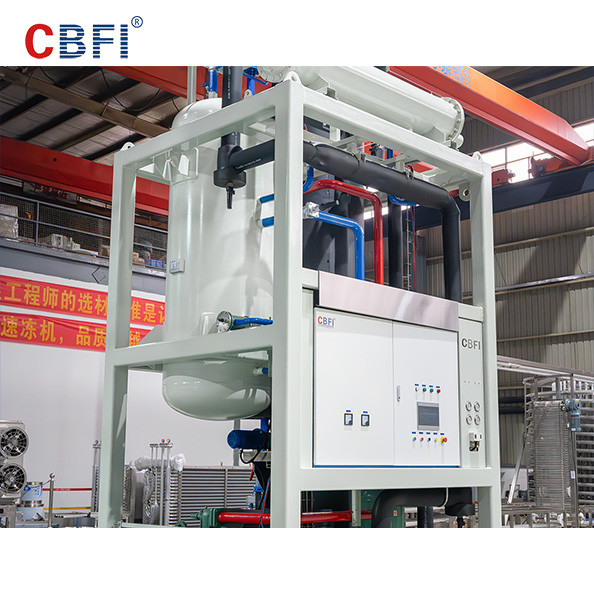

Reliable and Cost-effective Ice Tube Machine with 1-50 Ton Capacity
Tube ice machines are essential for many industrial and commercial applications where refrigeration is required to maintain process temperature or to preserve goods for longer periods. These machines produce ice inside pipes by circulating chilled brine or other refrigerants at low temperatures. The ice then forms a solid layer on the inside of the pipe and serves as a refrigerant that cools the media flowing through it.
Advantages
1. Energy efficiency: Tube ice machines are designed to use less energy compared to other refrigeration systems, mainly because they use natural refrigerants such as ammonia or carbon dioxide. These refrigerants have zero ozone depletion potential and are not as harmful to the environment as traditional refrigerants like chlorofluorocarbons (CFCs) or hydrochlorofluorocarbons (HCFCs).
2. High cooling efficiency: Tube ice machines produce ice with a large surface area, which makes them highly effective at exchanging heat with the media flowing through the pipes. This means that they can cool a wide range of products and processes efficiently.
3. Lower maintenance costs: Pipe ice machines require little maintenance due to their simple design and reliable components. Moreover, the use of natural refrigerants makes them less prone to failure, resulting in lower repair and replacement costs.
4. Flexibility: Tube ice machines can be used in various industrial and commercial applications, such as food processing, concrete cooling, pharmaceuticals, and petrochemicals. The wide range of sizes and capacities available makes them highly versatile, allowing them to meet the specific requirements of different applications.
5. Easy installation: Tube ice machines can be installed quickly and efficiently, as they usually come pre-assembled and fully tested before they leave the factory. This means that the installation time and costs are reduced, resulting in lower overall project costs.
6. Longevity: Tube ice machines are built to last and can operate for many years without requiring major repairs or replacements. The use of high-quality components and materials ensures their longevity and reliability.
Product Parameters
|
Model
|
Daily output
(T/ 24 h)
|
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
|
TV10
|
1
|
4.1
|
0.25
|
1.1
|
1100*900*1780
|
900
|
|
|
TV20
|
2
|
7.44
|
0.25
|
1.5
|
1250*1000*1950
|
1200
|
|
|
TV30
|
3
|
10
|
0.55
|
1.5
|
1300*1100*2200
|
1500
|
|
|
TV50
|
5
|
19.9
|
0.55
|
2.5
|
1600*1400*2250
|
1800
|
|
|
Model
|
Daily output
(T/24 h) |
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
|
Main Host
|
Brine Tank
|
||||||
|
TV 100
|
10
|
27.9
|
1.5
|
4
|
1900*1600*1850
|
1200*1200*3390
|
3500
|
|
TV 100+
|
10
|
39.8
|
1.5
|
4
|
2400*1700*2000
|
1200*1200*3390
|
3700
|
|
TV 150
|
15
|
46.4
|
1.5
|
5
|
2700*2000*2200
|
1500*1200*4250
|
4250
|
|
TV 200
|
20
|
55.7
|
2.2
|
7.5
|
2800*2200*2500
|
1500*1200*4700
|
6500
|
|
TV 300
|
30
|
83.6
|
2.2
|
7.5
|
3100*2200*2500
|
1800*1500*5700
|
7200
|
|
TV 400
|
40
|
111.4
|
2.2
|
11
|
3900*2250*2500
|
2000*1500*6800
|
8300
|
|
TV 500
|
50
|
139.3
|
3.75
|
15
|
4500*2250*2500
|
2200*1800*7200
|
9500
|
|
1. Compressor brand: Bitzer /Franscold ; Refrigerant: R 22/ R 404 A; Cooling Method: water cooling / air cooling.
2. Power supply:voltage 380V/3P/50Hz(for non-standard voltage, unit configuration needs to be calculated separately ).
3. Operating conditions: T (water supply):20℃ , T (ambient): 32℃, T(condensing):40℃, T (evaporating):-12℃. 4. (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) 5. (The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there any technical change. ) |
|||||||
